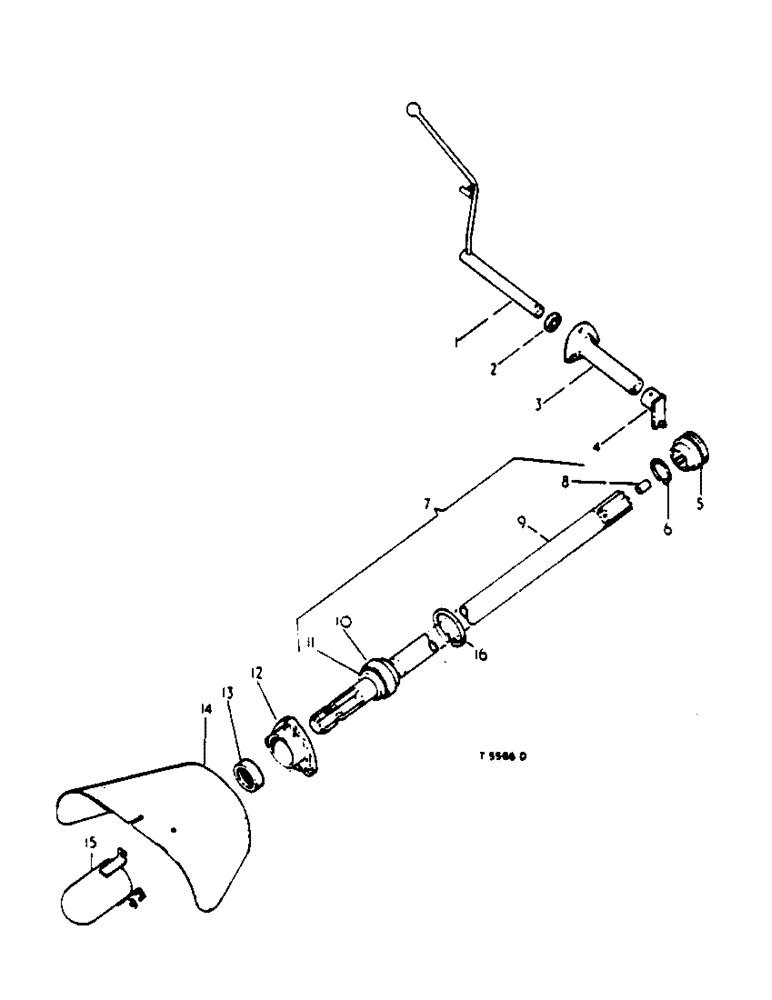

Запчасти Case IH 364 (6-32) - ATTACHMENTS, CONSTANT RUNNING P.T.O. ATTACHMENT, FULL FORWARD AND REVERSE ATTACHMENT, REAR P.T.O. Attachments

1

3120458R91

LEVER

shifter P.T.O.

1шт.

371602R1

KNOB

BALL, used w/cab or safety frame

1шт.

1

3119812R91

LEVER

shifter P.T.O. rear CPTE.

1шт.

21000R1

PIN,3/16" x 1 1/4", Coiled

1шт.

1

3064230R91

LEVER

shifter P.T.O. rear CPTE.

1шт.

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

groove, 3/16" x 1-1/4", order lever 3119812R91 pin 21000R1 and shifter 3063246R21

1шт.

2

704393R91

OIL SEAL

OIL SEAL, P.T.O. shifter bracket, opt.

1шт.

2

704394R91

SEAL

OIL SEAL, P.T.O. shifter bracket, opt.

1шт.

2

3066616R91

SEAL

OIL SEAL, P.T.O. shifter bracket, opt.

1шт.

3

704392R21

SUPPORT

BRACKET, P.T.O. rear clutch, CPTE., w/oil seal 704393R91

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

3063246R21

LEVER

SHIFTER, P.T.O. CPTE., on orders for R11 order R21 w/pin 21000R1

1шт.

5

751113R2

CLUTCH

rear, P.T.O. shaft

1шт.

6

751117R1

CLIP

CIRCLIP, P.T.O. shaft rear clutch, opt.

1шт.

6

3117077R1

CLIP

CIRCLIP, P.T.O. shaft rear clutch, opt.

1шт.

7

3073111R91

SHAFT

CPTE., P.T.O., comprising: (1) bearing (NSS), (1) bush 49594DA, (2) collar (NSS), (1) shaft (NSS)

1шт.

7

3109535R11

SHAFT

CPTE., rear P.T.O., 1050 R.P.M., w/bush 48594DA

1шт.

8

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, P.T.O. rear shaft

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT, P.T.O., order 3073111R91 (NSS)

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING, P.T.O. shaft, order 3073114R91 (NSS)

1шт.

11

NSS

NOT SOLD SEPARAT

COLLAR, P.T.O. shaft, order 3073114R91 (NSS)

1шт.

12

704387R12

RETAINER

w/oil seal 708580R91 CPTE., oil seal

1шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x 16 ga

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16" hex.

6шт.

13

708580R91

SEAL ASSY.

OIL SEAL P.T.O., opt.

1шт.

13

3065217R91

OIL SEAL

OIL SEAL P.T.O., opt.

1шт.

13

3068756R91

SEAL

OIL SEAL P.T.O., opt.

1шт.

14

704395R96

SHIELD

safety P.T.O. CPTE.

1шт.

3072353R1

STUD, P.T.O. safety shield

3шт.

15

NSS

NOT SOLD SEPARAT

CAP, safety P.T.O. CPTE. ) see attach

1шт.

NSS

NOT SOLD SEPARAT

WASHER special (

3шт.

16

704385R1

CLIP

CIRCLIP, internal 72 mm

1шт.

3073114R91

SERVICE KIT

PACKAGE, P.T.O. shaft bearing service

1шт.

703971R1

GASKET

P.T.O. oil seal retainer

1шт.

711312R1

GASKET

P.T.O. clutch rear bracket

1шт.
