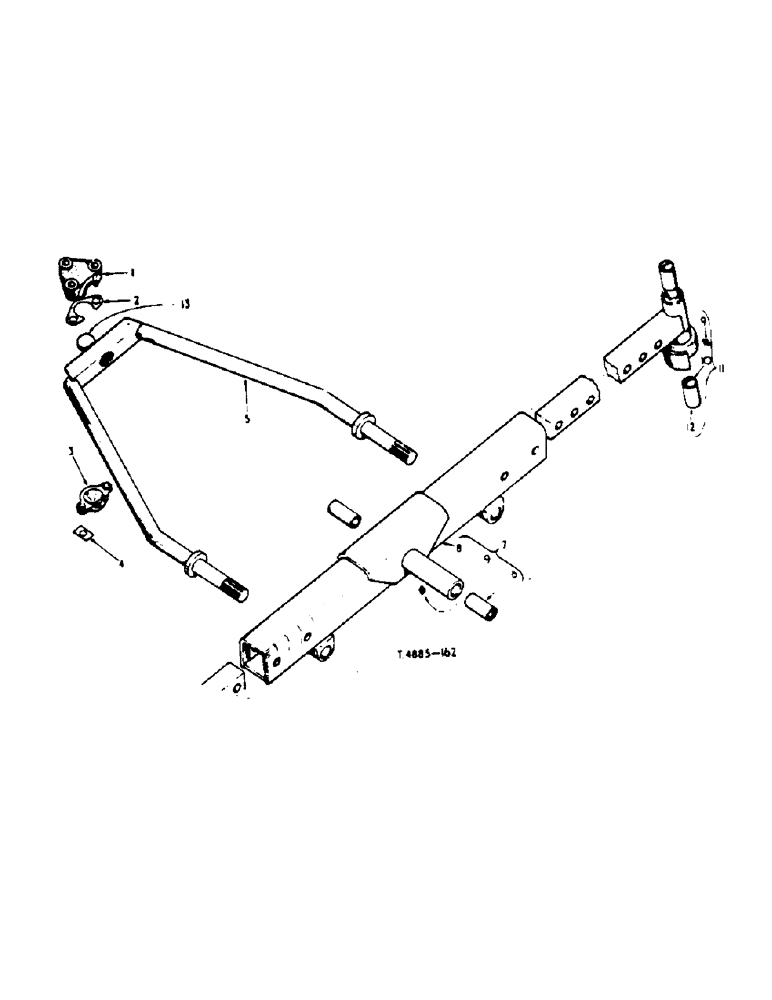

Запчасти Case IH 364 (6-21) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, FRONT AXLE, EXTENSION AND STAY ROD Attachments

1

3043920R1

CUP

SOCKET, stay rod, ball

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8" x 3" hex. hd., Course Threads

2шт.

2

842389R1

SHIM

stay rod socket cap

1шт.

3

3109613R1

CAP

stay rod ball socket

1шт.

4

842391R1

PLATE

lock, ball socket

3шт.

5

3105073R91

BAR

ROD, CPTE., stay

1шт.

427370

NUT

1-3/8" UNF hex.

2шт.

6

3043856R1

BUSHING

BUSH, pivot pin

2шт.

7

3043916R91

AXLE

w/two bush 3043856R1 and lubricator 109461 CPTE., front

1шт.

8

NSS

NOT SOLD SEPARAT

AXLE, front (NSS)

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

3шт.

10

751942R1

BUSHING

BUSH, steering knuckle pivot

4шт.

11

3043921R92

EXTENSION

w/two bush 751942R1 and lubricator 109461 CPTE., L.H. front axle, illustrated

1шт.

11

3043922R92

EXTENSION

w/two bush 751942R1 and lubricator 109461 CPTE., front axle

1шт.

12

NSS

NOT SOLD SEPARAT

EXTENSION, front axle L.H., illustrated (NSS)

1шт.

12

NSS

NOT SOLD SEPARAT

EXTENSION, front axle R.H. (NSS)

1шт.

3060918R1

BRACKET

front axle stay rod

2шт.

13

3071538R1

BALL

stay rod

1шт.
