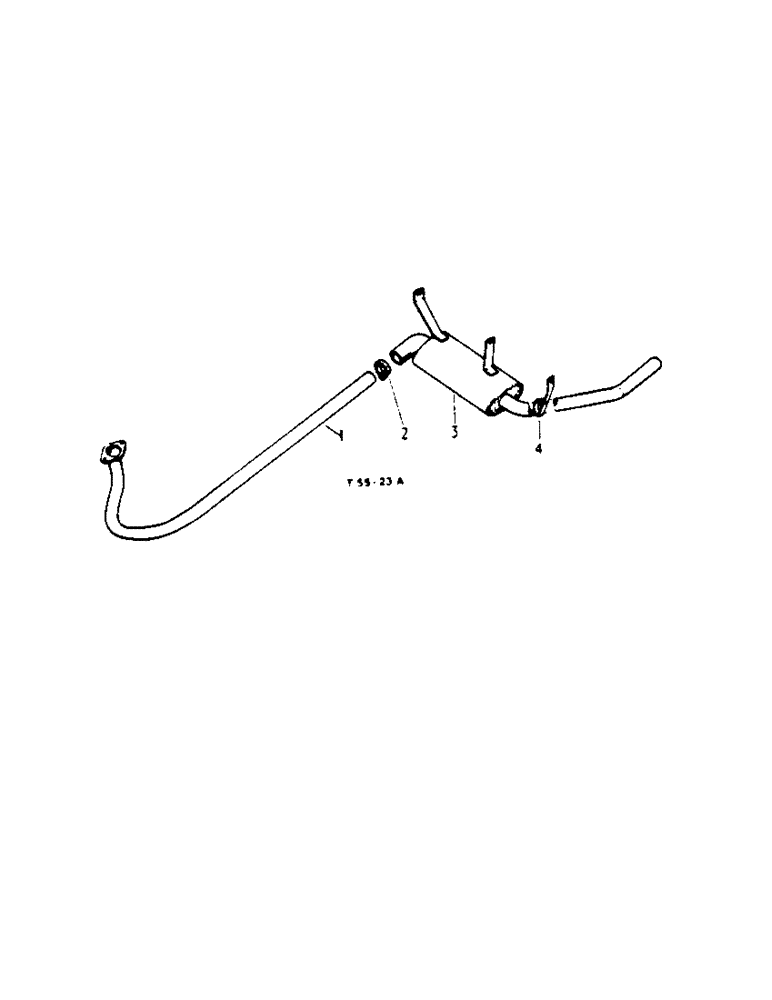

Запчасти Case IH 364 (4-35) - CHASSIS, DOWNSWEPT EXHAUST PIPE (12) - CHASSIS

1

3044044R95

PIPE

exhaust CPTE.

1шт.

Gasket for this pipe is 704613R2

1шт.

2

704621R1

CLAMP

exhaust pipe

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

3106834R1

MUFFLER

SILENCER, exhaust CPTE.

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

3068010R1

CLAMP

muffler outlet pipe support

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
