(6-20) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, STEERING KNUCKLES AND TIE ROD

Запчасти Case IH 364 (6-20) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, STEERING KNUCKLES AND TIE ROD Attachments

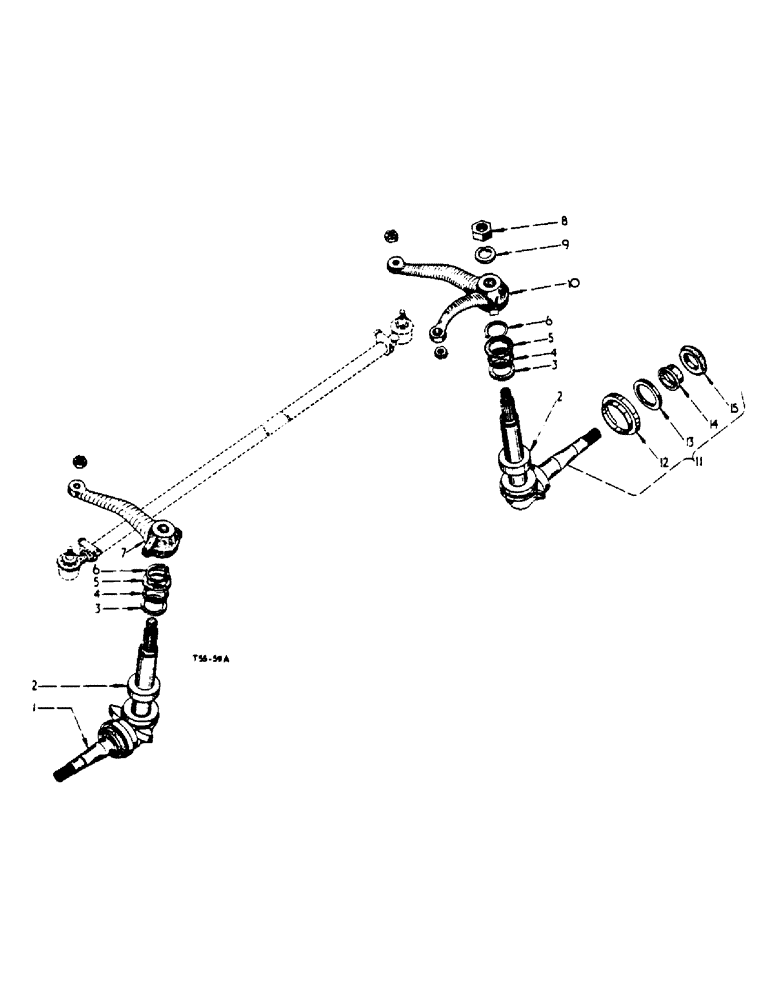

Схема запчастей Case IH 364 - (6-20) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, STEERING KNUCKLES AND TIE ROD Attachments
8
4
4
7
6
2
3
2
6
10
3
15
14
12
13
1
5
11
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3043928R93

STEERING KNUCKLE

KNUCKLE, CPTE., steering R.H., comprising: (1) oil seal 48539DA, (1) shield 48541D, (1) spacer 58270D, (1) washer 50259D

1шт.

2

392671R91

BEARING ASSY,1.639" ID x 2.869" OD x 0.8538"

thrust, steering knuckle

2шт.

3

3043931R1

WASHER

felt

1шт.

4

3043932R1

WASHER

steering knuckle pivot

1шт.

5

3043933R1

WASHER

steering knuckle pivot retaining

1шт.

6

3043934R1

CIRCLIP

41mm shaft size

1шт.

7

3043936R1

ARM

steering, R.H.

1шт.

8

3043937R1

NUT

1" UNF jam hex.

1шт.

9

121326

WASHER,1"

LOCK, 1"

1шт.

10

3043935R1

ARM

steering, L.H.

1шт.

11

3043927R93

STEERING KNUCKLE

KNUCKLE, CPTE., L.H. steering, comprising: (1) oil seal 48539DA, (1) shield 48541D, (1) spacer 50270D, (1) washer 50529D

1шт.

12

48541D

SHIELD

front wheel, dust

1шт.

13

50259D

WASHER

WASHER, front wheel, felt

1шт.

14

50270D

SPACER

front wheel, bearing

1шт.

15

48539DA

PACKING RING

OIL SEAL, front wheel

1шт.

3042600R91

RH DOOR LOCK

OIL SEAL, front wheel opt.

1шт.

704083R92

OIL SEAL

front wheel

1шт.
