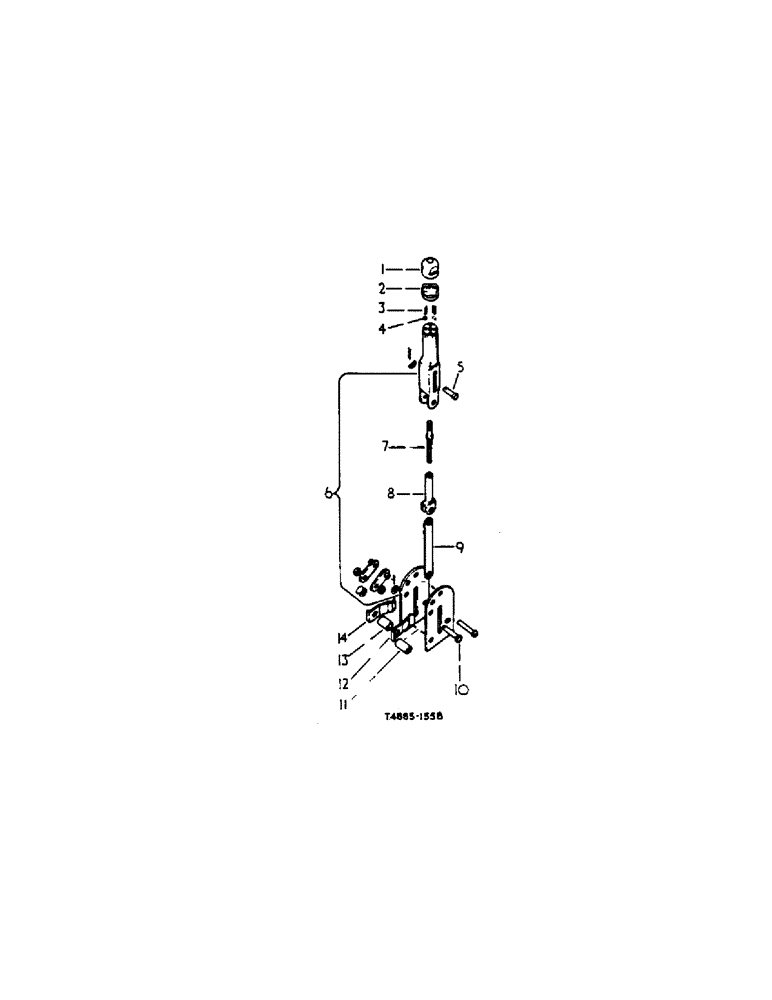

Запчасти Case IH 364 (4-28) - CHASSIS, HAND BRAKE, 6-1/2 INCH X 3-1/2 INCH BRAKES (12) - CHASSIS

3045931R93

LEVER

assy., handbrake, Includes: Ref. 1 - 11

1шт.

1

3045968R1

KNOB

outer half

1шт.

2

3045965R1

KNOB

inner half

1шт.

3

3045967R1

SPRING

2шт.

4

3045966R1

BALL

2шт.

5

3111364R1

PIN

short

1шт.

3045975R1

PIN

split

1шт.

3045971R1

WASHER

1шт.

6

3045964R91

LEVER, assy., sub

1шт.

7

NSS

NOT SOLD SEPARAT

(Not serviced)

1шт.

8

NSS

NOT SOLD SEPARAT

(Not serviced)

1шт.

9

3045969R1

LINK

1шт.

10

3045973R1

PIN

long, Includes: Ref. 11

1шт.

3045975R1

PIN

split

1шт.

3045971R1

WASHER

1шт.

11

3045976R1

SPACER

2шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

hex. hd. 3/8" x 4-1/2"

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

3106655R1

PLATE

spring L.H.

1шт.

13

3074950R1

SPACER

1шт.

14

3106656R1

PLATE

spring, R.H.

1шт.
