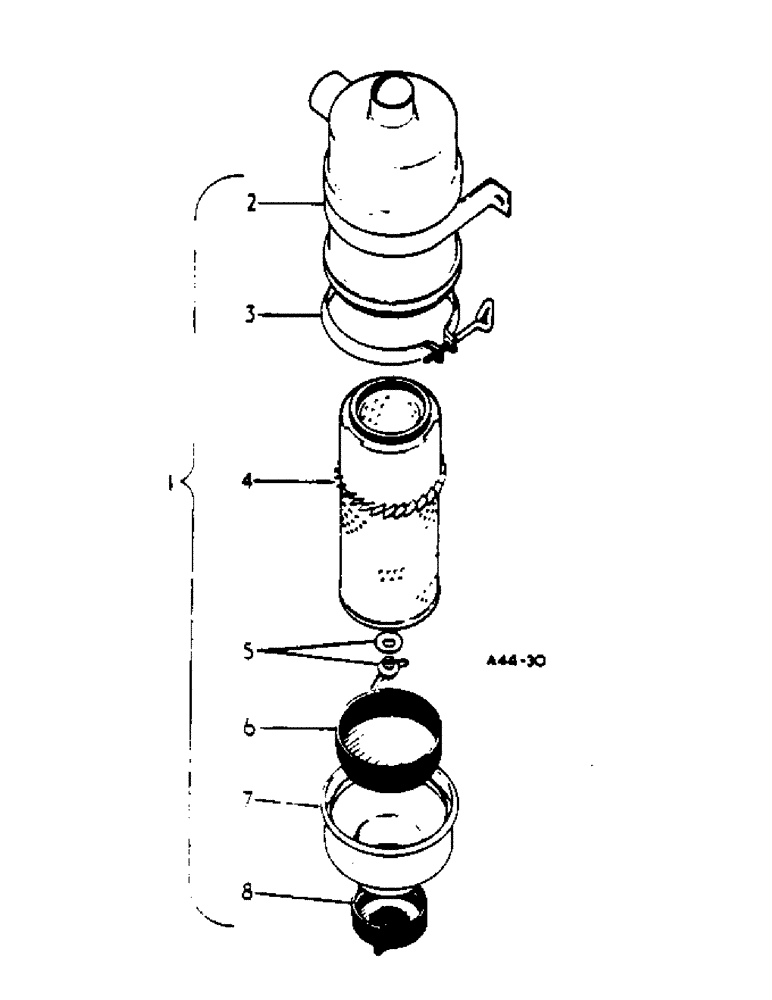

Запчасти Case IH 364 (4-20) - CHASSIS, AIR CLEANER, DRY TYPE (12) - CHASSIS

1

3111969R92

CLEANER ASSY.

CLEANER, air dry type, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, assy., order 3111969R92

1шт.

3

3066501R91

CLAMP

assy

1шт.

4

3066498R92

ELEMENT

assy

1шт.

5

3109737R91

SCREW

NUT AND GASKET, assy

1шт.

6

3066502R1

SKIRT

baffle

1шт.

7

3112651R91

CUP

assy.

1шт.

8

3066504R1

VALVE

vacuator

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
