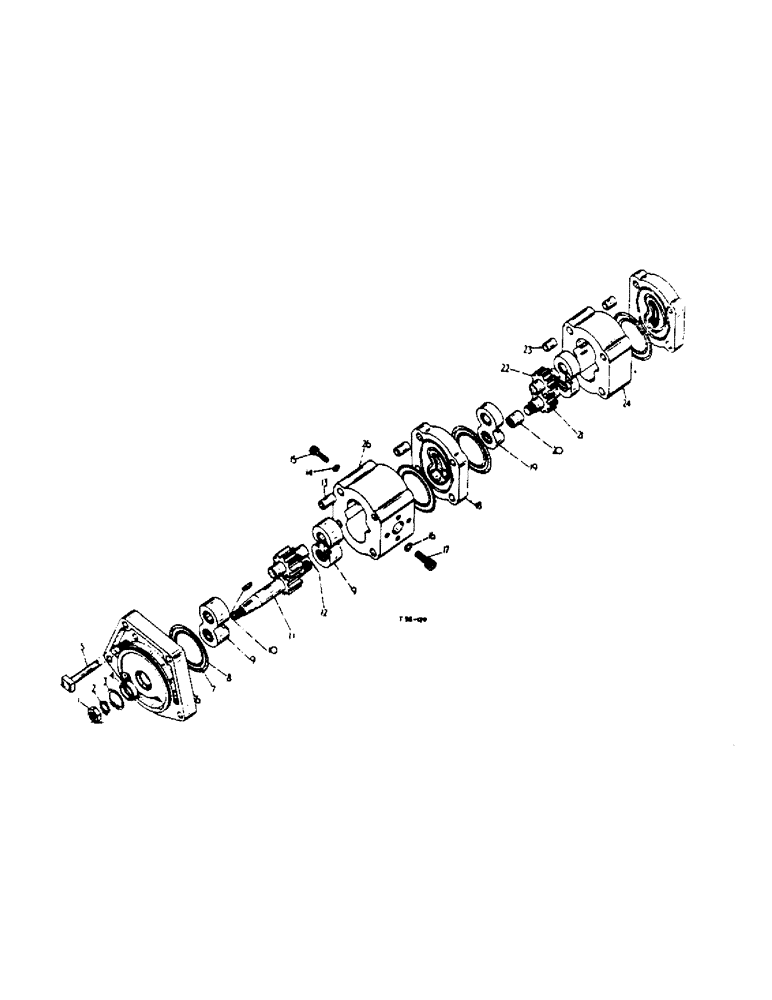

Запчасти Case IH 364 (6-19) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, DUAL PUMP Attachments

3063911R93

PUMP

w/"o" rings, CPTE., dual, Includes: Ref. 1 - 26

1шт.

1

3044638R1

NUT

lock

1шт.

2

706069R1

LOCK WASHER

WASHER, lock

1шт.

3

706066R1

RETAINER

CIRCLIP

1шт.

4

NSS

NOT SOLD SEPARAT

OIL SEAL

1шт.

Part of Seal Pack, P/N 3070055R91

1шт.

5

396404R1

BOLT

3/8" UNF x 5-1/2" sq. hd.

4шт.

6

708395R1

FLANGE

1шт.

6

3044630R1

FLANGE

opt.

1шт.

7

NSS

NOT SOLD SEPARAT

"O" RING

4шт.

Part of Seal Pack, P/N 3070055R91

1шт.

8

NSS

NOT SOLD SEPARAT

"O" RING

4шт.

Part of Seal Pack, P/N 3070055R91

1шт.

9

3066762R91

BEARING

2шт.

10

706067R1

KEY

1шт.

11

3064268R1

GEAR

drive, 9 teeth

1шт.

12

3064269R1

GEAR

driven, 9 teeth

1шт.

13

3064276R1

PIN

DOWEL

4шт.

14

706072R1

WASHER

spring

2шт.

15

3044642R1

SCREW

1/4" UNC

2шт.

16

706053R1

SPRING WASHER

spring

2шт.

17

706075R1

SCREW

5/16" x 3/4"

2шт.

18

3064270R1

PLATE

sandwich

1шт.

19

3066763R91

BEARING ASSY

2шт.

20

3064273R1

COUPLING, BREAK AWAY

COUPLING, muff

1шт.

21

3064271R1

GEAR

drive, 9 teeth

1шт.

22

3064272R1

GEAR

drive, 9 teeth

1шт.

23

3064277R1

PIN

DOWEL

4шт.

24

NSS

NOT SOLD SEPARAT

BODY

1шт.

25

3064274R1

COVER

1шт.

26

NSS

NOT SOLD SEPARAT

BODY

1шт.

214441

NUT

3/8 UNF

1шт.

3064282R1

WASHER

spring

4шт.

NSS

NOT SOLD SEPARAT

"O" RING, inlet

1шт.

Part of Seal Pack, P/N 3070055R91

1шт.

NSS

NOT SOLD SEPARAT

"O" RING, outlet

1шт.

Part of Seal Pack, P/N 3070055R91

1шт.

3064278R1

COVER

dust

1шт.

3064279R1

COVER

dust

1шт.

3064280R1

COVER

dust

1шт.

3070955R91

PACKAGE

PACK, seal, Replaces: 3070055R91, Includes: Ref. 4, 7, 8 and the inlet and outlet O-rings

1шт.

3070957R91

GEAR-SET

PACK, gear, rear pump

1шт.

3070956R91

GEAR-SET

PACK, gear, front pump

1шт.
