(1-17[A]) - DIESEL ENGINE, FUEL FILTER ASSEMBLY

Запчасти Case IH 354 (1-17[A]) - DIESEL ENGINE, FUEL FILTER ASSEMBLY (01) - ENGINE

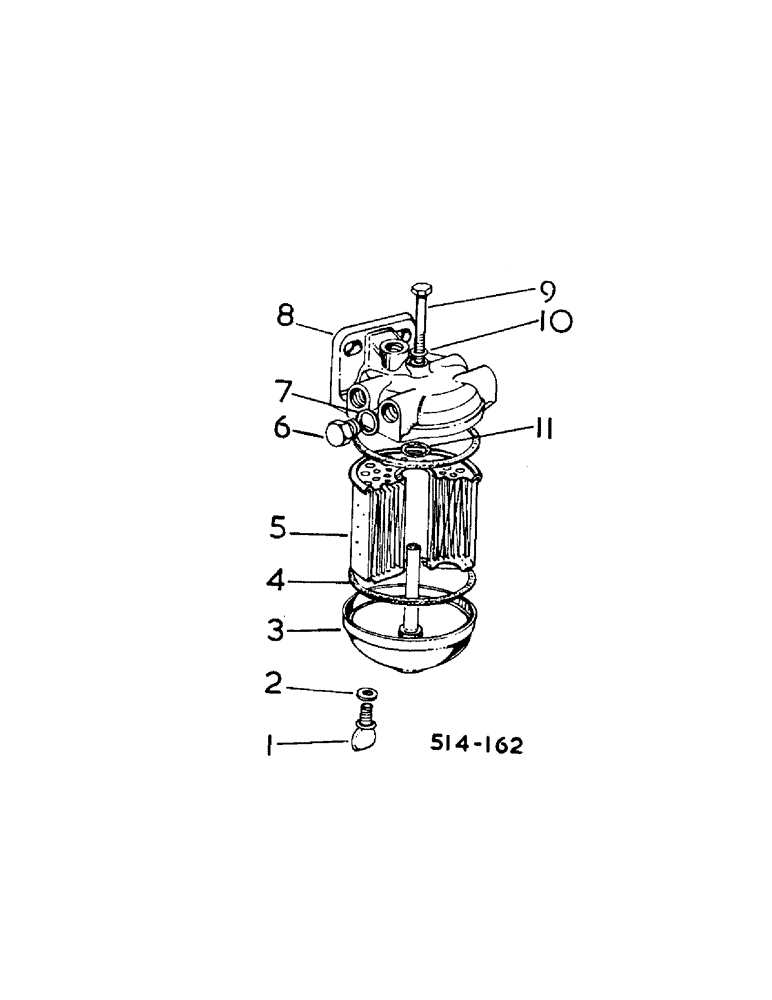

Схема запчастей Case IH 354 - (1-17[A]) - DIESEL ENGINE, FUEL FILTER ASSEMBLY (01) - ENGINE
8
11
3
6
9
5
1
7
10
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3117033R91

FILTER

ASSEMBLY, fuel

1шт.

1

NSS

NOT SOLD SEPARAT

Not serviced

1шт.

2

NSS

NOT SOLD SEPARAT

Not serviced

1шт.

3

3117037R91

BASE

filter, fuel filter

1шт.

4

3105001R1

SEAL

WASHER, sealing, fuel filter

3шт.

5

3044506R93

FILTER, FUEL

ELEMENT, package, fuel filter

1шт.

6

NSS

NOT SOLD SEPARAT

Not serviced

1шт.

7

NSS

NOT SOLD SEPARAT

Not serviced

1шт.

8

3117036R91

HEAD

FILTER, head assy., fuel

1шт.

9

3070771R2

BOLT

center, fuel filter

1шт.

10

NSS

NOT SOLD SEPARAT

Not serviced

1шт.

11

3044505R1

SEAL

RING, element seal, fuel filter

1шт.
