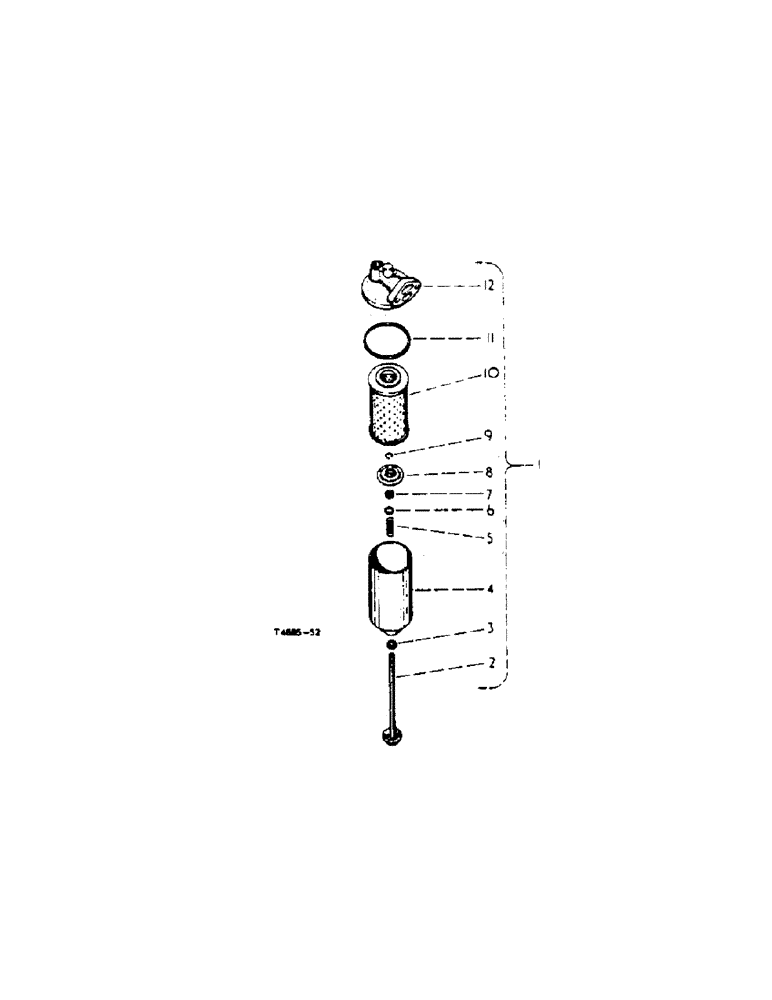

Запчасти Case IH 354 (1-16) - DIESEL ENGINE, LUBRICATING OIL FILTER (01) - ENGINE

1

3042420R92

FILTER

oil assy, Telcalemit, comprising: (1) bolt 3069976R91, (1) circlip 3065965R1, (1) container 3043289R1, (1) head 3069975R91, (1) package 3043283R92, (2) plate 3043315R1, (1) plate 3043293R91, (1) ring 3042423R1, (1) spring 3043291R1

1шт.

179846

LEVER

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3069976R91

BOLT

center assy.

1шт.

3

3042425R1

WASHER

center bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R91

LARGE PLATE

PLATE, pressure, assy.

1шт.

9

3065965R1

RING

CIRCLIP, center bolt (used w/circlip groove center bolt)

1шт.

10

376364R91

ELEMENT

PACKAGE, element service, optional

1шт.

10

3043283R92

INSERT

PACKAGE, element service w/plate 3043315R1, ring 3042423R1, and ring 707859R1 optional w/3110452R91

1шт.

3110452R91

ENGINE OIL FILTER

ELEMENT, assy. w/seal 3067728R91 and seal 707859R1

1шт.

3043315R1

PLATE

adaptor

1шт.

11

3042423R1

SEALING WASHER

RING, sealing

1шт.

12

3069975R91

HEAD

filter, assy

1шт.

706592R1

GASKET

lub. oil filter base

1шт.
