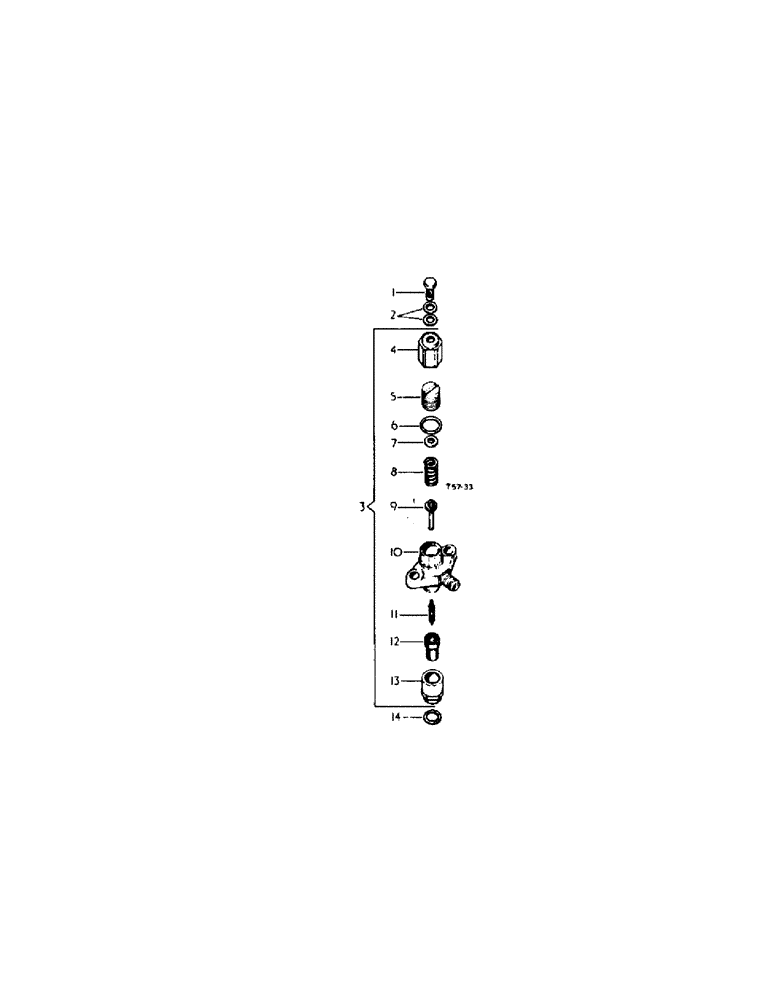

Запчасти Case IH 354 (1-11[A]) - DIESEL ENGINE, INJECTION NOZZLE AND HOLDER (01) - ENGINE

1

705498R1

STUD,M8 x 14mm

banjo

1шт.

2

703519R1

WASHER

banjo stud

1шт.

3

3040870R94

NOZZLE CAP

NOZZLE AND HOLDER, cpte, injection (CAV) (Set at 160 ATS), each comprising:

4шт.

4

311082R1

NUT, nozzle holder cap

1шт.

5

895579H1

NUT, spring cap

1шт.

6

895581H1

WASHER

1шт.

7

895578H1

WASHER

shim

1шт.

8

3066625R1

SPRING

1шт.

9

3105348R91

SPINDLE

assy.

1шт.

10

3105347R91

BODY

1шт.

11

3040871R91

NOZZLE CAP

NOZZLE, cpte, injection

1шт.

Pressure setting must be quoted when ordering nozzle

1шт.

12

3072556R92

HOLDER, INJECTOR NOZ

HOLDER, injection nozzle cpte, comprises items

1шт.

13

3105346R1

NUT

nozzle cap

1шт.

14

706291R1

WASHER

1шт.
