(1-10[A]) - DIESEL ENGINE, PRE-COMBUSTION CHAMBER AND HOLDER

Запчасти Case IH 354 (1-10[A]) - DIESEL ENGINE, PRE-COMBUSTION CHAMBER AND HOLDER (01) - ENGINE

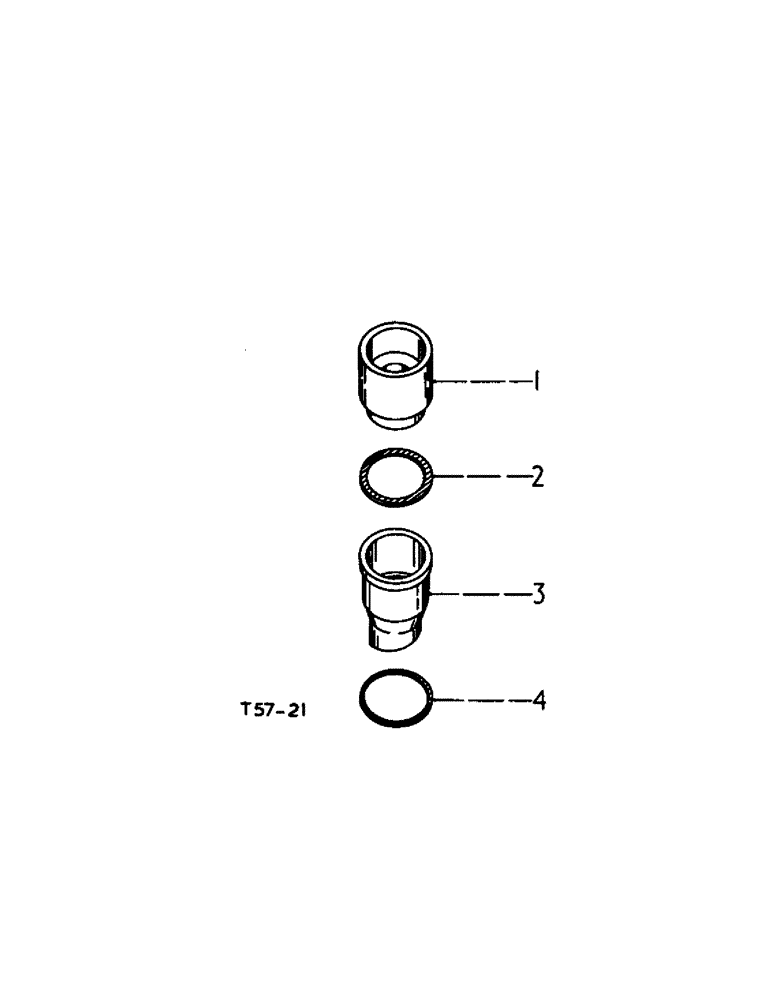

Схема запчастей Case IH 354 - (1-10[A]) - DIESEL ENGINE, PRE-COMBUSTION CHAMBER AND HOLDER (01) - ENGINE
3
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

708314R1

CHAMBER

HOLDER, pre-combustion chamber

4шт.

2

710382R3

GASKET,29mm ID x 35mm OD x 1.22mm Thk

pre-combustion chamber-upper

4шт.

3

3045523R1

CHAMBER

pre-combustion

4шт.

4

710383R1

GASKET

pre-combustion chamber-lower

4шт.
