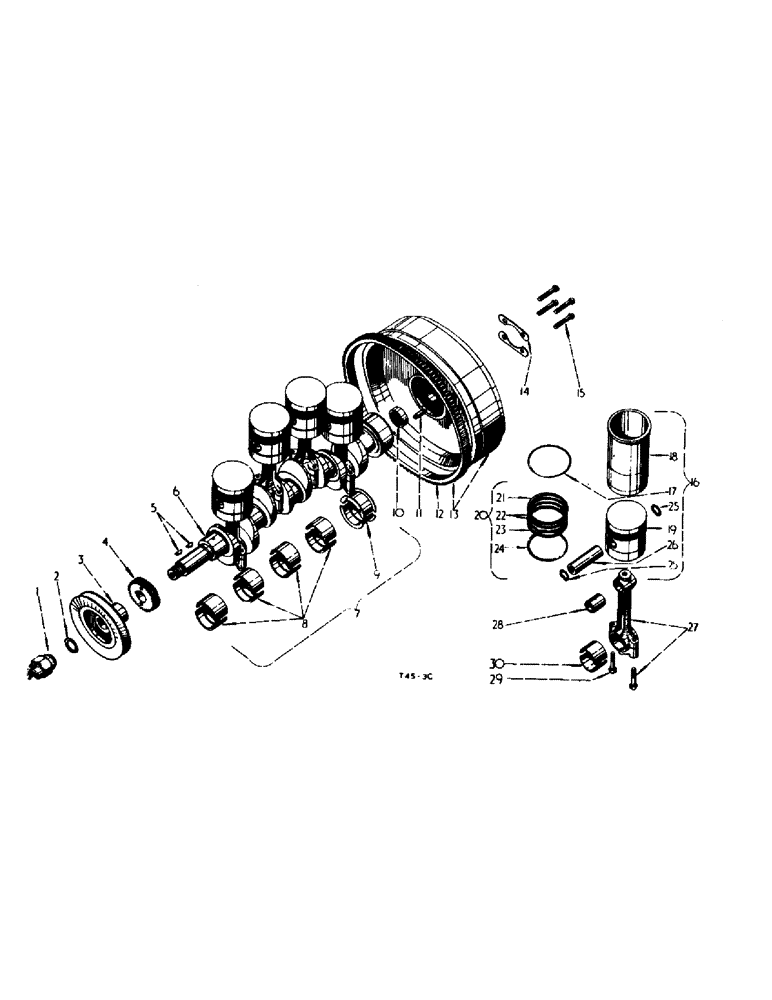

Запчасти Case IH 354 (1-07) - DIESEL ENGINE, CRANKSHAFT, CONNECTING RODS, PISTONS AND FLYWHEEL (01) - ENGINE

3046833R1

NUT

fan drive pulley (USA Market)

1шт.

1

NLS

NO LONGER SERVICED

NUT, starting crank

1шт.

2

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

3046391R2

PULLEY

fan drive (USA Market)

1шт.

3

708286R1

PULLEY

fan drive

1шт.

4

703865R1

GEAR

PINION, crankshaft, 33 teeth

1шт.

5

218211

DRIVING SPROCKET

Woodruff, No. 91, 1/4" x 3/4"

2шт.

6

751303R51

CRANKSHAFT

cpte, std w/two pin 24550D U.S. A. only

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT, cpte, standard w/two pin 24550D and bearing 708909R93 order 3110995R91J

1шт.

6

NSS

NOT SOLD SEPARAT

CRANKSHAFT, cpte, .015" undersize, w/two pin 24550D and bearing 708909R93J order 3067471R91

1шт.

6

NSS

NOT SOLD SEPARAT

CRANKSHAFT, cpte, .030" undersize, w/two pin 24550D and bearing 708909R93 order 3110996R91

1шт.

7

708912R91

CRANKSHAFT BEARING

SET, crankshaft, standard comprising: (1) bearing 708910R91, (4) bearing 3064523R11

1шт.

7

708914R91

CRANKSHAFT BEARING

SET, crankshaft, bearing, .015" undersize, comprising: (1) bearing 708915R91, (4) bearing 3064525R11

1шт.

7

708913R91

CRANKSHAFT BEARING

SET, crankshaft bearing, .030" undersize, comprising: (1) bearing 708911R91, (4) bearing 3064524R11

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING, crankshaft, front and center, two halves standard

4шт.

8

3064525R11

BEARING LINER

BEARING, crankshaft, front and center, two halves .015" undersize

1шт.

8

3064524R11

BEARING LINER

BEARING, crankshaft, front and center, two halves .030" undersize

1шт.

9

708910R91

BEARING ASSY

BEARING, crankshaft, rear, two halves standard

1шт.

9

708915R91

BEARING ASSY

BEARING, crankshaft, rear, two halves, .015" undersize

1шт.

9

708911R91

BEARING ASSY

BEARING, crankshaft, rear, two halves, .030" undersize

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

BEARING, clutch pilot (Fischer), optional

1шт.

10

751846R93

BALL BEARING

clutch pilot (R & M), optional

1шт.

10

751847R93

BALL BEARING

clutch pilot (S.K.F.), optional

1шт.

10

751848R94

BALL BEARING

BEARING, clutch pilot (Hoffman), optional

1шт.

11

24550D

PIN

BEARING, dowel, flywheel

2шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3040913R11

FLYWHEEL

w/gear 704436R1 and two pin 141215 (standard)

1шт.

141215

PIN,5/16" x 1/2"

dowel 5/16" x 1/2"

2шт.

14

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

751603R92

SLEEVE CYLINDER

SLEEVES AND PISTONS, set, w/four sleeves and pistons 751604R92

1шт.

16

751604R92

PISTON & RINGS KIT

PISTON, cpte, w/sleeve, comprising: (1) piston 751605R92, (1) ring 704100R1, (1) sleeve 704092R1

4шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, packing, cylinder sleeve

4шт.

18

704092R1

LINER, ENGINE CYLIND

SLEEVE, cylinder

4шт.

751605R92

PISTON

assy, comprising: (1) pin 704094R1, (1) piston 704099R2, (2) retainer 704095R1, (1) ring (NSS), (2) ring (NSS), (1) ring (NSS), (1) ring (NSS)

4шт.

19

704099R2

PISTON ASSY

PISTON, without rings, optional

4шт.

19

3048523R1

PISTON, without rings, optional

4шт.

20

3114781R91

RING, SET

SET, piston ring, comprising: (1) ring (NSS), (2) ring (NSS), (1) ring (NSS), (1) ring (NSS)

1шт.

21

NSS

NOT SOLD SEPARAT

RING, piston, compression, top, optional

4шт.

22

NSS

NOT SOLD SEPARAT

RING, piston, compression, optional

8шт.

23

NSS

NOT SOLD SEPARAT

RING, piston, oil control, top, optional

4шт.

24

NSS

NOT SOLD SEPARAT

RING, piston, oil control, optional

4шт.

25

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

26

704094R1

LARGE PIN

PIN, piston

4шт.

26

706411R1

PIN

piston, .005" oversize

1шт.

27

3061216R91

CONNECTING ROD

SET, connecting rod w/four rod 3061214R91

1шт.

27

3061214R91

PITMAN ASSY.

ROD, assy, connecting, comprising: (2) bolt 3043216R1, (1) bush 711045R1, (1) cap (NSS), (1) rod (NSS)

4шт.

28

3043611R1

BUSHING

BUSH, piston pin, optional

4шт.

28

711045R1

BUSHING

BUSH, piston pin, optional

4шт.

29

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

30

3070536R11

BEARING

connecting rod, two halves standard

4шт.

30

3070538R11

JOURNAL

BEARING, connecting rod, two halves .015" undersize

1шт.

30

3070537R11

BEARING

connecting rod, two halves .030" undersize

1шт.

3070546R91

BEARING LINER

SET, connecting rod bearing, standard w/four bearing 3070536R11

1шт.

3070539R91

BEARING LINER

SET, connecting rod bearing .015" undersize w/four bearing 3070538R11

1шт.

3070547R91

CRANKSHAFT BEARING

SET, connecting rod bearing .030" undersize w/four bearing 3070537R11

1шт.

3110995R91

CRANKSHAFT

PACKAGE, service, crankshaft, standard, comprising: (1) crankshaft (NSS), (1) set 708912R91, (1) set 3070546R91

1шт.

3067471R91

PACKAGE, service, crankshaft .015" undersize, comprising: (1) crankshaft (NSS), (1) set 708914R91, (1) set 3070539R91

1шт.

3110996R91

PACKAGE

service crankshaft .030" undersize, comprising: (1) crankshaft (NSS), (1) set 708913R91, (1) set 3070547R91

1шт.
