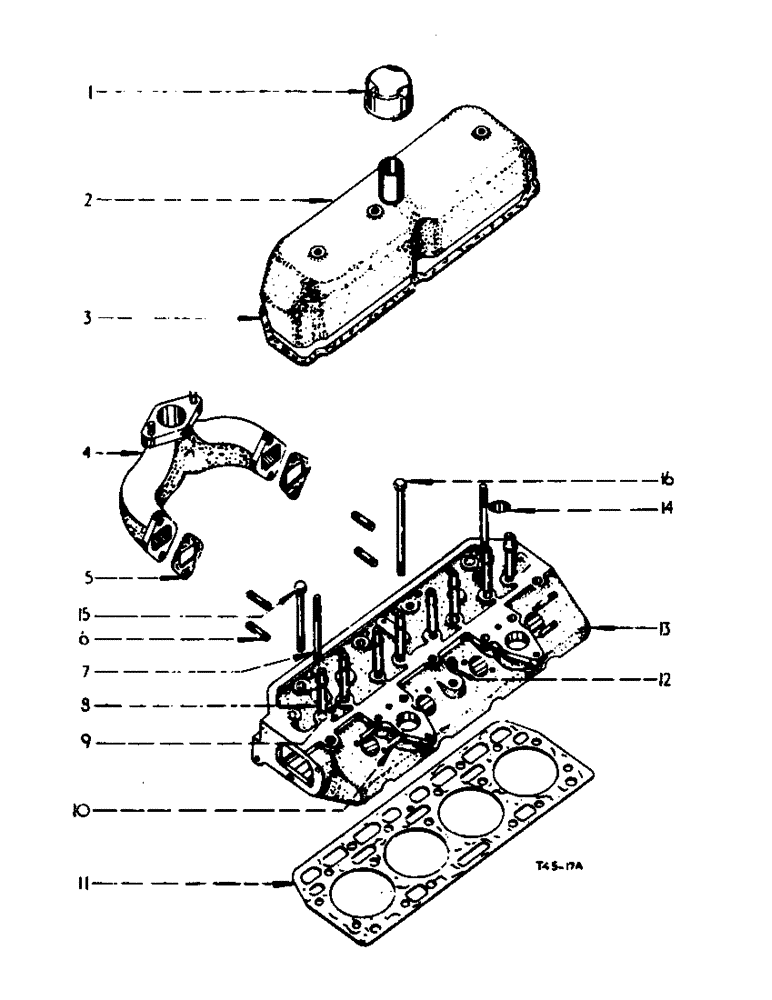

Запчасти Case IH 354 (1-03) - DIESEL ENGINE, CYLINDER HEAD AND EXHAUST MANIFOLD (01) - ENGINE

1

364899R91

BREATHER

CAP, assy cyl hd. breather, optional

1шт.

1

3049701R91

FILTER, ELEMENT

BREATHER, cyl-hd., (See detail list)

1шт.

2

3112012R11

COVER

valve housing, cpte.

1шт.

102635

NUT,3/8"-16, G5

2шт.

3

3069767R1

GASKET

valve cover

1шт.

4

3042719R11

MANIFOLD

exhaust cpte. w/two studs 703874R1

1шт.

280136

NUT,3/8"-16, G8

Exhaust manifold stud 3/8"-16, G8

4шт.

703874R1

STUD

exhaust manifold

2шт.

5

704165R2

MANIFOLD GASKET

exhaust manifold

2шт.

6

703874R1

STUD

exhaust manifold

4шт.

7

703875R1

STUD

rocker shaft end bracket

2шт.

8

704456R2

VALVE GUIDE

GUIDE, valve stem, exhaust

4шт.

9

704455R1

VALVE GUIDE

GUIDE, valve stem intake

4шт.

10

703876R2

STUD

inj. nozzle holder

8шт.

11

703883R6

GASKET

cyl-hd.

1шт.

3049382R1

GROMMET

cyl-hd.

1шт.

12

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, Malleable iron, (Optional) Sq Hd, 1/2"-14 NPTF

1шт.

12

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe, sq hd. cast iron 1/2", optional

1шт.

13

3040360R95

HEAD

cyl. assy., with valves comprising: (8) cup 704446R1, (1) head 3043824R12, (16) lock 704443R1, (8) spring 710347R2, (4) valve 3040361R1, (4) valve 3043826R1

1шт.

13

3043824R12

CYLINDER HEAD

HEAD, cyl. assy., less valves comprising: (4) guide 704455R1, (4) guide 704456R2, (1) plug 172558, (4) stud 703874R1, (8) stud 703876R2, (2) stud 703875R1

1шт.

14

172558

PLUG,Exp, 1 1/4"

expansion

1шт.

15

708331R1

BOLT

BOLT, cyl-hd., short

15шт.

16

708332R1

BOLT,Cyl Hd

cyl-hd., long

1шт.

63116D

WASHER

cyl-hd., bolt

16шт.

3065070R1

ELECTRICAL WIRE

CABLE, earth to No. 1 glow plug

1шт.

708127R2

ELECTRICAL WIRE

CABLE, No. 1 to 2 glow plug

1шт.

708128R2

ELECTRICAL WIRE

CABLE, No. 2 to 3 glow plug

1шт.

708127R2

ELECTRICAL WIRE

CABLE, No. 3 to 4 glow plug

1шт.

377206R92

GLOW PLUG

PLUG, assy glow, optional

4шт.

710348R1

GLOW PLUG

PLUG, glow, optional

4шт.

710474R1

ISOLATOR

INSULATOR, glow plug

4шт.

3047624R1

NUT

terminal

1шт.
