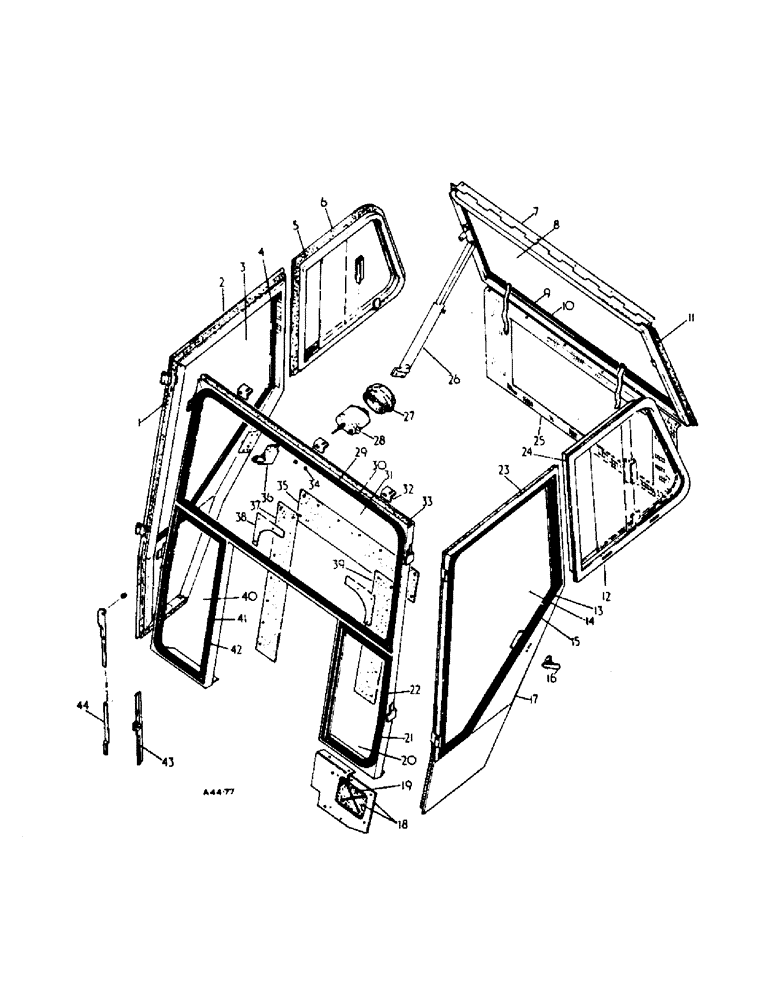

Запчасти Case IH 354 (6-77) - ATTACHMENTS, SAFETY CAB Attachments

3112886R93

CAB, CPTE. safety (w/safety frame 3113261R92 and roof panel 3113575R91)

1шт.

3114014R92

DOOR

assy., CPTE. R.H.

1шт.

1

3114811R1

STRIP

SEAL, door bottom R.H. 9.5

1шт.

3114810R1

STRIP

SEAL, door upper 25.7

1шт.

3113570R1

SEAL

door front 580.0

1шт.

3114812R1

STRIP

SEAL, door rear 64.8

1шт.

2

3114016R1

FRAME

door R.H. CPTE.

1шт.

3

3114017R1

GLASS

1шт.

4

3114019R1

MOLDING

SEAL, door

1шт.

3114806R1

STRIP

door bottom 4.8

1шт.

3113573R1

STRIP

door angle 24.7

1шт.

3114805R1

WEATHERSTRIP

door angle 27.4

1шт.

3114804R1

WEATHERSTRIP

door top and front 61.8

1шт.

5

3113543R1

SEAL

sliding window 67.0

1шт.

3113544R1

SEAL

sliding window 26.12

1шт.

6

3113542R1

WINDOW, sliding R.H. CPTE.

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, No. 8.-32 pan hd. cross recess

4шт.

7

3112493R91

PANEL

assy, rear top w/glass, moulding, seal and strip

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16" x 5/8" hex hd.

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

NLS

NO LONGER SERVICED

5/16" plain

6шт.

7

3112494R1

PANEL

CPTE. rear top

1шт.

8

3112495R1

GLASS

1шт.

9

3112496R1

SEAL

MOULDING, rubber

1шт.

10

3113585R1

STRIP

rear window bottom

1шт.

10

3113584R1

STRIP

top and sides

1шт.

11

3112498R1

SEAL, GLASS

1шт.

12

3113541R1

WINDOW

sliding L.H. CPTE.

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, No. 8-32 pan hd. cross recess

4шт.

13

3114806R1

STRIP

door bottom 4.8

1шт.

3113573R1

STRIP

door angle 24.7

1шт.

3114805R1

WEATHERSTRIP

door angle 27.4

1шт.

3114804R1

WEATHERSTRIP

door top and front 61.8

1шт.

14

3114017R1

GLASS

1шт.

15

3114018R1

MOLDING

SEAL, door

1шт.

16

3113466R91

HANDLE

outside door

2шт.

3112458R1

SCREW

2BA x 5/8" c/s hd.

4шт.

3112459R1

NUT

2BA

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

17

3114015R1

FRAME

door L.H. CPTE.

1шт.

18

3114008R91

PLATE

assy., nearside front lower

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex hd. 1/4" x 5/8"

3шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

3069906R1

RIVET

pop 1/8"

2шт.

3114004R1

WASHER

2шт.

446179

WASHER,#12

plain 1/4"

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

3114795R1

WASHER

safety cab mounting

1шт.

19

3114011R1

RUBBER

GAITER, rubber

1шт.

3114796R91

GLASS

WINDSCREEN, assy., front CPTE.

1шт.

20

3114799R1

GLASS

windscreen L.H.

1шт.

21

3114800R1

SEAL

windscreen L.H.

1шт.

22

3113563R1

STRIP

lower screen top 10.5

1шт.

3114802R1

STRIP

lower screen inside 22.9

1шт.

3114801R1

STRIP

lower screen ouside and bottom L.H. 31.8

1шт.

23

3114808R1

SEAL

door bottom L.H. 11.6

1шт.

3114810R1

STRIP

SEAL, door upper 25.7

1шт.

3114807R1

STRIP

SEAL, door front L.H. 53.0

1шт.

3114809R1

STRIP

SEAL, door rear L.H. 59.1

1шт.

24

3113543R1

SEAL

sliding window 67.0

1шт.

24

3113544R1

SEAL

sliding window 26.12

1шт.

25

3114051R1

CURTAIN

CPTE. rear

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4" x 1/2" hex hd.

5шт.

26

3112509R91

SUPPORT

rear window assy.

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4" x 3/4" hex hd. cap

6шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4" hex lock

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120392

WASHER,1/4", SAE

.281" x .625" x .051" plain

2шт.

3114070R1

SCREW

5/16" x 1" thumb

2шт.

27

3113075R1

GUARD

rubber head

1шт.

28

3113074R91

ELECTRIC MOTOR

MOTOR, CPTE. windscreen wiper

1шт.

29

3113556R1

STRIP

windscreen top and sides 93.4

1шт.

3113557R1

STRIP

windscreen bottom 45.4

1шт.

30

3113555R1

SEAL

upper

1шт.

31

3113554R1

GLASS

upper

1шт.

32

3113566R1

ANGLE

windscreen mounting

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344" x .688" x .051" plain

6шт.

33

3112425R1

SEAL

windscreen top

1шт.

34

3112426R1

GROMMET

rubber

2шт.

35

3113564R1

FOAM INSULATION

SHEET, horizontal

1шт.

36

3112461R91

HANDLE

LOCK AND HANDLE, inside door R.H.

1шт.

3112460R91

HANDLE

LOCK AND HANDLE, inside door L.H.

1шт.

178716

SCREW,#10 - 32 x 3/8"

No. 10-32 x 3/8" top

8шт.

37

3113565R1

FOAM INSULATION

SHEET, vertical R.H.

1шт.

38

3113552R1

PLATE

filler

2шт.

23993R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, No. 10-16 x 1/2" hex sltd. hd. tap

18шт.

120391

WASHER,#10

.219" x .50" x .036" plain

18шт.

39

3114803R1

FOAM INSULATION

SHEET, vertical L.H.

1шт.

40

3113558R1

GLASS

lower

1шт.

41

3113563R1

STRIP

lower screen top 10.5

1шт.

3113562R1

STRIP

lower screen inside 27.8

1шт.

3113561R1

STRIP

lower screen outside and bottom 36.6

1шт.

42

3113560R1

SEAL

lower R.H.

1шт.

43

3113077R1

BLADE

wiper

1шт.

44

3113076R91

ARM

wiper

1шт.

3113436R91

SUPPORT

CABLE, assy. wiper

1шт.

3114013R92

DOOR

assy. CPTE. L.H.

1шт.

707458R1

PLUG, wiper blanking

2шт.

3113438R1

GROMMET, wiper entry cab

2шт.

1092596R1

DECAL

PRODUCT GRAPHIC, cab warning

1шт.

1092550R1

PRODUCT GRAPHIC

cab warning

1шт.

3115815R91

PACKAGE, safety frame cladding (For use w/tractors fitted w/safety frame only tobe converted to a complete cab)

1шт.

NSS

NOT SOLD SEPARAT

PACKAGE, safety cab conversions (for machines fitted w/power steering) (Factory application), consists of:

1шт.

3115228R1

PLATE, CPTE. floor L.H.

1шт.

3115229R1

PLATE, assy. near side front lower

1шт.
