Запчасти Case IH 354 (6-62) - ATTACHMENTS, HEAVY DUTY BACK END ATTACHMENT Attachments

NSS

NOT SOLD SEPARAT

ATTACHMENT, heavy duty back end (Factory application)

1шт.

3069762R11

HOUSING

AXLE, rear, CPTE., w/eight bolts 3047576R2

2шт.

973550R91

BEARING ASSY,2.3622" ID x 5.1181" OD x 1.2205"

ball, rear axle, Opt.

2шт.

3069356R91

BEARING, BALL

rear axle, Opt.

2шт.

3069357R91

BEARING, BALL

rear axle, Opt.

2шт.

3069358R91

BEARING

ball, rear axle, Opt.

2шт.

3069359R91

BEARING, BALL

rear axle, Opt.

2шт.

3106877R91

BEARING

ball, rear axle, Opt.

2шт.

3047576R2

BOLT

rear wheel hub

16шт.

3073799R92

CASE

trans. CPTE., comprising:

1шт.

3072136R1

BUSHING

BUSH, reverse idler gear, front

1шт.

711272R2

BUSHING

BUSH, reverse idler gear, rear

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication 1/8" x 90 deg.

2шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, sq. hd. pipe, 1/2", Opt.

3шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional Sq Hd, 1/2"-14 NPTF

3шт.

172575

PLUG,Exp, 1 9/16"

1-9/16"

1шт.

701067R1

RING

CIRCLIP, (130 mm)

2шт.

3043995R1

COLLAR

rear axle

2шт.

709109R1

GASKET

rear axle bearing container

2шт.

709110R11

RETAINER

rear axle bearing, CPTE., w/oil seal 703916R91

2шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

8шт.

703916R91

SEAL

OIL SEAL, Opt.

1шт.

703917R92

OIL SEAL

OIL SEAL, Opt.

1шт.

3069937R91

SEAL

OIL SEAL, Opt.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

703915R1

WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk

felt, rear axle

1шт.

3109605R91

CARRIER, rear axle L.H.

1шт.

3109606R91

CARRIER, rear axle R.H.

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

hex hd. 1/2" x 1-5/8"

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

3071256R91

NO LONGER SERVICED

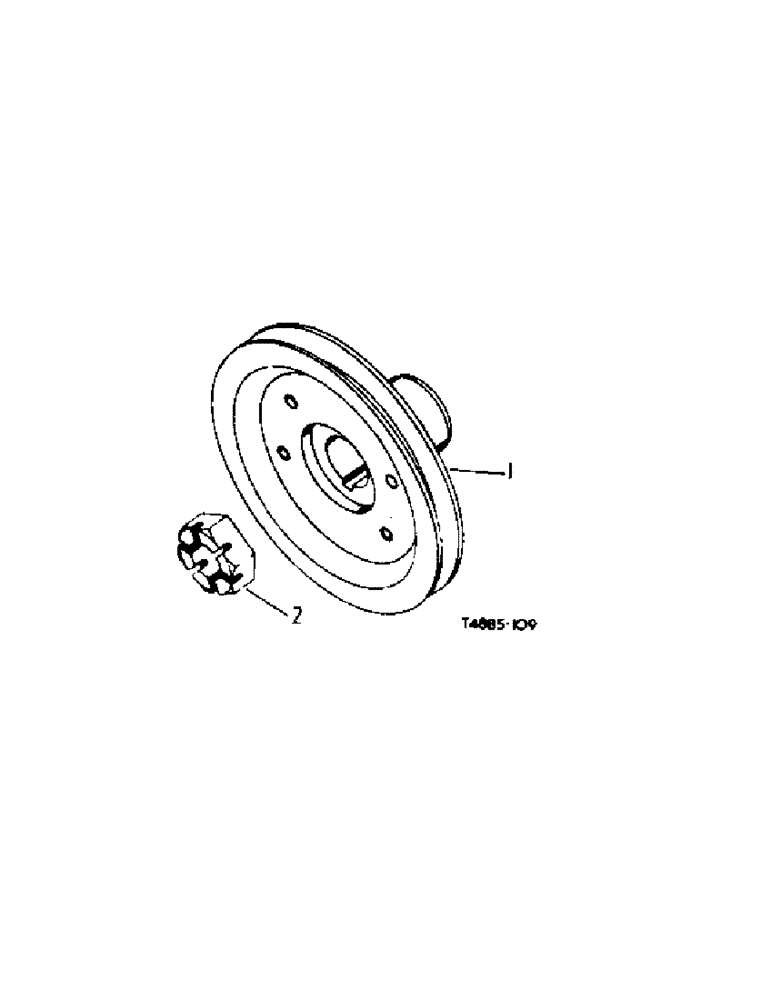

ATTACHMENT, front PTO drive pulley, comprising:

1шт.

1

3048133R2

PULLEY

fan drive, front PTO drive pullet attachment (export petrol)

1шт.

2

NLS

NO LONGER SERVICED

NUT, lock, front PTO drive pullet attachment (export petrol)

1шт.
