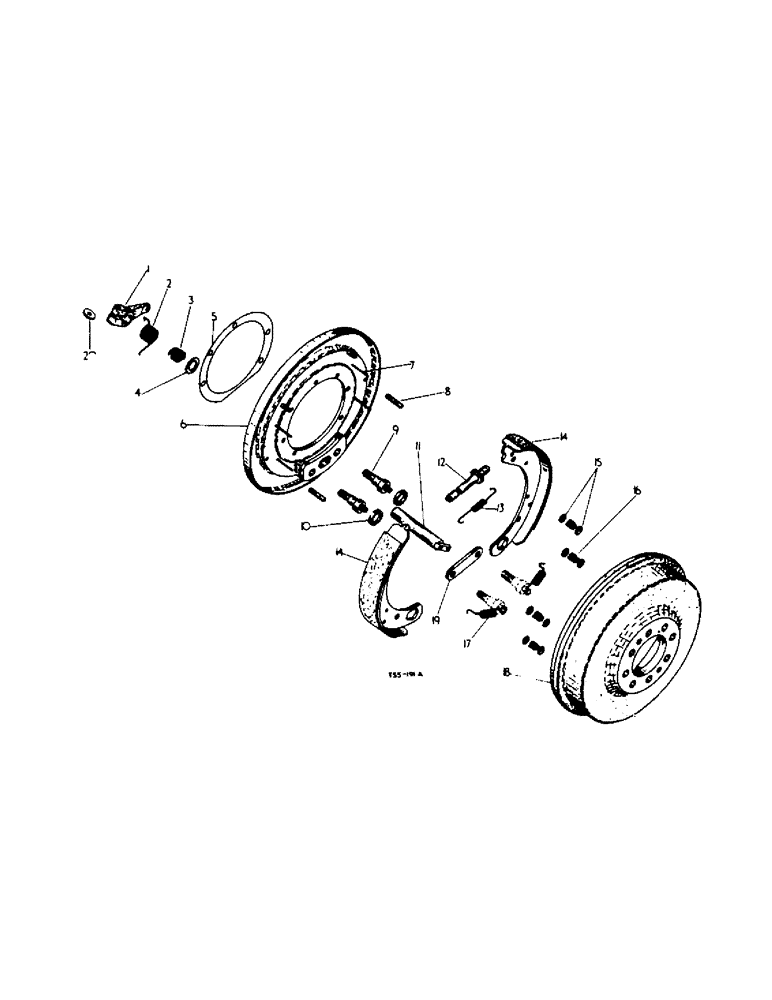

Запчасти Case IH 354 (6-59) - ATTACHMENTS, HAND OPERATED DRUM BRAKE ATTACHMENT, 14 INCH X 2 INCH DAFC DRUM BRAKE ASSEMBLY Attachments

3068536R91

DRUM BRAKE ASSY

BRAKE ASSY., 14" x 2" DAFC drum, comprising of items shown in footnote

2шт.

(1) adjuster 3068550R91, (1) camshaft 3068565R1, (-) kit 3069468R91, (2) nut 3068557R1, (2) nut 3068559R1, (2) pin 3068558R1, (1) plate 3068541R91, (1) plate 3068563R1, (1) plate 3068566R1, (2) post 3068556R1, (2) shoe 3068548R91, (1) spring 3068561R1, (2) spring 3068562R1, (1) spring 3068567R1, (2) washer 3068564R1, (2) washer 3068560R1

1шт.

180150

BOLT,Hex, 7/16" - 14 x 1 5/8"

hex hd. 7/16" x 5/8"

4шт.

180148

SCREW,Hex, 7/16" - 14 x 1 3/8"

BOLT, hex hd. 7/16" x 1-3/8"

6шт.

271501

SOCKET

NUT, hex 7/16"

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

1

3068513R1

LEVER

camshaft

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3068515R1

SPRING

cable return R.H.

1шт.

3068514R1

SPRING

cable return L.H.

1шт.

3

3068567R1

SPRING

cover plate

1шт.

4

3068566R1

WASHER

PLATE, cover

1шт.

5

3069199R1

SHIM

drum brake back plate

2шт.

6

3068541R91

PLATE, CPTE., backing

1шт.

7

3068569R1

AXLE PIN

PIN, shoe hold down

4шт.

8

3068556R1

POST

steady

2шт.

3068557R1

NUT

2шт.

9

3068558R1

PIN

anchor

2шт.

3068559R1

NUT

3/4" UNF

2шт.

3068560R1

SPRING WASHER

WASHER, spring 3/4"

2шт.

10

3068564R1

SPACER

WASHER, spacer

2шт.

11

3068565R1

CAMSHAFT

1шт.

12

3068550R91

ADJUSTER

assy.

1шт.

13

3068561R1

SPRING

show return-adjuster end

1шт.

14

3068548R91

SHOE (ASSY)

SHOE, assy.

1шт.

15

3068568R1

WASHER, shoe hold down cup

8шт.

16

3068570R1

SPRING, shoe hold down

4шт.

17

3068562R1

SPRING

shoe return - anchor end

2шт.

18

709175R1

DRUM

brake

2шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

mach sltd. flat hd. 5/16" x 1"

4шт.

19

3068563R1

PLATE

anchor pin

1шт.

NSS

NOT SOLD SEPARAT

BARREL, adjuster

1шт.

Order 3068550R91 Adjuster Assy.

1шт.

20

3068530R1

KEY

brake lever

2шт.

NSS

NOT SOLD SEPARAT

FLANGE, adjuster

1шт.

Order 3068550R91 Adjuster Assy.

1шт.

NSS

NOT SOLD SEPARAT

TAPPET, adjuster - plain

1шт.

Order 3068550R91 Adjuster Assy.

1шт.

NSS

NOT SOLD SEPARAT

TAPPET, adjuster - adjustable

1шт.

Order 3068550R91 Adjuster Assy.

1шт.

3069468R91

KIT

(steady rest service), comprising: (8) pin 3068569R1, (8) spring 3068570R1, (8) washer 3068568R1

1шт.
