Запчасти Case IH 354 (6-54) - ATTACHMENTS, COLD STARTING ATTACHMENT Attachments

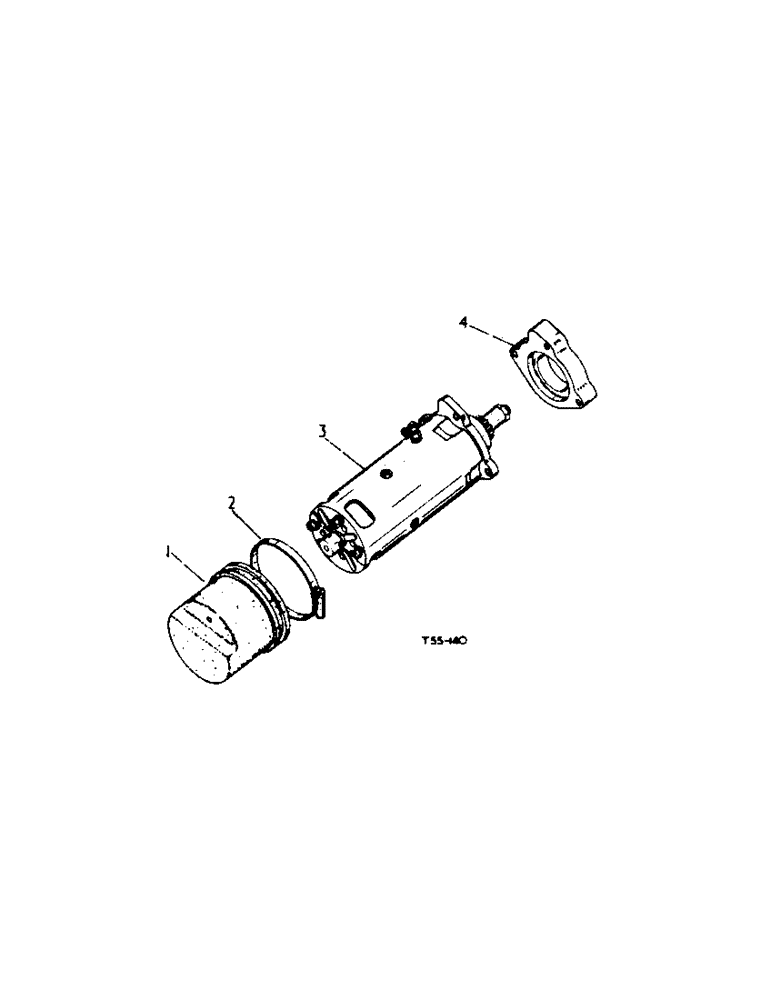

Схема запчастей Case IH 354 - (6-54) - ATTACHMENTS, COLD STARTING ATTACHMENT Attachments
3
4
1
2

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

ATTACHMENT, cold atarting, comprising: (factory application) components, starter motor (see detail list)

1шт.

NSS

NOT SOLD SEPARAT

COMPONENTS

1шт.

3062302R91

BREAKER

circuit

1шт.

426915

RETAINER

NUT, hex mach screw No. 8 x 36

2шт.

436714

SCREW, pan hd. sltd. mach No. 8 x 1/2" 36 TPI

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

3066551R1

BOLT

battery hold down

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3111980R91

CABLE

, Serial Range: battery-starter

1шт.

3066558R1

ELEMENT

ballast resistor (.040 ohms)

1шт.

3111982R91

HARNESS

main cable

1шт.

703899R1

SPRING

WIRE, connecting No. 2 to No. 3 glow plug

1шт.

3065071R2

FASTENER

WIRE, connecting No. 1 glow, Serial Range: plug-earth

1шт.

703898R1

ELECTRICAL WIRE

WIRE, connecting No. 1 to No. 2 and No. 3 to No. 4 glow plug

1шт.

1

3064053R2

SLEEVE

SHEATH, protective, starter motor

1шт.

2

708404R91

CLIP

jubilee, 5", starter motor

1шт.

3

3066553R92

STARTER MOTOR

MOTOR, CPTE., starter (12 volt) (See detail list)

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

Starter motor Hex, 3/8"-16 x 2 1/4", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Starter motor 3/8"

3шт.

4

3066554R1

SPACER

starter motor

1шт.

3068044R91

CABLE

STRAP, starter - earth, motor

1шт.

Выбрано товаров: 21
