(6-53) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, CONNECTING LINK

Запчасти Case IH 354 (6-53) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, CONNECTING LINK Attachments

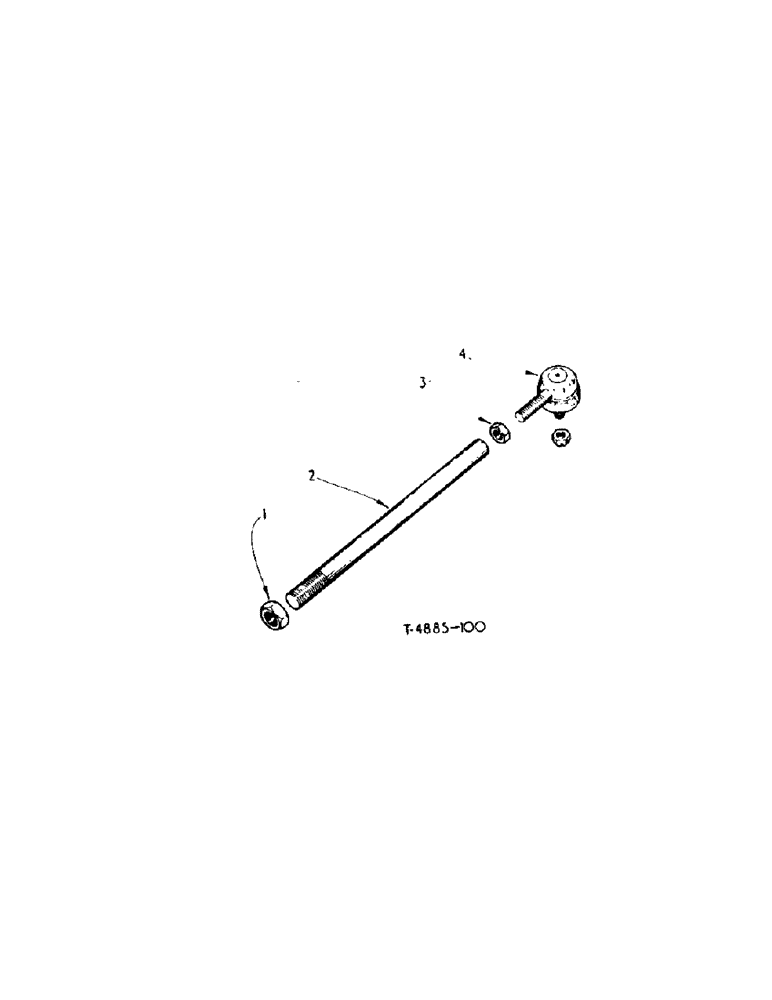

Схема запчастей Case IH 354 - (6-53) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, CONNECTING LINK Attachments
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3070916R91

LINK

connecting, CPTE., comprising:

1шт.

1

3043937R1

NUT

hex 1" UNF jam

1шт.

2

3070993R1

TUBE

SECTION, draglink center

1шт.

3

705247R1

NUT

lock, L.H. thread

1шт.

4

3045309R91

BALL JOINT

END, draglink L.H. thread

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

3041065R1

WASHER

boot

1шт.
