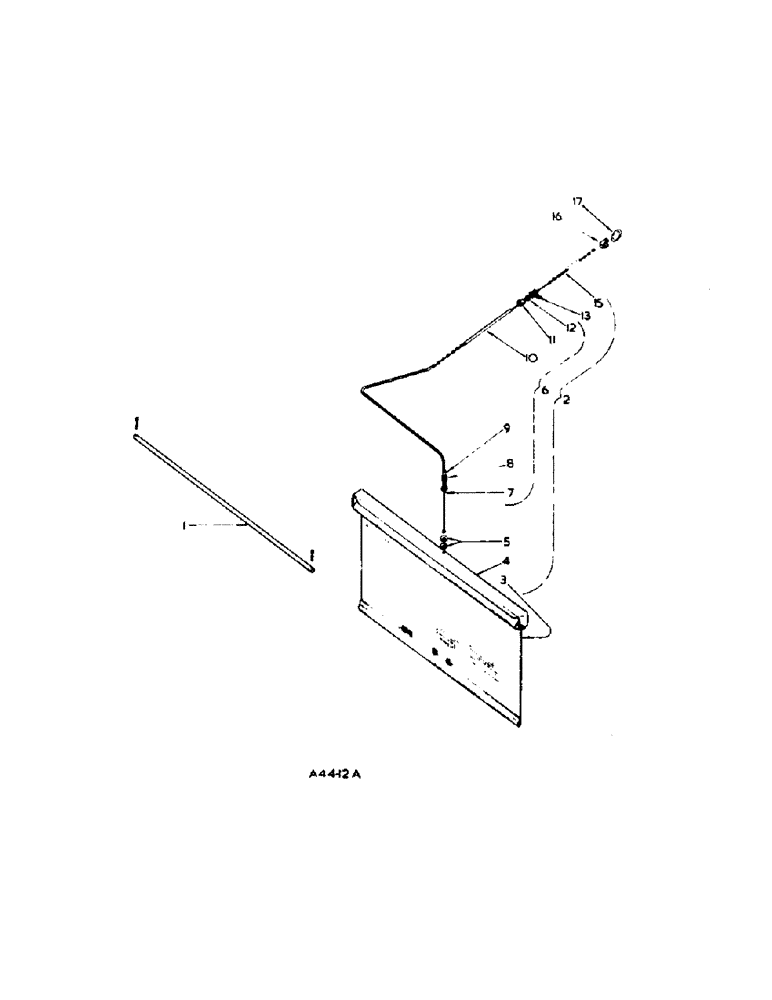

Запчасти Case IH 354 (6-45) - ATTACHMENTS, RADIATOR CURTAIN ATTACHMENT Attachments

3111972R91

ATTACHMENT, radiator curtain

1шт.

1

3045259R1

STIFFENER, radiator curtain

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

2шт.

2

3045253R93

CURTAIN, radiator and operating cable CPTE., comprising: (1) cable 707696R12, (1) blind 3045254R91, (1) holder 3045255R1, (2) washer 16558R1, (2) washer 16559R1

1шт.

3

3045254R91

CURTAIN

BLIND, radiator assy.

1шт.

4

3045255R1

HOLDER, radiator curtain

1шт.

5

16558R1

WASHER

plain, 17/64" x 5/8"

2шт.

6

707696R12

CABLE

operating, radiator curtain, CPTE., comprising: (1) chain 3070656R1, (1) cable 707696R1, (1) conduit 707697R1, (2) end 707698R1, (2) nut 707701R1, (1) stop 707699R1, (1) stop 707700R1, (1) nipple 707694R1

1шт.

7

707696R1

CABLE

radiator operating

1шт.

8

707700R1

STOP, adjustable (7/8" underhead)

1шт.

9

707698R1

ENDS, conduit

2шт.

10

707697R1

CONDUIT, operating cable, radiator curtain

1шт.

11

707699R1

STOP, adjustable (7/8" underhead)

1шт.

12

707701R1

NUT, lock

2шт.

14

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

15

3070656R91

CHAIN (AG)

CHAIN, ball radiator curtain

1шт.

16

707688R1

CONNECTOR, ball, Serial Range: chain-ring

1шт.

17

711947R1

RING

1шт.
