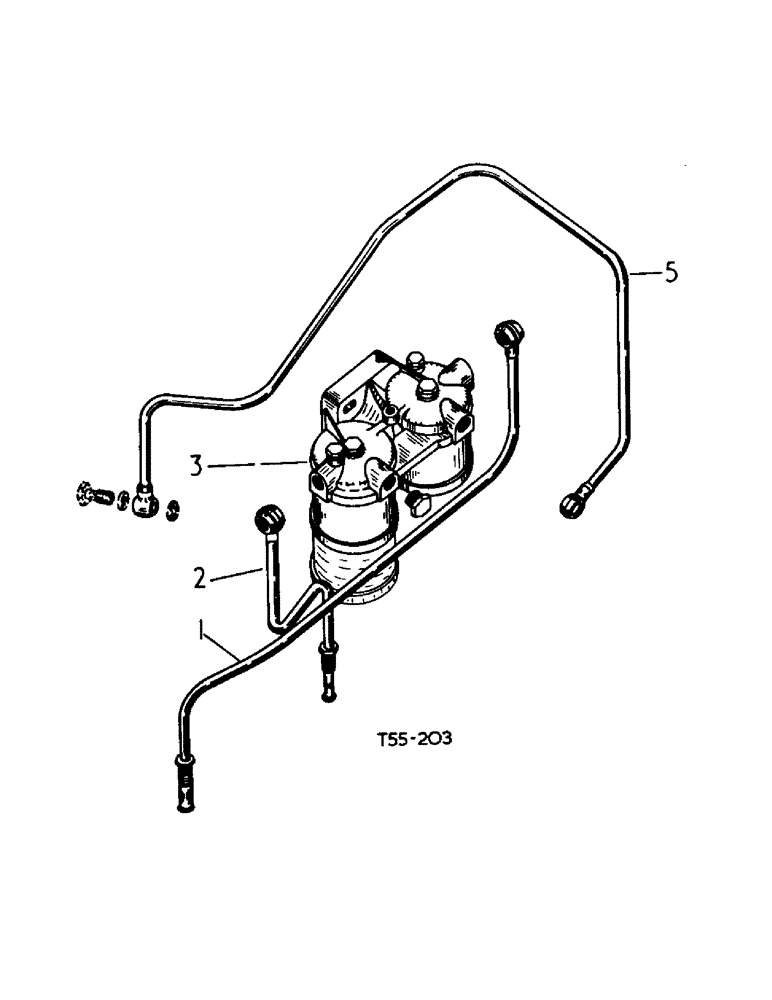

Запчасти Case IH 354 (6-42) - ATTACHMENTS, FUEL FILTER AGGLOMERATOR ATTACHMENT Attachments

1

3064791R92

PIPE

fuel (excess fuel) inj., Serial Range: pump-filter

1шт.

2

3064790R92

PIPE

fuel filter to injection pump

1шт.

3

3069608R91

FILTER

agglomerator (A, B) (See detail list)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, hex hd. 3/8" x 1-3/8" (A2) (B2)

1шт.

3064788R1

BOLT,1/2" - 20 x 0.875", Brass

fuel filter bajo inlet (A, B)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A, B) 3/8"

1шт.

4

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

5

3064789R92

PIPE

fuel feed pump to filter (A, B)

1шт.

708308R31

PIPE

injection No. 2 CPTE. (B, C)

1шт.

3069609R91

KIT

twin bowl fuel filter conversion

1шт.

Attachment, twin bowl fuel filter agglomerator (Factory application) (A) (As required) 3069605R91, Attachment, twin bowl fuel filter agglomerator (B) (As required) (Not serviced) 3069606R91, Attachment, twin bowl fuel filter agglomerator (C) (As required) (Not serviced) (A) For simple assemblies or attachments the listing is fully covered by description. (B) When four or more parts are contained in the assemblies or attachments the listing of components follows the description with the wording: - Comprising

1шт.

3069610R1

BOWL

BODY, agglomerator

1шт.

3069612R91

BASE

agglomerator w/stud

1шт.

3072558R1

PLUG

drain

1шт.

3105001R1

SEAL

body and base

2шт.

3072559R1

WASHER

drain plug

1шт.
