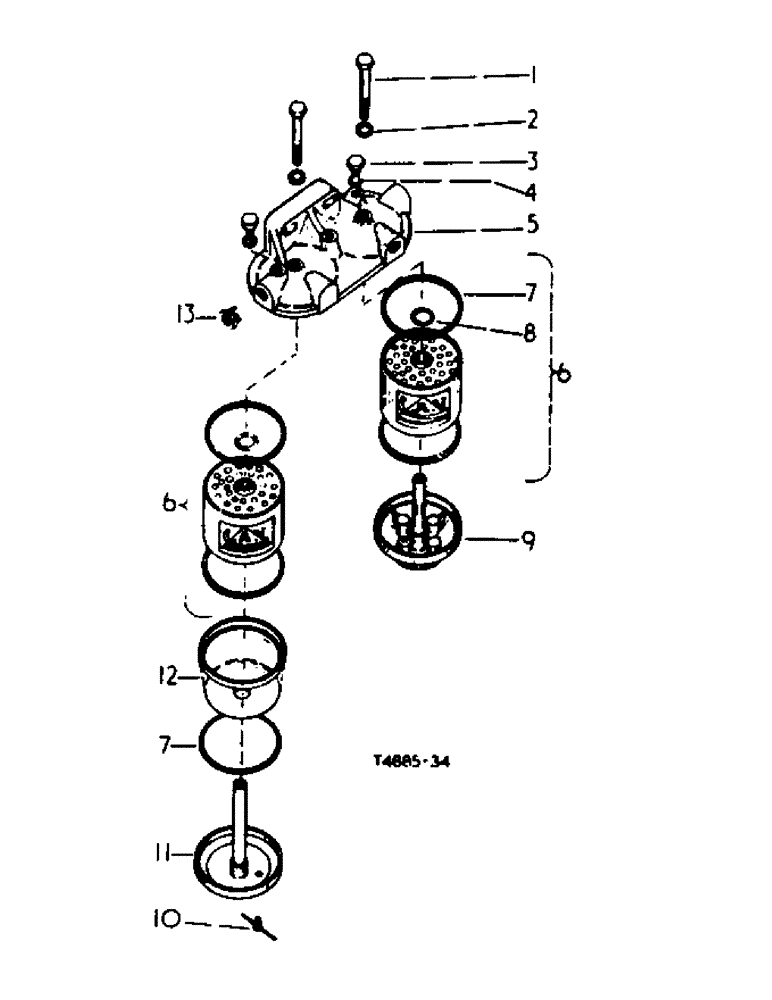

Запчасти Case IH 354 (6-40) - ATTACHMENTS, FUEL FILTER AGGLOMERATOR Attachments

3069608R91

FILTER

AGGLOMERATOR, fuel filter, comprising:

1шт.

1

3070771R1

BOLT

center

2шт.

2

3044504R1

WASHER

center bolt

2шт.

3

3070770R1

PLUG

small vent

2шт.

4

3049111R1

SEALING WASHER

vent plug

2шт.

5

3070773R1

FILTER HEAD

COVER

1шт.

6

3044506R92

ELEMENT

assy.

2шт.

7

3105001R1

SEAL

WASHER, cover and base

4шт.

8

3044505R1

SEAL

RING, element seal

2шт.

9

3070774R91

BASE

filter

1шт.

10

3072558R1

PLUG

drain

1шт.

3072559R1

WASHER

drain plug

1шт.

11

3069612R91

BASE

assy., agglomerator

1шт.

12

3069610R1

BOWL

BODY, agglomerator

1шт.

13

3070775R1

ADAPTER

ADAPTOR, inlet and outlet (18 mm - 1/2" UNF)

2шт.

3111731R1

WASHER

adaptor

1шт.
