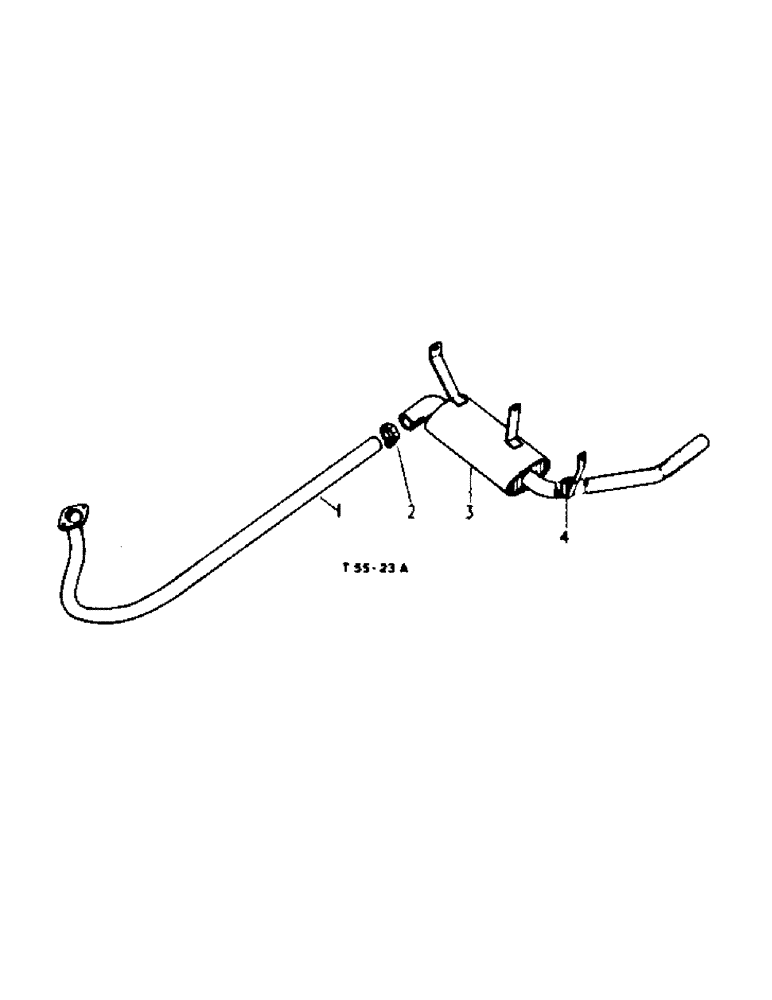

Запчасти Case IH 354 (6-37A) - ATTACHMENTS, DOWNSWEPT EXHAUST PIPE ATTACHMENT Attachments

3070687R91

ATTACHMENT, exhaust pipe, downswept

1шт.

1

3044044R95

PIPE

exhaust CPTE.

1шт.

Gasket for Ref. 1 is 704613R2

1шт.

2

3068010R1

CLAMP

exhaust pipe, attachment downswept

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4", Downswept exhaust pipe attachment

1шт.

102635

NUT,3/8"-16, G5

Downswept exhaust pipe attachment 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Downswept exhaust pipe attachment 3/8"

1шт.

3

3106834R1

MUFFLER

SILENCER, exhaust CPTE., downswept pipe attachment

1шт.

4

3106822R1

CLAMP

muffler outlet pipe support, downswept exhaust attachment

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Downswept exhaust pipe attachment Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

Downswept exhaust pipe attachment 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Downswept exhaust pipe attachment 3/8"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(For footplate L.H.), Downswept exhaust pipe attachment Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(For footplate R.H.), Downswept exhaust pipe attachment Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.
