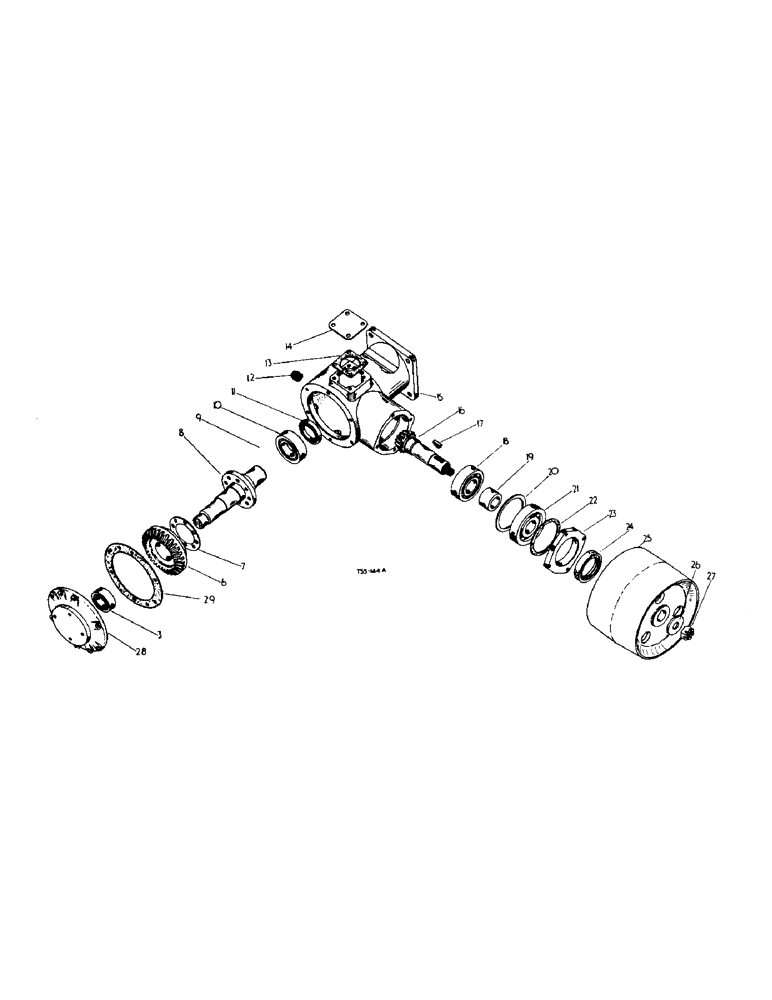

Запчасти Case IH 354 (6-29) - ATTACHMENTS, BELT PULLEY AND SHIELD ATTACHMENT Attachments

3067898R91

ATTACHMENT, w/safety shield, belt pulley 555 R.P.M.

1шт.

3067900R91

ATTACHMENT, w/safety shield, belt pulley 698 R.P.M., comprising belt pulley, safety shield (see detail list)

1шт.

NSS

NOT SOLD SEPARAT

BELT PULLEY

1шт.

1

NSS

NOT SOLD SEPARAT

(Not applicable)

1шт.

2

NSS

NOT SOLD SEPARAT

(Not applicable)

1шт.

3

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

belt pulley shaft - outer (SKF), Opt.

1шт.

3

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

belt pulley shaft - outer (Fischer), Opt.

1шт.

3

701445R91

BEARING, BALL

belt pulley shaft - outer (Durkopp), Opt.

1шт.

3

700545R91

BEARING

ball, belt pulley shaft - outer (Koyo), Opt.

1шт.

3

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

belt pulley shaft - outer (Hoffman), Opt.

1шт.

3

659473R91

BEARING, BALL

belt pulley shaft - outer, Opt.

1шт.

3

3108784R91

BEARING, BALL

belt pulley shaft - outer (NTN), Opt.

1шт.

4

NSS

NOT SOLD SEPARAT

(Not applicable)

1шт.

5

NSS

NOT SOLD SEPARAT

(Not applicable)

1шт.

6

3067908R1

GEAR

belt pulley bevel (555 R.P.M.)

1шт.

6

3067909R1

GEAR

belt pulley bevel (698 R.P.M.)

1шт.

7

3067911R1

SHIM

belt pulley bevel gear (.0068")

1шт.

8

3067905R11

CLUTCH

CPTE., belt pulley P.T.O. (555 or 698 R.P.M.)

1шт.

181333

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

9

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

10

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

belt pulley shaft - inner (SKF), Opt.

1шт.

10

706234R91

PIPE

BEARING, ball, belt pulley shaft - inner (Fischer), Opt.

1шт.

10

3048701R91

BALL BEARING

BEARING, ball, belt pulley shaft - inner (Hoffman), Opt.

1шт.

11

704229R91

OIL SEAL

belt pulley drive housing, Opt.

1шт.

11

704230R91

SEAL

OIL SEAL, belt pulley drive housing, Opt.

1шт.

11

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL SEAL, belt pulley drive housing, Opt.

1шт.

12

444592R1

PLUG

3/4" pipe, Opt.

1шт.

12

20963R1

PLUG,Sq Hd, 1/4"-14 NPTF

3/4" pipe, Opt.

1шт.

13

711882R1

GASKET

belt pulley drive housing top cover plate

1шт.

14

711881R1

PLATE

belt pulley drive housing top cover

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, 3/8" x 11/16" hex hd.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

3067904R1

HOUSING

belt pulley drive

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

3067915R1

SHAFT

PINION AND SHAFT, belt pulley drive bevel (698 R.P.M.)

1шт.

16

704242R1

GEAR

PINION AND SHAFT, belt pulley drive bevel (555 R.P.M.)

1шт.

17

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

18

3114942R91

BEARING

ball, belt pulley pinion inner NTN, Opt.

1шт.

18

49533H

BEARING, BALL

belt pulley pinion - inner (S.K.F.), Opt.

1шт.

18

700521R91

BALL BEARING

BEARING, ball, belt pulley pinion - inner (Fischer), Opt.

1шт.

18

700523R91

BEARING, BALL

belt pulley pinion - inner (R & M), Opt.

1шт.

18

704768R92

BALL BEARING

BEARING, ball, belt pulley pinion - inner (Hoffman), Opt.

1шт.

19

704243R1

SPACER

belt pulley bearing

1шт.

20

3073348R1

SHIM

SPACER, belt pulley pinion shaft (.002)

1шт.

20

706745R1

SPACER

belt pulley pinion shaft (.148)

1шт.

21

133606H

BEARING, BALL

belt pulley pinion - outer (S.K.F.), Opt.

1шт.

21

704224R91

BALL BEARING

BEARING, ball, belt pulley pinion - outer (Fischer), Opt.

1шт.

21

704245R91

BEARING

ball, belt pulley pinion - outer (R & M), Opt.

1шт.

21

3063609R91

BALL BEARING

BEARING, ball, belt pulley pinion - outer (Hoffman), Opt.

1шт.

22

711872R1

GASKET

belt pulley pinion shaft retainer

1шт.

23

704246R21

RETAINER

w/oil seal 704247R91 CPTE., belt pulley pinion shaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex hd.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

704247R91

OIL SEAL

belt pulley pinion shaft retainer, Opt.

1шт.

24

704248R91

SEAL

OIL SEAL, belt pulley pinion shaft retainer, Opt.

1шт.

24

3066620R91

SEAL

OIL SEAL, belt pulley pinion shaft retainer, Opt.

1шт.

25

704249R11

PULLEY

2/bushing 704250R1 CPTE., belt

1шт.

704250R1

BUSHING

1шт.

26

704251R1

WASHER

belt pulley retainer

1шт.

27

704252R1

NUT

belt pulley pinion shaft

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

28

3073827R1

COVER

belt pulley drive housing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex hd. 3/8 x 1-1/8

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

3шт.

29

3073828R1

SHIM

housing

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8" x 3/4" hex hd.

8шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Used w/belt pulley s/shield) 3/8"

4шт.

1080129R1

PRODUCT GRAPHIC

TAG, "unit is drained"

1шт.

3049002R92

ATTACHMENT, belt pulley w/safety shield 545 and 745 RPM comprising: belt pulley, safety shield (see detail list)

1шт.
