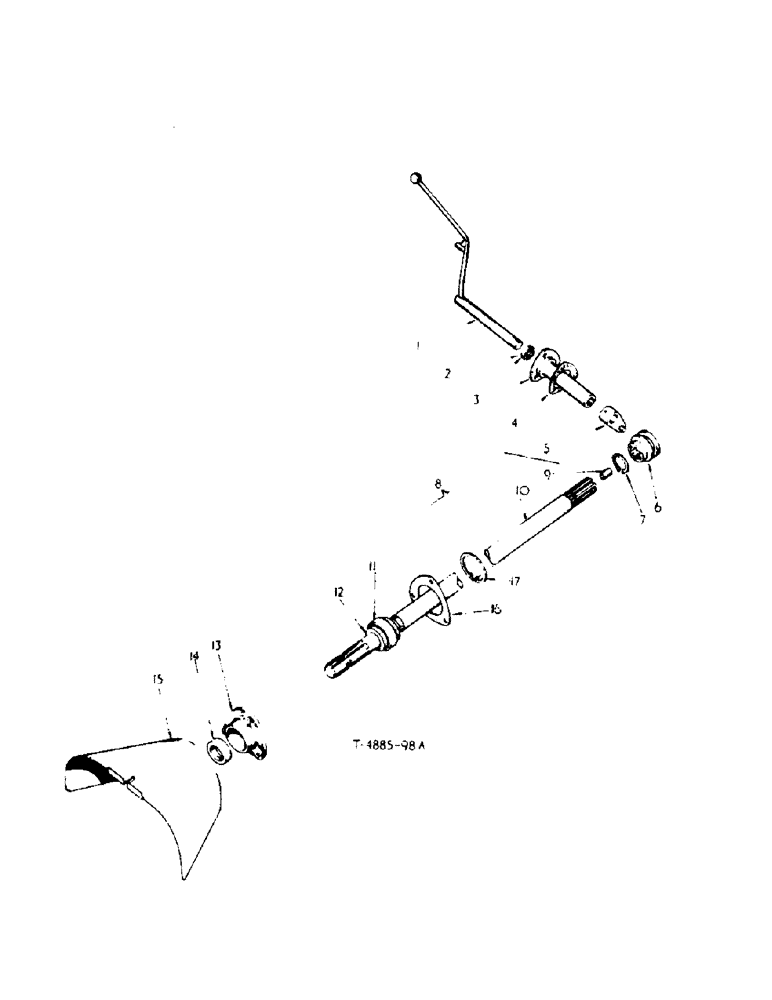

Запчасти Case IH 354 (6-27) - ATTACHMENTS, STANDARD REAR P.T.O. ATTACHMENT Attachments

3044913R92

ATTACHMENT, standard rear P.T.O.

1шт.

For use with standard transmission

1шт.

1

3064230R91

LEVER

CPTE., P.T.O. rear clutch shifter

1шт.

2

3066616R91

SEAL

OIL SEAL, P.T.O. shifter bracket, Opt.

1шт.

2

704393R91

OIL SEAL

OIL SEAL, P.T.O. shifter bracket, Opt.

1шт.

2

704394R91

SEAL

OIL SEAL, P.T.O. shifter bracket, Opt.

1шт.

3

704392R21

SUPPORT

BRACKET, CPTE., P.T.O. shifter

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

3114906R1

GASKET

P.T.O. shifter bracket

1шт.

5

3063246R11

LEVER

SHIFTER, CPTE., P.T.O., Opt.

1шт.

5

751115R91

LEVER

SHIFTER, CPTE., P.T.O., Opt.

1шт.

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

groove, type 1, 3/16" x 1-1/4"

1шт.

6

751113R2

CLUTCH

sliding, P.T.O. shaft rear

1шт.

7

751117R1

CLIP

CIRCLIP, P.T.O. shaft rear, clutch stop

1шт.

8

3073111R91

SHAFT

CPTE., P.T.O., comprising: (1) bearing (NSS), (1) bush 48594DA, (2) collar (NSS), (1) shaft (NSS)

1шт.

9

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, rear, P.T.O. shaft

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT, P.T.O. (Order 3073111R91)

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, P.T.O. shaft (Order 3073114R91)

1шт.

12

NSS

NOT SOLD SEPARAT

COLLAR, P.T.O. shaft (Order 3073114R91)

1шт.

13

704387R12

RETAINER

w/oil seal 708580R91 CPTE., oil seal

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x 16 ga.

3шт.

14

708580R91

SEAL ASSY.

OIL SEAL, P.T.O., Opt.

1шт.

14

3065217R91

OIL SEAL

OIL SEAL, P.T.O., Opt.

1шт.

14

3068756R91

SEAL

OIL SEAL, P.T.O., Opt.

1шт.

15

704395R96

SHIELD

CPTE., P.T.O. safety

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16"

6шт.

3072253R1

STUD

P.T.O. safety shield

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

703971R1

GASKET

P.T.O. shaft

1шт.

17

704385R1

CLIP

CIRCLIP, internal 72 mm

1шт.

3073114R91

SERVICE KIT

PACKAGE, P.T.O. shaft bearing service, comprising: (1) bearing (NSS), (1) collar (NSS)

1шт.

1080213R1

PRODUCT GRAPHIC

PROGRAPH, P.T.O.

1шт.
