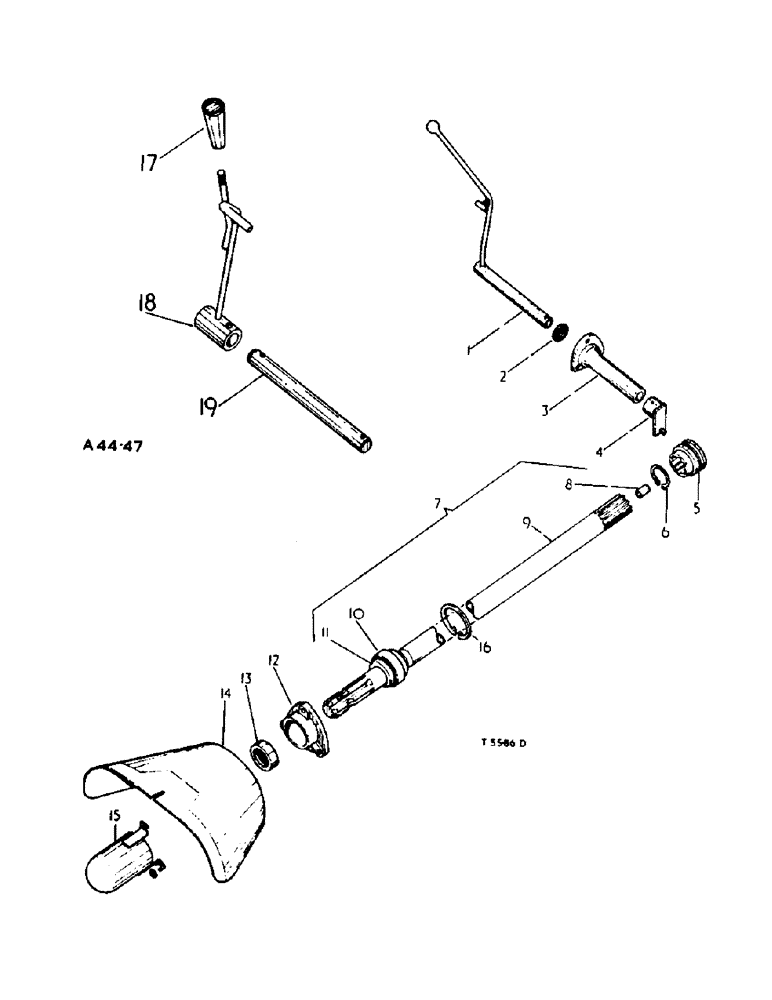

Запчасти Case IH 354 (6-22) - ATTACHMENTS, REAR P.T.O., CONSTANT RUNNING P.T.O. ATTACHMENT Attachments

1

3064230R91

LEVER

shifter, P.T.O. rear clutch CPTE.

1шт.

142508

DRIVE BUSHING

groove, 3/16" x 1-1/4"

1шт.

2

704393R91

OIL SEAL

OIL SEAL, P.T.O. shifter bracket, Opt.

1шт.

2

704394R91

SEAL

OIL SEAL, P.T.O. shifter bracket, Opt.

1шт.

2

3066616R91

SEAL

OIL SEAL, P.T.O. shifter bracket, Opt.

1шт.

3

704392R21

SUPPORT

BRACKET, P.T.O. rear clutch, CPTE., w/oil seal 704393R91

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

3063246R91

SHIFTER, P.T.O., CPTE., Opt.

1шт.

4

751115R91

LEVER

SHIFTER, P.T.O., CPTE., Opt.

1шт.

5

751113R2

CLUTCH

rear, P.T.O. shaft

1шт.

6

751117R1

CLIP

CIRCLIP, P.T.O. shaft rear clutch

1шт.

7

3073111R91

SHAFT

CPTE., P.T.O., comprising: (1) bearing (NSS), (1) bush 48594DA, (2) collar (NSS), (1) shaft (NSS)

1шт.

8

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, P.T.O. rear shaft

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT, P.T.O. (Order 3073111R91) (NSS)

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING, P.T.O. shaft (Order 3073114R91) (NSS)

1шт.

11

NSS

NOT SOLD SEPARAT

COLLAR, P.T.O. shaft (Order 3073114R91) (NSS)

1шт.

12

704387R12

RETAINER

w/oil seal 708580R91 CPTE., oil seal

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16"

6шт.

3072253R1

STUD

P.T.O. safety shield

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

708580R91

SEAL ASSY.

OIL SEAL, P.T.O., Opt.

1шт.

13

3065217R91

OIL SEAL

OIL SEAL, P.T.O., Opt.

1шт.

13

3068756R91

SEAL

OIL SEAL, P.T.O., Opt.

1шт.

14

704395R96

SHIELD

safety P.T.O., CPTE.

1шт.

15

NSS

NOT SOLD SEPARAT

CAP, safety, P.T.O., CPTE., (see Att.)

1шт.

NSS

NOT SOLD SEPARAT

WASHER, special (see Att.)

3шт.

16

704385R1

CLIP

CIRCLIP (internal 72 mm)

1шт.

16

3073114R91

SERVICE KIT

PACKAGE, P.T.O. shaft bearing service, comprising: (1) bearing (NSS), (1) collar (NSS)

1шт.

17

390001R1

GRIP

P.T.O. shifter, USA Market

1шт.

18

389569R91

LEVER

assy., P.T.O. shifter, USA Market

1шт.

19

3064231R1

SHAFT

P.T.O. shifter, USA Market

1шт.

18265R1

LOCK PIN,3/8" x 1 1/4", Slotted

Pin, 3/8" x 1-1/4", slotted, USA Market

1шт.
