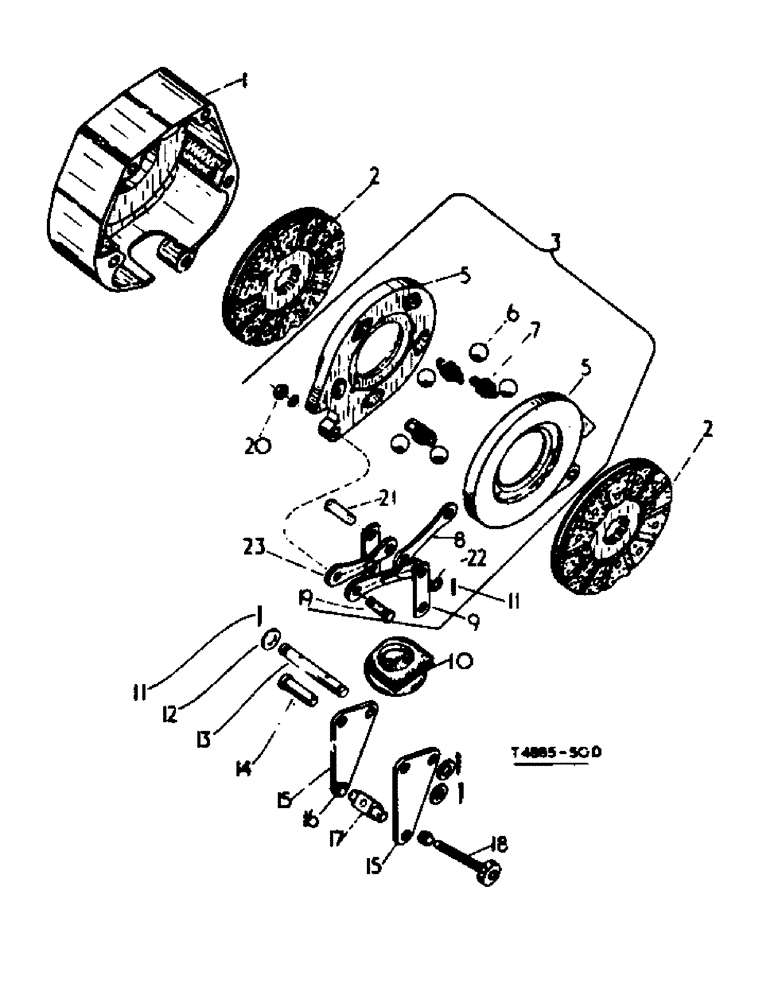

Запчасти Case IH 354 (4-36) - CHASSIS, DISC BRAKES (12) - CHASSIS

1

3105298R1

HOUSING

brake R.H. (Illustrated)

1шт.

3064168R93, Brake, assy., disc, R.H. (Illustrated) For simple assemblies or attachments the listing is fully covered by description.

1шт.

1

3105297R1

HOUSING

brake L.H.

1шт.

3064167R93, Brake, assy., disc, L.H. When four or more parts are contained in the assemblies or attachments the listing of components follows the description with the wording: - Comprising.

1шт.

2

395161R91

NO LONGER SERVICED

DISC, assy., brake, Opt.

1шт.

2

3064170R91

BRAKE DISC

DISC, assy., lined friction, Opt.

2шт.

3

3105296R91

ACTUATOR

UNIT, assy., actuating disc comprising: (5) ball 706039R2, (2) disc 3105304R1, (2) link 3105303R1, (1) link 3105302R1, (2) link 3067140R1, (2) nut 3105301R1, (2) pin 3105300R1, (1) pin, 16618R1, (1) pin 3071519R1, (3) spring 3066876R1

1шт.

4

NSS

NOT SOLD SEPARAT

DISC, order two disc 3105304R1, five ball 706039R2 and three spring 3066876R1 CPTE., actuating assy.

1шт.

5

3105304R1

DISC

actuating

2шт.

6

706039R2

BALL

7/8" dia.

5шт.

7

3066876R1

SPRING

return disc

3шт.

8

3105302R1

LINK

plain

1шт.

9

3067140R1

LINK

tension

2шт.

10

3064173R1

BOOT

rubber

1шт.

11

3071519R1

PIN

split, 3/32" x 7/8" long (A6) (B5)

1шт.

12

3067147R1

WASHER

plain 35/64" x 1" x .090" (A5) (B4)

1шт.

13

3064195R1

PIN

brake operating pivot

1шт.

3064168R93, Brake, assy., disc, R.H. (Illustrated) For simple assemblies or attachments the listing is fully covered by description.

1шт.

14

3064216R1

PIN

tension link (B2)

1шт.

3064168R93, Brake, assy., disc, R.H. (Illustrated) For simple assemblies or attachments the listing is fully covered by description.

1шт.

15

3064194R1

LEVER

brake operating

2шт.

16

3067136R1

LOCK NUT

lock 3/8" UNF (special)

2шт.

17

3064217R1

TRUNNION

brake operating lever (blank)

1шт.

18

3064218R1

BOLT

footbrake adjuster

1шт.

19

3105300R1

BOLT

PIN, pivot

2шт.

20

3105301R1

NUT

lock

2шт.

21

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, jaw

1шт.

22

3067142R1

WASHER

1шт.

23

3105303R1

LINK

cranked

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

hex hd. 1/2" x 3-1/2" (A3) (B4)

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

3064168R93, Brake, assy., disc, R.H. (Illustrated) For simple assemblies or attachments the listing is fully covered by description.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3040152R92

LINING

PACKAGE, brake lining, service

1шт.
