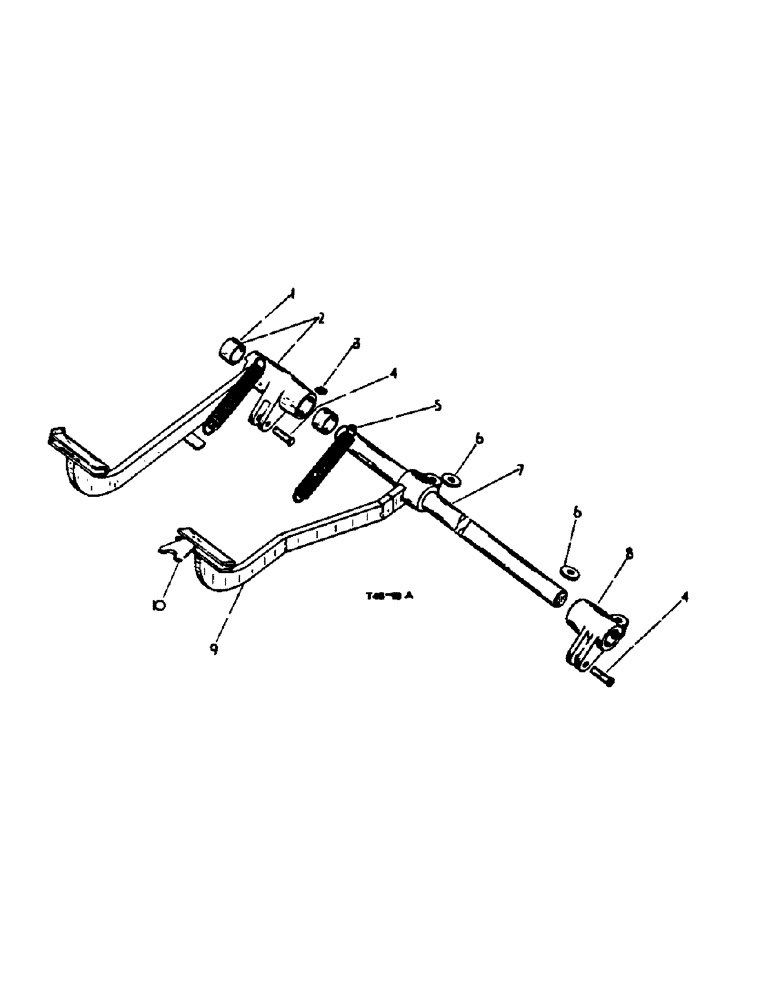

Запчасти Case IH 354 (4-35) - CHASSIS, FOOT BRAKES AND LINKAGE (12) - CHASSIS

1

3061206R1

BUSHING

brake pedal cross shaft

2шт.

2

3064177R91

PEDAL

w/fitting 109461 and two bushing 3061206R1 CPTE., R.H. brake

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

4

3064219R1

PIN

footbrake adjuster

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

120396

WASHER

plain 17/32" x 1-1/16 x .095" ga.

2шт.

5

3064186R2

SPRING

brake pedal return

2шт.

6

3064184R1

KEY

brake lever

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

3064175R2

SHAFT

brake pedal

1шт.

3072088R1

RETAINER

CIRCLIP

1шт.

8

3064185R1

LEVER

L.H. disc brake

1шт.

9

3064176R91

PEDAL

w/plate 43751DB, pin 442946 and spring 51293D CPTE., L.H. brake

1шт.

10

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

51293D

SPRING

brake pedal lock, plate tension

1шт.

38-31620

PIN,6.35mm OD x 31.75mm L

groove, 1/4" x 5/8" type 3

1шт.
