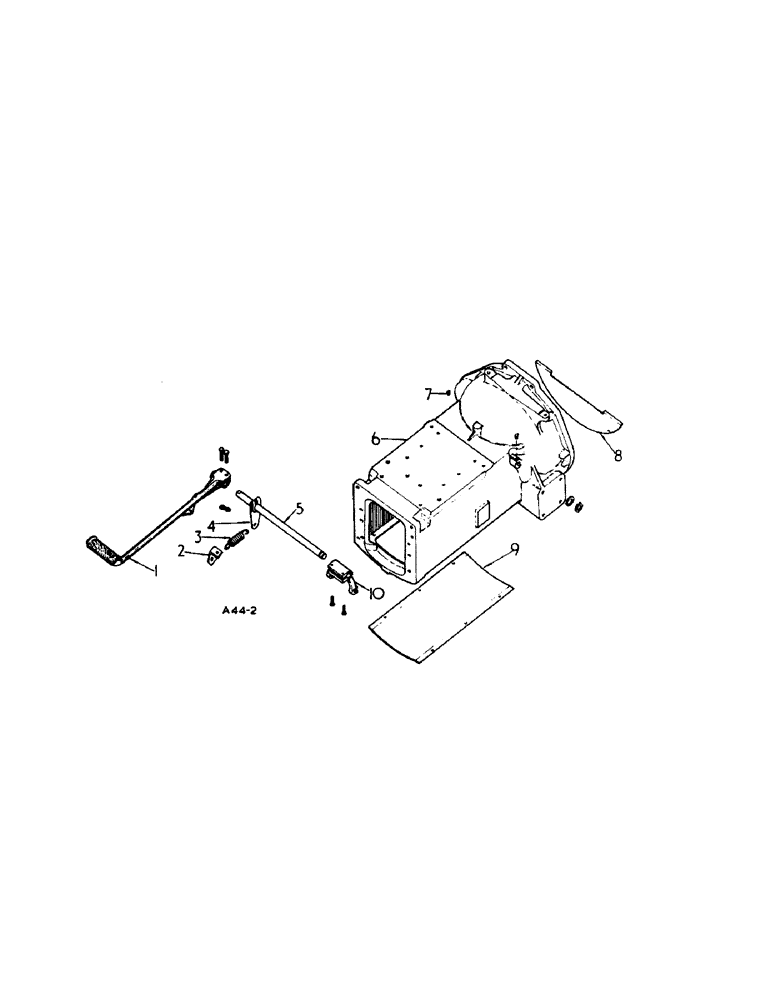

Запчасти Case IH 354 (4-22) - CHASSIS, CLUTCH HOUSING AND CONNECTIONS (12) - CHASSIS

1

751050R2

PEDAL

clutch

1шт.

751399R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Full Thd

clutch pedal

1шт.

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

hex hd. 3/8" UNF x 2"

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

751872R1

NUT

hex 3/8" UNF

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

49405H

WASHER

spacing, clutch pedal

2шт.

2

3114264R1

BRACKET

clutch pedal return spring

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

703943R3

SPRING

clutch pedal return

1шт.

4

3112575R2

LEVER

clutch pedal return

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

16558R1

WASHER

1.7/64 plain

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

5

3071270R1

SHAFT

clutch release

1шт.

3109744R1

RETAINER

CIRCLIP

1шт.

49405H

WASHER

plain 17/32" x 1-1/4" x 16 ga.

1шт.

3047229R1

WASHER

KEY, clutch release shaft

1шт.

6

3044011R21

HOUSING

clutch cpte., w/two lubricators 109462 (Petrol)

1шт.

6

751046R41

HOUSING, clutch cpte., w/two lubricators 109462 (Diesel)

1шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

hex hd. 1/2" x 1-7/8"

7шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex hd. 1/2" x 1/2"

8шт.

17158R1

LOCK PIN,1/2" x 1 1/4", Slotted

Pin, 1/2" x 1-1/4", slotted

2шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

15шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, angle, 1/8" P.T. - 90 deg.

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, angle, 1/8" P.T. - 90 deg., optional

1шт.

8

703957R11

COVER

dust, clutch housing, w/strip 3068216R1

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

9

708652R1

COVER

hand hole, clutch housing

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

10

751049R1

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

443090

STUD

drive, no. 6 x 3/8" long, grooved (used with tractor serial number plate)

4шт.

3068214R1

STRIP

clutch housing hand hole sealing

1шт.

30688216R1

STRIP, clutch hsg dust cover sealing

1шт.
