(3-31) - ELECTRICAL, STOP LIGHT SWITCH, DELUXE LIGHTING AND AUSTRIAN

Запчасти Case IH 354 (3-31) - ELECTRICAL, STOP LIGHT SWITCH, DELUXE LIGHTING AND AUSTRIAN (06) - ELECTRICAL SYSTEMS

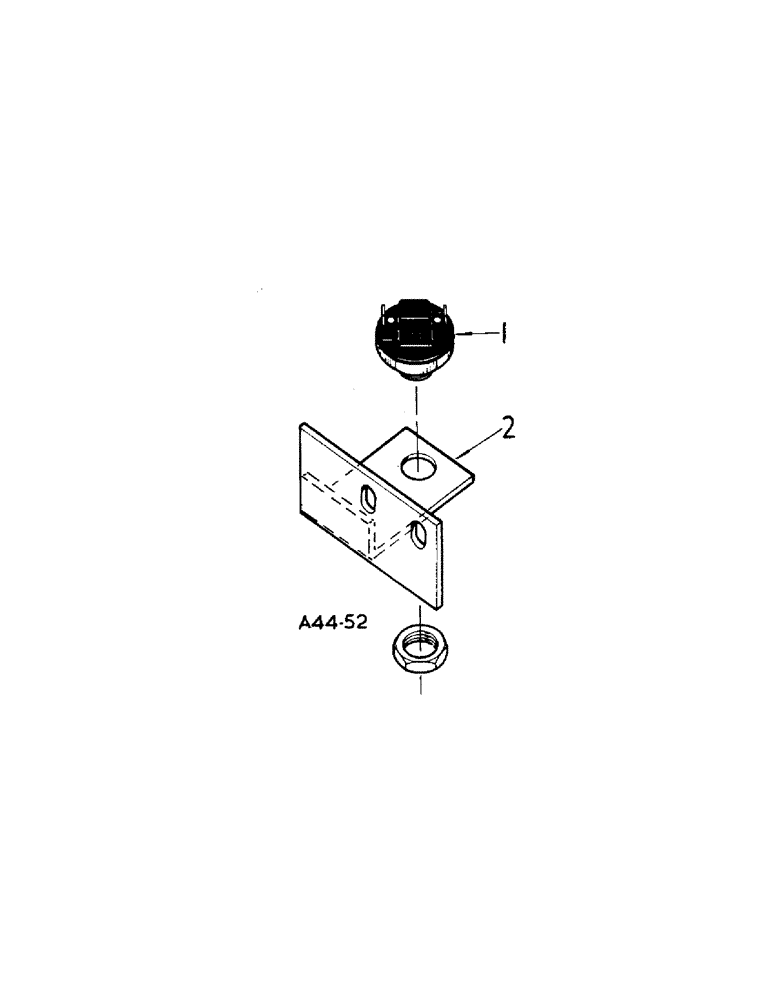

Схема запчастей Case IH 354 - (3-31) - ELECTRICAL, STOP LIGHT SWITCH, DELUXE LIGHTING AND AUSTRIAN (06) - ELECTRICAL SYSTEMS
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3114099R91

SWITCH

stop light

1шт.

2

3112571R1

BRACKET

assy, stop light switch

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3112570R1

NUT

NUT, switch stop light

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

4шт.
