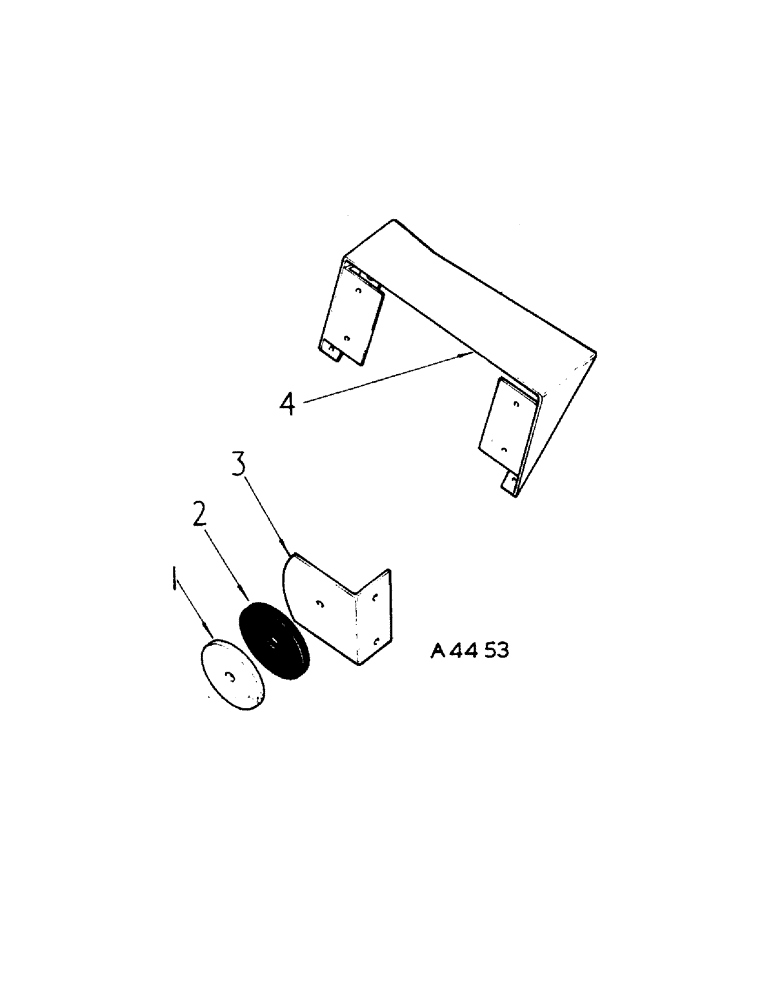

Запчасти Case IH 354 (3-31[A]) - ELECTRICAL, REFLECTORS & BRACKETS, AUSTRIAN, DELUXE LIGHTING FOR MACHINES W/FLAT TOP FENDERS ONLY (06) - ELECTRICAL SYSTEMS

1

3112360R91

REFLECTOR

and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

2шт.

2

3112361R1

PAD, reflector, and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

2шт.

171656

SCREW

6-32 x 1/2 C-Z pan hd. tap type D, reflectors and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

2шт.

3

3114120R1

BRACKET

reflector, and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 1 hex hd., reflectors and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

4шт.

219420

NUT, 1/4 hex, reflectors and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Reflectors and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only) 1/4"

4шт.

4

3114114R1

BASE, assy., light mounting L.H., reflectors and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

1шт.

3114115R1

BASE, assy., light mounting R.H., reflectors and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

1шт.

169734

OIL SEAL

SCREW, no 10-24 x 3/8 type C self tapping, reflectors and brackets (Austrian market) (Deluxe lighting for machines w/flat top fenders only)

8шт.
