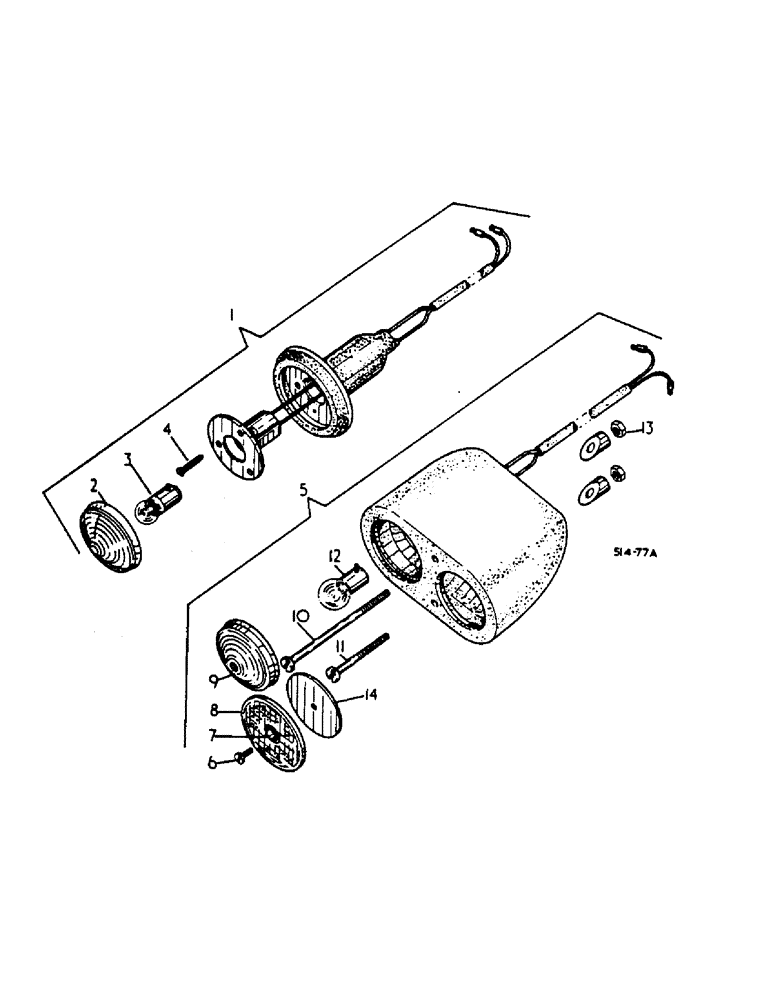

Запчасти Case IH 354 (3-26) - ELECTRICAL, SIDE, STOP AND TAIL LAMPS (06) - ELECTRICAL SYSTEMS

1

3114100R91

LIGHT

side, (Deluxe & Austrian)

2шт.

For machines fitted with safety cab or frame only

1шт.

1

527691R93

LIGHT ASSY.

LIGHT, side, (Std. - Lighting)

2шт.

2

3112638R1

LENS

clear

2шт.

3

3113360R1

SPARE PART

BULB, 12v 6w

2шт.

4

NLS

NO LONGER SERVICED

SCREW, no. 6 x 1/2 sltd. pan hd. tap

6шт.

5

531623R93

LIGHT

stop & tail L.H. (illustrated) std.

1шт.

531624R93

LAMP

LIGHT, stop & tail R.H. (lighting)

1шт.

5

3114101R91

NO LONGER SERVICED

LIGHT, stop & tail L.H. (illustrated) (Deluxe)

1шт.

For machines fitted with safety cab or frame only

1шт.

3112102R91

LIGHT, stop & tail R.H. (lighting) (Austrian)

1шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

2шт.

7

3112698R1

WASHER

cup nylon

2шт.

8

3112697R91

REFLECTOR

cpte., (red)

2шт.

9

3112696R1

LENS

(red)

2шт.

9

3074003R1

LENS

(red) (used w/531623R91 & 531624R91)

2шт.

10

25945R1

SCREW

1/4 x 4 cross recess zinc plated

2шт.

3112700R1

WASHER

1шт.

11

445998

SCREW

1/4 x 2 cross recess zinc plated

2шт.

3112700R1

WASHER

1шт.

12

894878H1

BULB

LAMP, 12v 21/5w bulb

2шт.

13

86625061

NUT,1/4"-20, GB

NUT, 1/4 w/nylon insert

4шт.

14

3115981R1

PLATE

reflector backing

1шт.
