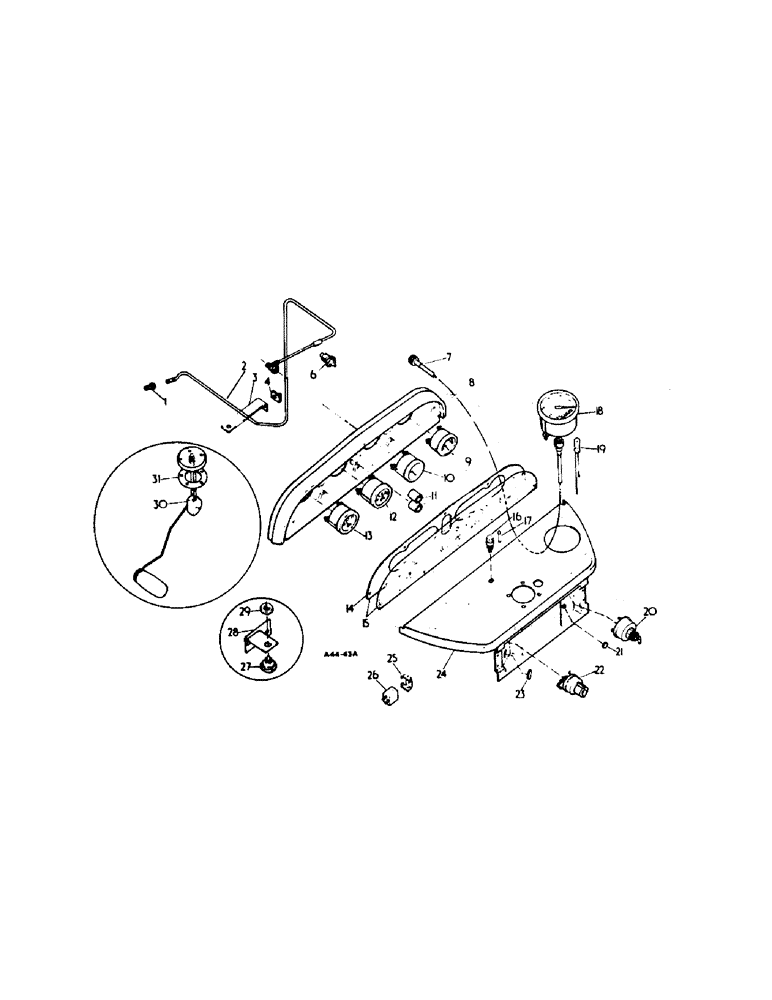

Запчасти Case IH 354 (3-22) - ELECTRICAL, ELECTRICAL INSTRUMENTS, PETROL (06) - ELECTRICAL SYSTEMS

1

222-502

TUBE NUT,7/16"-24

NUT, cpte., oil pipe coupling, optional

1шт.

700157R11

NUT

cpte., oil pipe coupling, optional

1шт.

2

3114188R1

PIPE

ASSY, oil pressure gauge

1шт.

289562C1

CLIP, oil pipe to main harness

2шт.

3

3114191R1

BRACKET, lub pipe clip

1шт.

4

533275R1

CLAMP

CLIP, oil pressure pipe

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

NSS

NOT SOLD SEPARAT

Not used

1шт.

6

3073787R91

TRANSMITTER

GAUGE, assy., temperature sender

1шт.

7

3068984R92

CABLE

cpte., flexible drive w/flex 3073798R1

1шт.

3073798R1

FLEXIBLE DRIVE SHAFT

FLEX, inner

1шт.

8

529357R2

HOUSING

instrument panel gauge

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, cap

4шт.

9

528213R1

ELECTRICAL GAUGE

GAUGE, assy., water temperature

1шт.

10

528212R1

ELECTRICAL GAUGE

GAUGE, assy., oil

1шт.

3114042R1

WASHER, union

1шт.

11

530589R1

TUBE

warning light

2шт.

12

528211R1

AMMETER

assy.

1шт.

13

528210R1

ELECTRICAL GAUGE

GAUGE, assy., fuel

1шт.

14

529360R1

GASKET

1шт.

15

3111977R91

PANEL

assy., instrument face w/gasket 529360R1

1шт.

436665

SCREW

pan hd. sltd. no. 6. - 32 x 1/2"

8шт.

16

528358R1

HOLDER

fuse, cpte., less fuse

1шт.

3064122R1

SPACER

1шт.

17

455844

FUSE,25 Amp, Type 3AG

25 amp, optional

1шт.

17

700166R1

FUSE

25 amp, optional

1шт.

707887R1

NO LONGER SERVICED

FUSE, 25 amp, optional

1шт.

18

3114146R91

TACHOMETER

hour meter

1шт.

19

529231R91

LAMP BASE

LAMP, assy., tachometer w/bulb 529233R1

1шт.

529233R1

LAMP

BULB, 12v 3w capless

1шт.

20

529800R91

SWITCH ASSY

SWITCH, assy., ignition key; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

21

3113430R1

PLUG

blanking, optional

1шт.

21

142070

PLUG,13/32"

horn button, optional

1шт.

22

376851R92

SWITCH

lighting

1шт.

23

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigar lighter button, optional

1шт.

23

538240R1

PLUG

blanking, optional

1шт.

24

3112764R1

PANEL, assy., instrument

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex. hd. 5/16" x 5/8"

4шт.

24402R1

SCREW, pan hd. tap no. 12-14 x 1/2"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

528285R1

CLIP

flasher unit

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, 10-24 x 3/8 C-Z slt pan hd. tap

1шт.

26

528284R1

RELAY

UNIT, flasher

1шт.

27

3072122R93

SWITCH

safety start

1шт.

28

3112571R1

BRACKET

cpte., safety switch support

1шт.

3114271R1

BOLT,Hex, 5/16" x 1 3/4"

hex hd. m/ x 5/16 x 1-3/4

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

3112570R1

NUT

NUT, safety start switch locking

1шт.

30

3111979R91

TRANSMITTER

GAUGE, fuel sender (Replaces 3111979R1)

1шт.

443874

BRACKET

hex no. 10-24 x 2-1/2"

5шт.

533199R1

SEALING WASHER

dowty "Selon" seal

4шт.

796002R1

COPPER WASHER

WASHER, send unit cover sealing

1шт.

31

528359R1

GASKET

fuel sender

1шт.

3127959R1

ELECTRICAL GAUGE

water temp.

1шт.

Order when using water temp. sending unit

1шт.

3127956R1

TEMPERATURE SENDER

water temp.

1шт.

Order when using water temp. sending unit

1шт.
