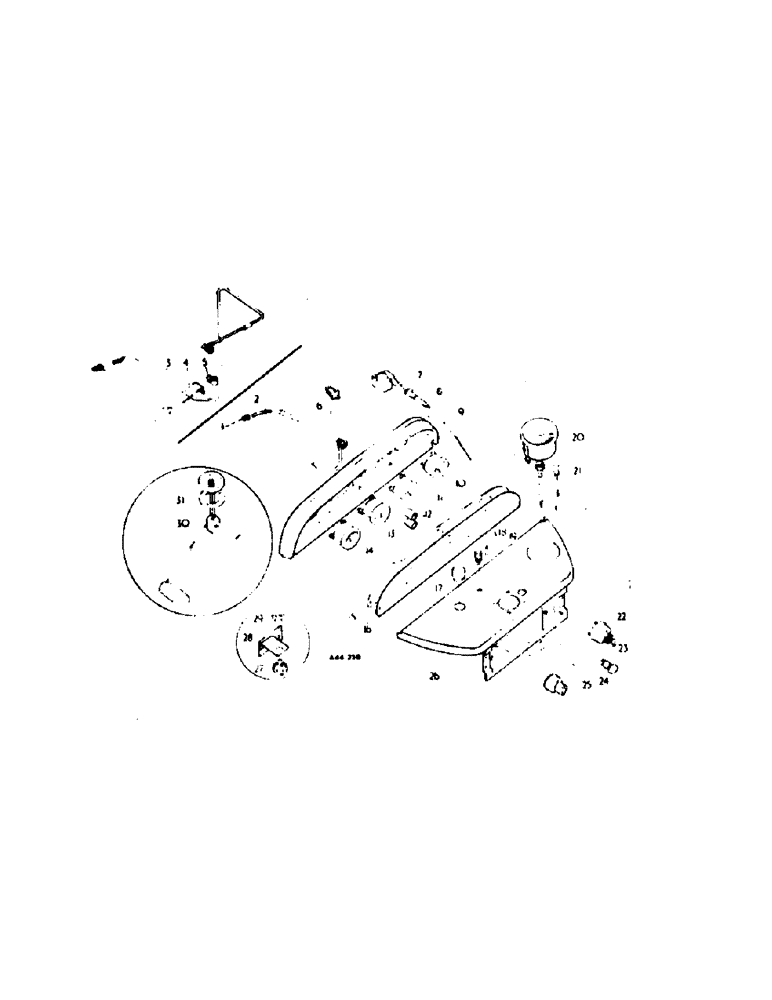

Запчасти Case IH 354 (3-20) - ELECTRICAL, ELECTRICAL INSTRUMENTS, DIESEL (06) - ELECTRICAL SYSTEMS

1

222-502

TUBE NUT,7/16"-24

NUT, cpte., oil pipe coupling, optional

1шт.

700157R11

NUT

cpte., oil pipe coupling, optional

1шт.

2

3114147R91

PIPE

ASSY, oil pressure

1шт.

289862R1

CLIP, cable oil pressure pipe

3шт.

3

3114188R1

PIPE

ASSY, oil pressure

1шт.

289862C1

CABLE TIE,3/16" x 7"

CLIP, oil pipe to main harness (U.S.A. and CANADA)

2шт.

4

3114191R1

BRACKET, lub pipe clip (U.S.A. and CANADA)

1шт.

5

533275R1

CLAMP

CLIP, oil pressure pipe

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (U.S.A. and CANADA) 5/16"

1шт.

6

3073787R91

TRANSMITTER

GAUGE, assy., temperature sender

1шт.

7

3070504R91

CASE

GEARBOX, assy.

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

3070503R92

FLEXIBLE DRIVE SHAFT

CABLE, cpte. flexible drive w/flex 3071262R1

1шт.

3071262R1

FLEXIBLE DRIVE SHAFT

FLEX, inner

1шт.

9

529357R2

HOUSING

instrument panel gauge

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, cap

4шт.

10

528213R1

ELECTRICAL GAUGE

GAUGE, assy., water temperature

1шт.

11

528212R1

ELECTRICAL GAUGE

GAUGE, assy., oil

1шт.

3115042R1

WASHER

union

1шт.

12

530589R1

TUBE

warning light

2шт.

13

528211R1

AMMETER

assy.

1шт.

14

528210R1

ELECTRICAL GAUGE

GAUGE, assy., fuel

1шт.

15

3113469R1

GASKET

1шт.

3113468R1

WASHER

fiber

1шт.

16

3111977R91

PANEL

assy., instrument face w/gasket 3113469R1 (Replaces 311977R91)

1шт.

436665

SCREW

pan hd. sltd. no. 6 - 32 x 1/2

8шт.

538239R1

PLUG

blanking fit 3/4 hole

2шт.

538240R1

PLUG

blanking fit 7/8 hole

1шт.

432281

HOLE PLUG BUTTON,29/32"

PLUG, button, optional

1шт.

538240R1

PLUG

blanking, optional

1шт.

17

3042230R91

RESISTOR

INDICATOR, resistor, optional

1шт.

3064793R91

INDICATOR

resistor, optional

1шт.

18

528358R1

HOLDER

fuse, cpte., less fuse

1шт.

3064122R1

SPACER

1шт.

19

455844

FUSE,25 Amp, Type 3AG

25 amp, optional

1шт.

19

700166R1

FUSE

25 amp, optional

1шт.

707887R1

NO LONGER SERVICED

FUSE, 25 amp, optional

1шт.

20

3112540R91

METER

TACHOMETER, hour meter

1шт.

21

529231R91

LAMP BASE

LAMP, assy., tachometer w/bulb 529233R1

1шт.

529233R1

LAMP

BULB, 12v 3w capless

1шт.

22

3109707R91

SWITCH

key 128 SA w/two key 3110259R1

1шт.

23

3110259R1

KEY

2шт.

24

3113430R1

PLUG

blanking

1шт.

24

142070

PLUG,13/32"

horn button

1шт.

24

705266R91

HORN

BUTTON, horn (for headlamp dip beam) (Austrian market)

1шт.

25

376851R92

SWITCH

lighting (USA & Canadian market)

1шт.

25

528357R1

LIGHT SWITCH

SWITCH, lighting

1шт.

26

3114110R1

PANEL, assy., instrument (Austrian market)

1шт.

26

3114093R1

PANEL, assy., instrument (U.S.A. & Canadian market)

1шт.

26

3112283R1

PANEL

assy., instrument

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex hd. 5/16 x 5/8

4шт.

24402R1

SCREW, pan hd tap no. 12-14 x 1/2

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

3072122R93

SWITCH

safety start

1шт.

28

3112571R1

BRACKET

cpte., safety switch support

1шт.

3114271R1

BOLT,Hex, 5/16" x 1 3/4"

hex hd. m/c 5/16 x 1-3/4

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex 5/16

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051 plain

2шт.

29

3112570R1

NUT

NUT, safety start switch locking

1шт.

30

3111979R1

FUEL GAUGE

GAUGE, fuel sender

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

hex no. 10-24 x 2-1/2,Course threads

5шт.

533199R1

SEALING WASHER

dowty "Selon" seal

4шт.

796002R1

COPPER WASHER

WASHER, send unit cover sealing

1шт.

31

528359R1

GASKET

fuel sender

1шт.

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigar lighter button, optional

1шт.

538240R1

PLUG

blanking, optional

1шт.

528284R1

RELAY

UNIT, flasher (U.S.A. & Canadian market)

1шт.

528285R1

CLIP

flasher unit

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, no. 10-24 x 3/8 CZ slt pan hd. tap

1шт.
