Запчасти Case IH 354 (3-18) - ELECTRICAL, HEADLAMP (06) - ELECTRICAL SYSTEMS

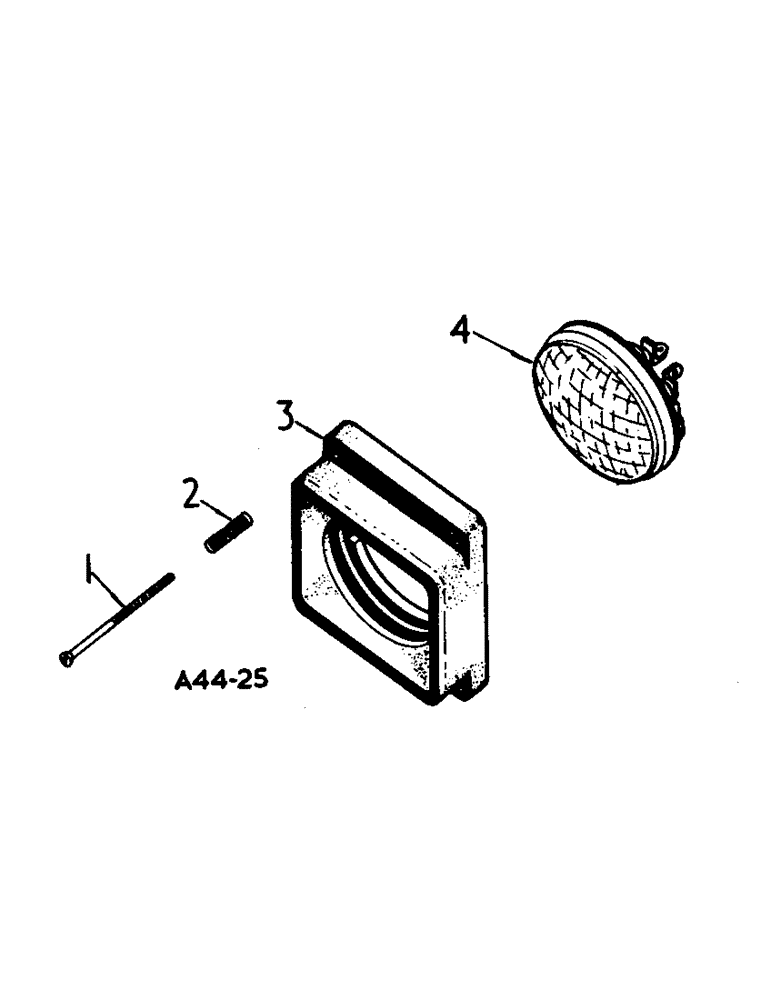

Схема запчастей Case IH 354 - (3-18) - ELECTRICAL, HEADLAMP (06) - ELECTRICAL SYSTEMS
3
4
2
1

Артикул

Название

Примечание

Количество

1

530179R1

SCREW

headlight

8шт.

2

528533R1

SPRING

head unit

8шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051

8шт.

3

528532R1

HOUSING

head unit (USA and Canadian market)

2шт.

3

537013R1

HOUSING

headlight

2шт.

537014R1

INSERT

headlight hsg.

8шт.

4

3072947R91

HEADLIGHT

UNIT, sealed beam headlight

2шт.

4

355850R1

UNIT, sealed beam headlight (USA and Canadian market)

1шт.

Выбрано товаров: 8
