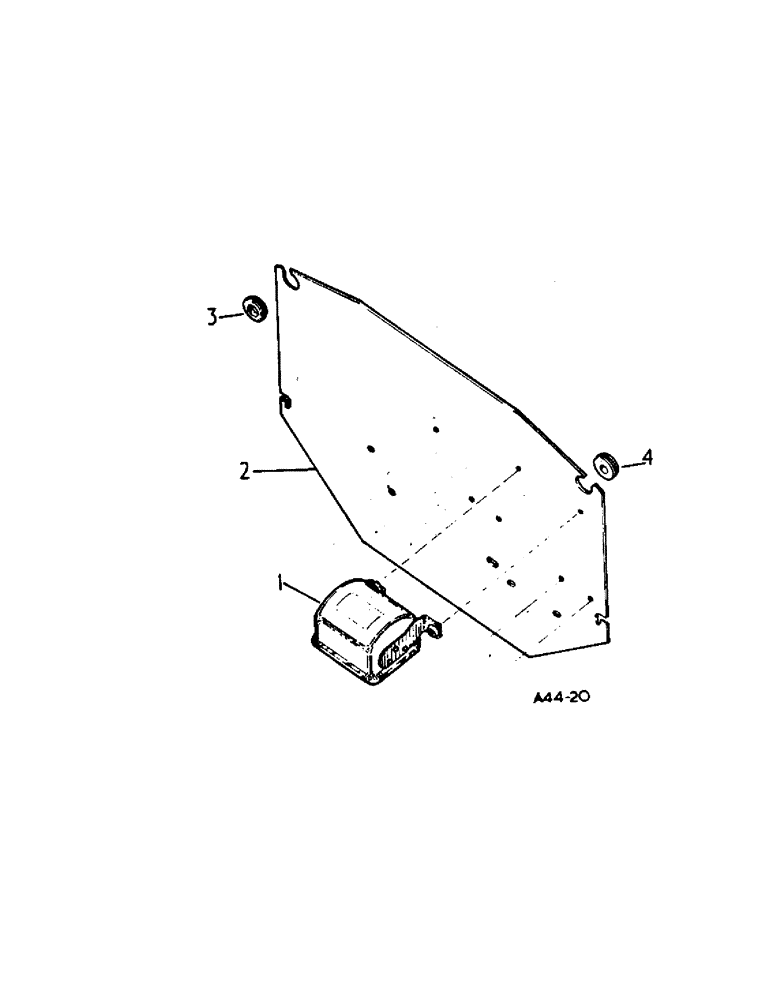

Запчасти Case IH 354 (3-17[A]) - ELECTRICAL, REGULATOR AND HEAT SHIELD, DIESEL (06) - ELECTRICAL SYSTEMS

1

3043187R92

REGULATOR

12v, and heat shield (Diesel)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Regulator and heat shield (Diesel) 1/4"-20, G5

2шт.

133043

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

rd. hd. sltd. 1/4 x 3/4, regulator and heat shield (Diesel)

2шт.

013319

WASHER, lock 1/4, regulator and heat shield (Diesel)

2шт.

2

3112290R1

SHIELD

heat, regulator (Diesel)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Regulator and heat shield (Diesel) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Regulator and heat shield (Diesel) 3/8"

2шт.

3

3114086R1

GROMMET

main harness, regulator and heat shield (Diesel)

1шт.

4

704694R1

GROMMET

fuel spill pipe, regulator and heat shield (Diesel)

1шт.

700489R1

SLEEVE

terminal, regulator and heat shield (Diesel)

4шт.
