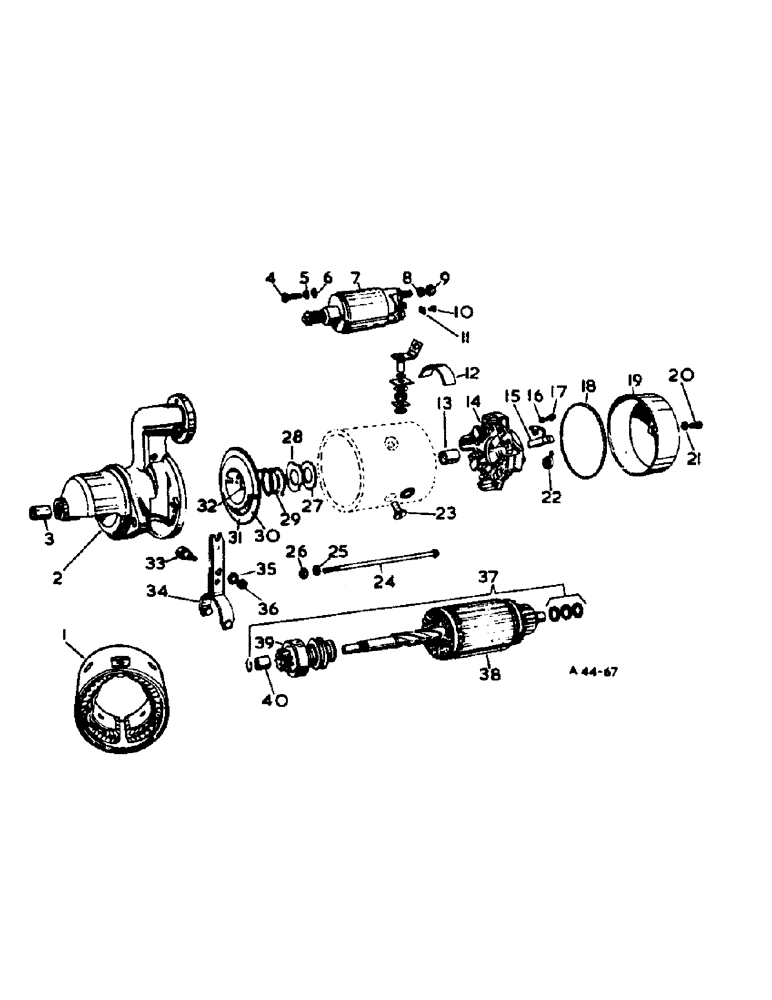

Запчасти Case IH 354 (3-15) - ELECTRICAL, STARTER MOTOR, DIESEL (06) - ELECTRICAL SYSTEMS

3114177R91

STARTER MOTOR

cpte. w/spacer (Optional w/starter motor 3046890R92)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex hd. 3/8 x 1-1/8

3шт.

3114178R1

SPACER

starter motor

1шт.

537143R1

TERMINAL CONNECTOR,Male

TERMINAL, Male

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

527689R91

STARTER MOTOR

MOTOR, starter (Bosch 1.8 P.S.) comprising:

1шт.

1

3078451R91

COIL

field winding 1 and 2 cpte.

1шт.

1

3078452R91

COIL

field winding 3 and 4 cpte.

1шт.

2

3113004R91

HOUSING

END, assy. drive

1шт.

3

3055738R1

BUSHING

drive bearing

1шт.

4

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

sltd.

3шт.

5

933986R1

LOCK WASHER,M5

3шт.

6

3132658R1

WASHER

relay cover

3шт.

7

3113006R91

SOLENOID SWITCH

RELAY

1шт.

8

934075R1

LOCK WASHER,M10

2шт.

9

933681R1

THIN NUT,Thin, M10 x 1.5, Cl 04

hex relay cover

2шт.

10

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

1шт.

11

3132763R1

TERMINAL CONNECTOR

terminal

1шт.

12

3078459R91

PACKAGE, REPAIR

KIT, terminals

1шт.

13

3078457R1

BUSHING

1шт.

14

3132635R1

END, assy., commutator

1шт.

15

3055767R91

BRUSH SET

SET, carbon brushes

1шт.

16

933994R1

LOCK WASHER,M4

WASHER, lock

4шт.

17

931399R1

BOLT,M4 x 8mm, Cl 8.8

SCREW, relay cover

4шт.

18

3055784R1

RING

C.E. packing

1шт.

19

3132656R1

X

COVER, end

1шт.

20

931400R1

SCREW,M4 x 10mm, Cl 8.8

end cover

2шт.

21

3136923R1

WASHER

2шт.

22

3055769R91

SPRING, carbon brush

4шт.

23

3078334R1

SCREW

coil body

4шт.

24

3132649R1

PIN, threaded

2шт.

25

933987R1

LOCK WASHER,M6

WASHER, lock

2шт.

26

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex

2шт.

27

3132651R1

SEALING WASHER

insulating

1шт.

28

3132652R1

COLLAR

PLATE, spring

1шт.

29

3055748R1

SPRING

helical

1шт.

30

3132650R1

BEARING

SUPPORT, intermediate

1шт.

31

3132653R1

GASKET

RING, packing

1шт.

32

3055747R1

BUSHING

bearing

1шт.

33

3132648R1

SCREW

engaging lever

1шт.

34

3132647R1

LEVER

engaging

1шт.

35

933983R1

LOCK WASHER,M6

WASHER, lock, engaging lever

1шт.

36

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Engaging Lever

1шт.

37

3132465R91

PACKAGE

KIT, armature

1шт.

38

3078456R91

ARMATURE

assy.

1шт.

39

3113005R91

DRIVE

assy.

1шт.

40

3078455R1

BUSHING

drive assy.

1шт.
