Запчасти Case IH 354 (3-06) - ELECTRICAL, GENERATOR PULLEY, FAN BELT AND BRACKET (06) - ELECTRICAL SYSTEMS

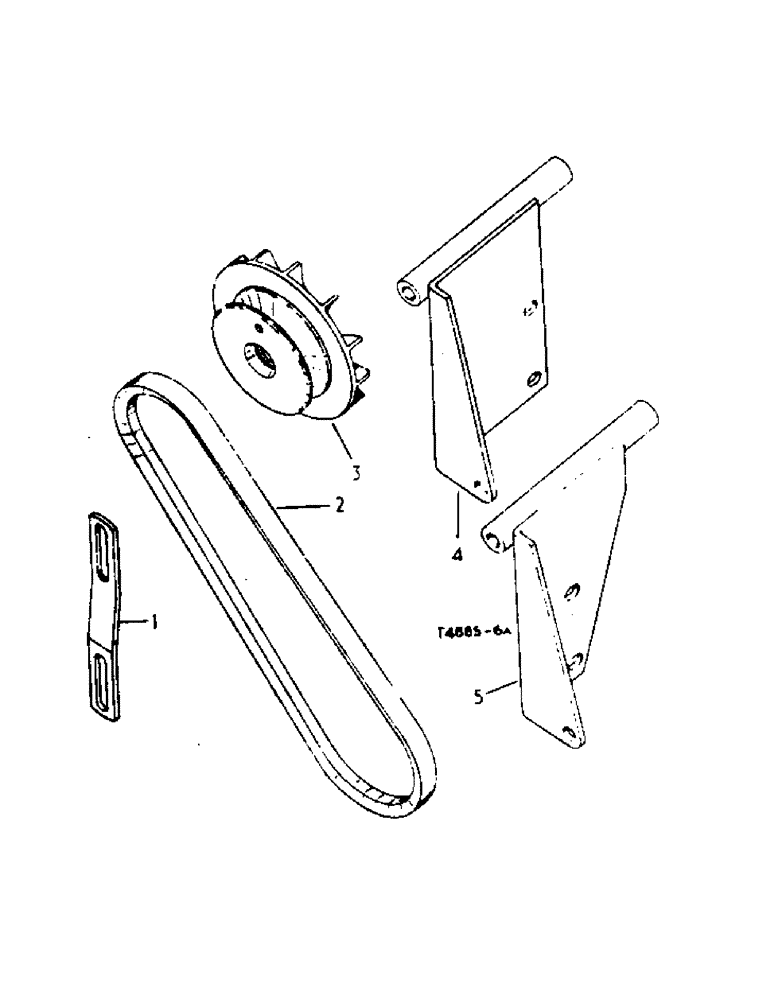

Схема запчастей Case IH 354 - (3-06) - ELECTRICAL, GENERATOR PULLEY, FAN BELT AND BRACKET (06) - ELECTRICAL SYSTEMS
3
5
4
2
1

Артикул

Название

Примечание

Количество

1

3070946R1

BRACE

generator

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

Q397

WASHER

11/32" x 3/4" x 16 ga.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

376370R1

V-BELT,0.53" W x 31.00" L

Generator, Optional 0.53" W x 31.00" L

1шт.

399480R1

BELT, generator, optional

1шт.

704449R1

BELT

BELT, Generator, Optional

1шт.

3

3070492R2

PULLEY

generator

1шт.

4

3070947R92

BRACKET

cpte., generator

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

3071188R92

BRACKET, cpte. generator (Petrol)

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

Выбрано товаров: 14
