(2-19) - PETROL ENGINE, DISTRIBUTOR WITH TACHO DRIVE

Запчасти Case IH 354 (2-19) - PETROL ENGINE, DISTRIBUTOR WITH TACHO DRIVE (01) - ENGINE

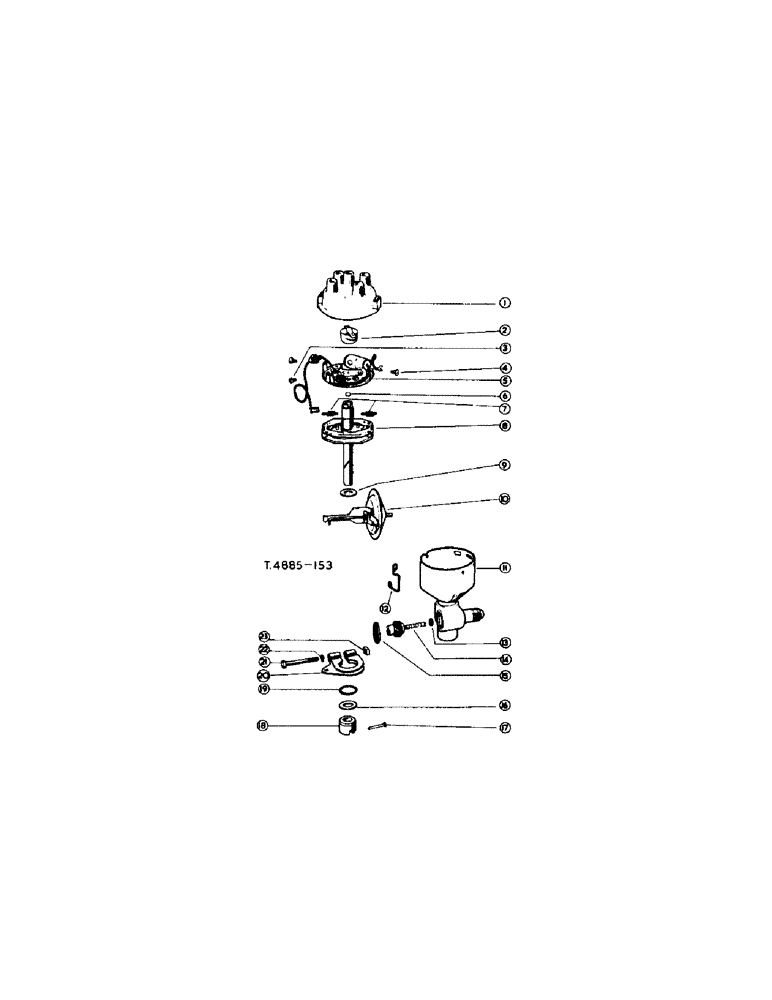

Схема запчастей Case IH 354 - (2-19) - PETROL ENGINE, DISTRIBUTOR WITH TACHO DRIVE (01) - ENGINE
21
17
22
3
10
11
8
18
16
23
13
15
14
12
6
9
20
19
7
4
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3069973R92

DISTRIBUTOR W/TACHO DRIVE, cpte., (7953342)

1шт.

1

3069777R1

CAP

CLIP, distributor

1шт.

2

3069778R1

ROTOR

1шт.

3

3073004R1

SCREW

breaker plate mtg.

1шт.

4

3069786R1

SCREW

cap clip

1шт.

5

3072997R91

BREAKER

circuit assy., (see detail list)

1шт.

6

3069781R1

WICK, oil felt

1шт.

7

3069783R91

SPRING

advance weight, set

1шт.

8

3073007R91

SHAFT

MAINSHAFT, and cam, assy.

1шт.

9

3069784R1

WASHER

1шт.

10

NSS

NOT SOLD SEPARAT

Not used

1шт.

11

3073039R91

HOUSING, assy.

1шт.

12

3069785R1

CLIP

cap

2шт.

13

3069788R1

WASHER

drive gear thrust

1шт.

14

3069789R1

GEAR

drive

1шт.

15

3069790R1

PLUG

1шт.

16

3069793R1

WASHER

lower shaft

1шт.

17

3069795R1

PIN, coupling

1шт.

18

3069794R1

COUPLING, BREAK AWAY

COUPLING

1шт.

19

3069792R1

SEALING RING

RING, oil seal

1шт.

20

3069791R91

CLAMP, housing assy., w/bolt 3069796R1, nut 3069797R1 and washer 121637

1шт.

21

3069796R1

BOLT, clamp

1шт.

22

121637

LOCK WASHER

WASHER, lock 1/4"

1шт.

23

3069797R1

NUT

clamp bolt

1шт.
