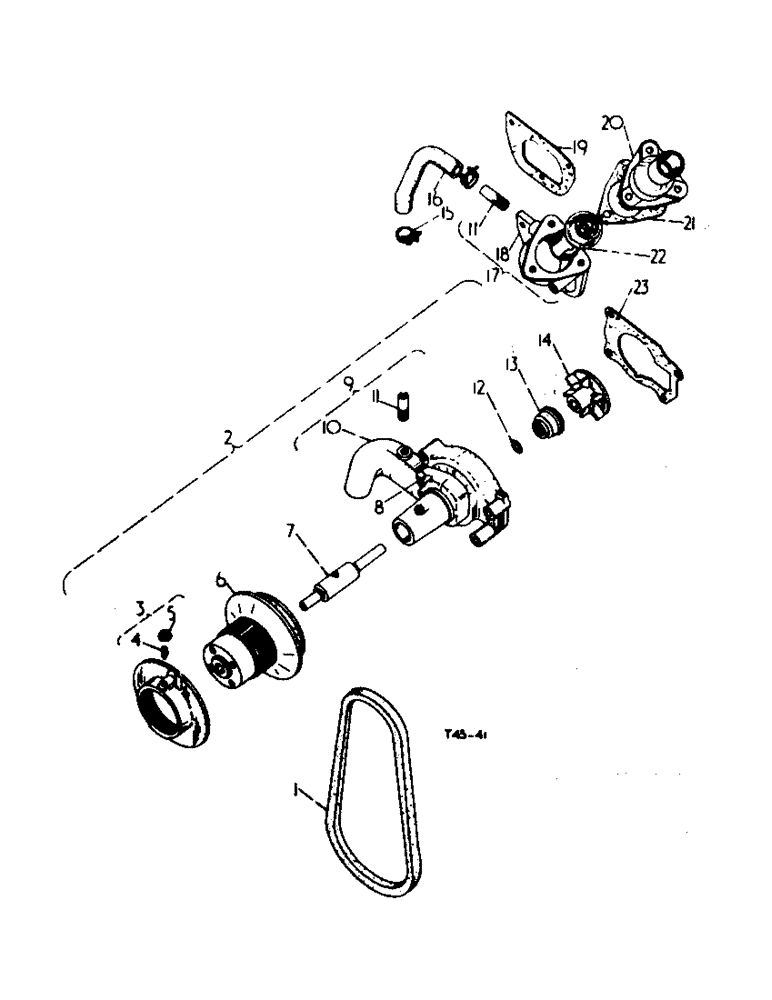

Запчасти Case IH 354 (2-17) - PETROL ENGINE, WATER PUMP AND THERMOSTAT HOUSING (01) - ENGINE

1

376371R1

V-BELT,0.64" W

Fan, Optional 0.64" W

1шт.

1

709502R1

BELT

BELT, Fan, Optional

1шт.

1

3060464R1

BELT,0.66" W

Fan (Premium grade - Special), Optional 0.66" W

1шт.

2

703820R94

WATER PUMP

PUMP, water, cpte., comprising:

1шт.

2

703820R95GV

WATER PUMP

Value, Water Pump Assy.

1шт.

3

703825R11

FLANGE

water pump pulley, cpte., w/screw 102831 and nut 114502

1шт.

4

102831

SCREW

set, dog point, headless 5/16" x 7/8"

1шт.

5

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

6

704222R1

HUB

water pump pulley, optional

1шт.

7

704217R91

NO LONGER SERVICED

BEARING, water pump spindle, optional

1шт.

7

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

water pump spindle, optional

1шт.

7

3042676R91

CRANKSHAFT BEARING

BEARING, water pump spindle, optional

1шт.

8

704218R1

BOLT,1/4" - 20 x 1/2"

retaining, water pump bearing

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

704216R41

BODY

water pump assy., w/body 704216R4, and tube 3065123R1

1шт.

10

704216R4

BODY

water pump

1шт.

11

3065123R1

TUBE

connection, thermostat by-pass

2шт.

12

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16" x 3/4" x 3/32"

1шт.

13

703822R91

SEAL

water pump

1шт.

14

709909R2

TURBINE

IMPELLOR, water pump

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

3074617R1

CLAMP

CLIP, thermostat by-pass hose

2шт.

16

3065127R1

HOSE,5.20", SAE 20R4 CLASS SC

5.20", SAE 20R4, Class SC, Thermostat By-Pass

1шт.

17

3069642R11

HOUSING

thermostat, cpte., w/tube 3065123R1 and housing 3069642R1

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

3069642R1

HOUSING

thermostat

1шт.

19

703815R1

GASKET

thermostat housing

1шт.

20

3065126R1

COVER

thermostat housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

21

3065125R1

GASKET

thermostat housing cover

1шт.

22

3042303R91

THERMOSTAT

(170 deg. F - 199 deg. F)

1шт.

23

703816R1

GASKET

water pump

1шт.

3065132R92

PUMP

PACKAGE, service, water pump (On orders for 703820R91)

1шт.

3106564R91

SERVICE KIT

PACKAGE, short water pump service comprising: (1) bearing 704217R91, (1) gasket 703816R1, (1) impellor 709909R2, (1) o-ring 352221R1, (1) seal 703822R91

1шт.
