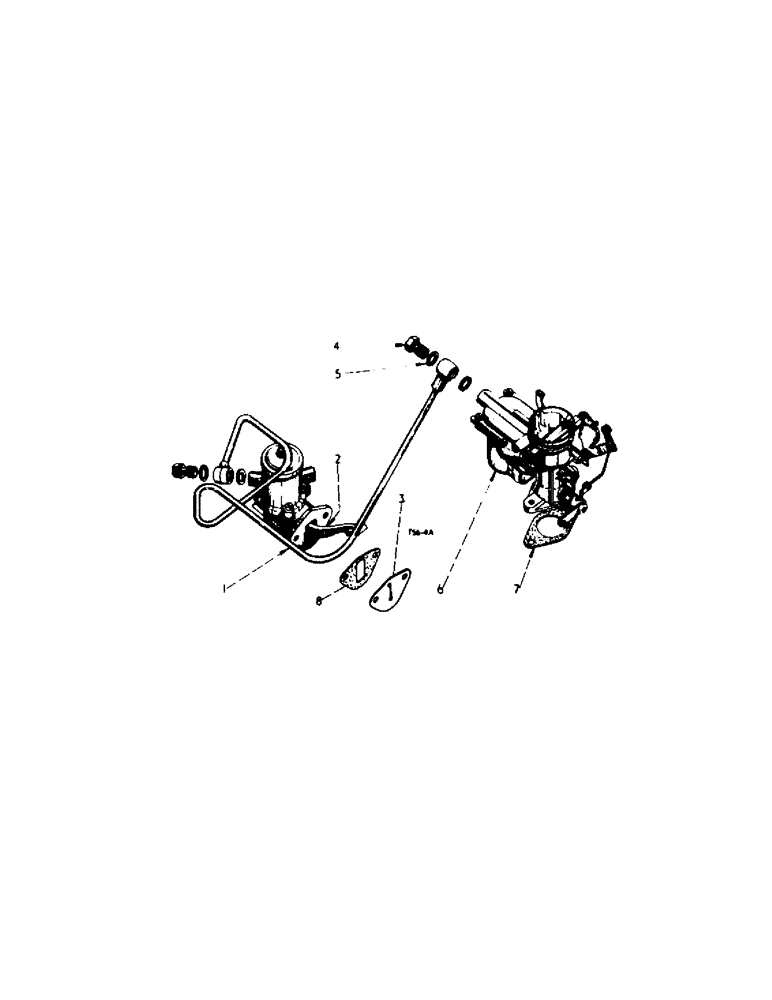

Запчасти Case IH 354 (2-11) - PETROL ENGINE, CARBURETOR, FUEL PUMP AND PIPES (01) - ENGINE

1

3044198R94

PIPE

fuel, pump to carburetor cpte.

1шт.

2

3044197R91

FUEL PUMP

PUMP, fuel assy., (see detail list)

1шт.

3063872R1

BOLT

socket hd. 5/16" x 3/4"

2шт.

3

3043370R1

GASKET

fuel pump

1шт.

4

708296R1

CONNECTOR, ELEC

BOLT, banjo, optional

2шт.

4

3070324R1

BOLT,1/2" - 20 x 1.067"

banjo, optional

2шт.

5

708297R1

GASKET

WASHER, banjo (inlet and outlet)

4шт.

6

3045515R92

CARBURETOR, cpte., (see detail list)

1шт.

425-115

NUT,5/16"-24, G5

hex 5/16" - 24 UNF

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

3047295R91

GASKET

carburetor

1шт.

8

3061658R1

GASKET

fuel pump

1шт.
