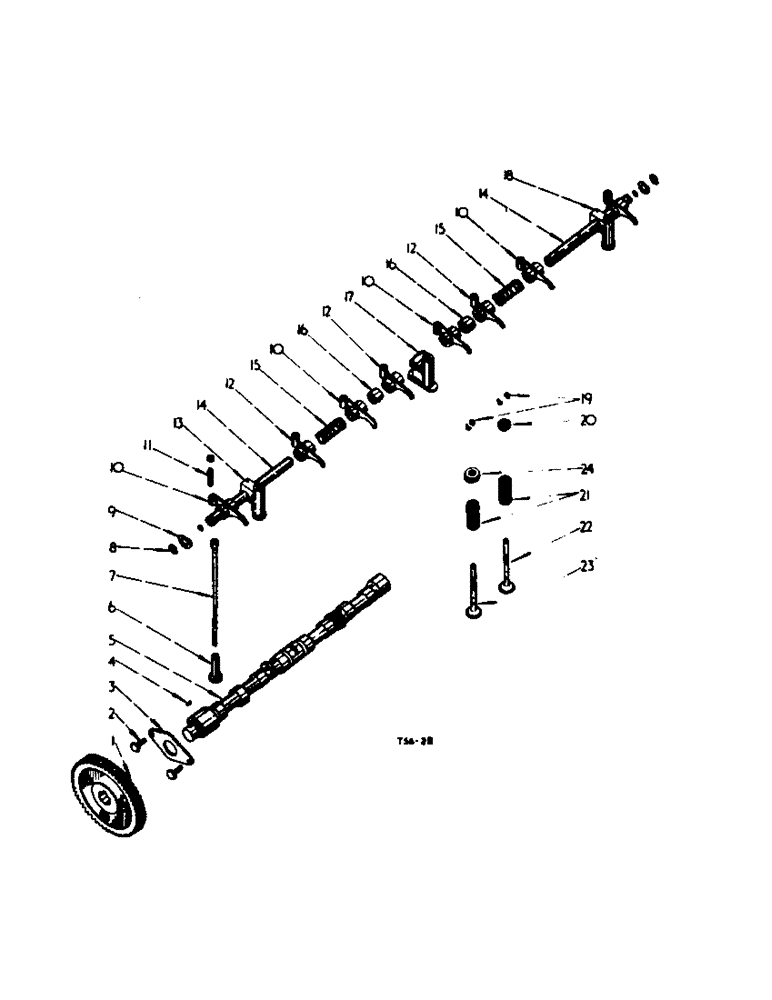

Запчасти Case IH 354 (2-04) - PETROL ENGINE, CAMSHAFT AND VALVE MECHANISM (01) - ENGINE

1

3064085R1

PINION

GEAR, camshaft (66 teeth)

1шт.

2

26058D

SCREW

camshaft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Type A Int Tooth, 3/8"

2шт.

3

43249D

PLATE

camshaft thrust

1шт.

4

218217

KEY

camshaft gear (Woodruff)

1шт.

5

3063934R1

CAMSHAFT

1шт.

5

3064086R91

GEAR

CAMSHAFT, w/camshaft 3063934R1, gear 3064085R1, key 218217 and plated 43249D

1шт.

6

704782R1

TAPPET

valve

8шт.

7

3044192R1

ROD

valve push

8шт.

8

43375D

RING

snap, valve lever shaft

2шт.

9

43374D

SPRING WASHER

spring, valve lever shaft

2шт.

10

3045211R11

LEVER

intake and exhaust valve, cpte., R.H. w/bush 24564DA

4шт.

11

3108732R1

ADJUSTMENT SCREW

valve lever adjusting

8шт.

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

12

3045210R11

LEVER

intake and exhaust valve, cpte., L.H. w/bush 24564DA

4шт.

13

703886R2

SUPPORT

BRACKET, valve lever shaft, front

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, grooved, 3/16" x 1-1/4", Type B

1шт.

14

703884R21

CAMSHAFT

SHAFT, valve lever, cpte., w/plug 172528

2шт.

172528

PLUG,Exp, 9/16"

end, valve lever shaft

2шт.

15

45949D

SPRING

valve lever

2шт.

16

703893R2

SPACER

valve lever

2шт.

17

703885R1

SUPPORT

BRACKET, valve lever shaft, center

1шт.

18

703887R2

SUPPORT

BRACKET, valve lever shaft, rear

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, grooved, 3/16" x 1-1/4", Type B

1шт.

19

3049609R1

LOCK

valve spring

16шт.

20

3049610R1

CUP, valve spring retainer

8шт.

21

3049608R1

SPRING

valve

8шт.

22

3044174R1

VALVE

intake

4шт.

23

3044175R1

VALVE

exhaust

4шт.

24

356841R91

ROTATOR

exhaust valve, assy.

4шт.

24564DA

BUSHING

BUSH, valve lever

8шт.
