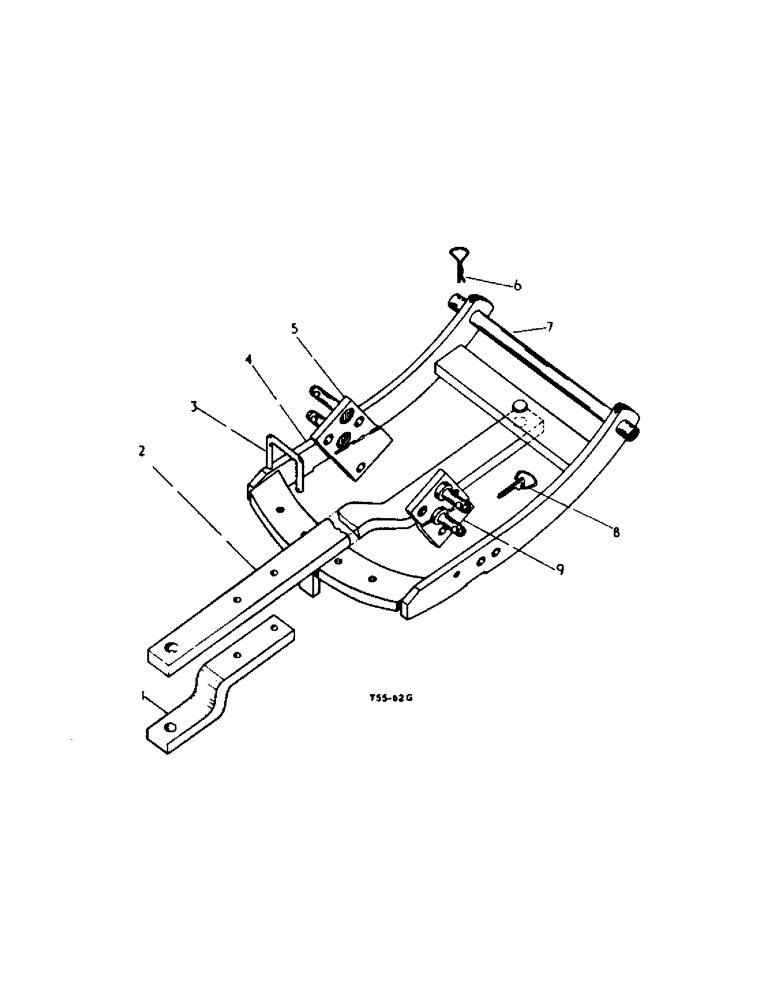

Запчасти Case IH 354 (6-05) - ATTACHMENTS, DRAWBAR ATTACHMENTS, DOMESTIC AND CANADA Attachments

NSS

NOT SOLD SEPARAT

ATTACHMENT, swinging drawbar and drawbar frame for machines fitted with vary touch hyd. (Must be fitted for use with automatic hitch 3064664R91).

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS, drawbar

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex hd. 5/8" x 2-3/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

3111194R1

BAR

DRAWBAR, swinging

1шт.

3

3071789R2

PIN

stop, swinging drawbar

1шт.

720631R1

LINCH PIN

PIN, cotter, Opt.

1шт.

520175R1

CLIP

PIN, cotter, Opt.

1шт.

4

3071323R91

FRAME

CPTE., drawbar

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex hd. 3/4" x 2-1/4"

2шт.

425-1012

NUT,3/4"-10, G5

hex 3/4"

2шт.

5

3060786R11

PLATE

drawbar support L.H.

1шт.

NLS

NO LONGER SERVICED

hex hd. 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

hex hd. 3/4 x 1-3/4

1шт.

6

3067210R1

CLIP

spring

2шт.

7

704058R1

PIN

drawbar frame

1шт.

8

517758R91

SPLIT PIN/SAFETY PIN

PIN, assy., Opt.

1шт.

8

704212R91

COTTER PIN

PIN, implement cotter CPTE., Opt.

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, implement cotter

1шт.

9

3060787R11

PLATE

drawbar support R.H.

1шт.

NLS

NO LONGER SERVICED

hex hd. 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

hex hd. 3/4 x 1-3/4

1шт.

3073934R11

RETAINER

CPTE., drawbar

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

(As required) Hex, 5/8"-11 x 1 3/4", G5

2шт.
