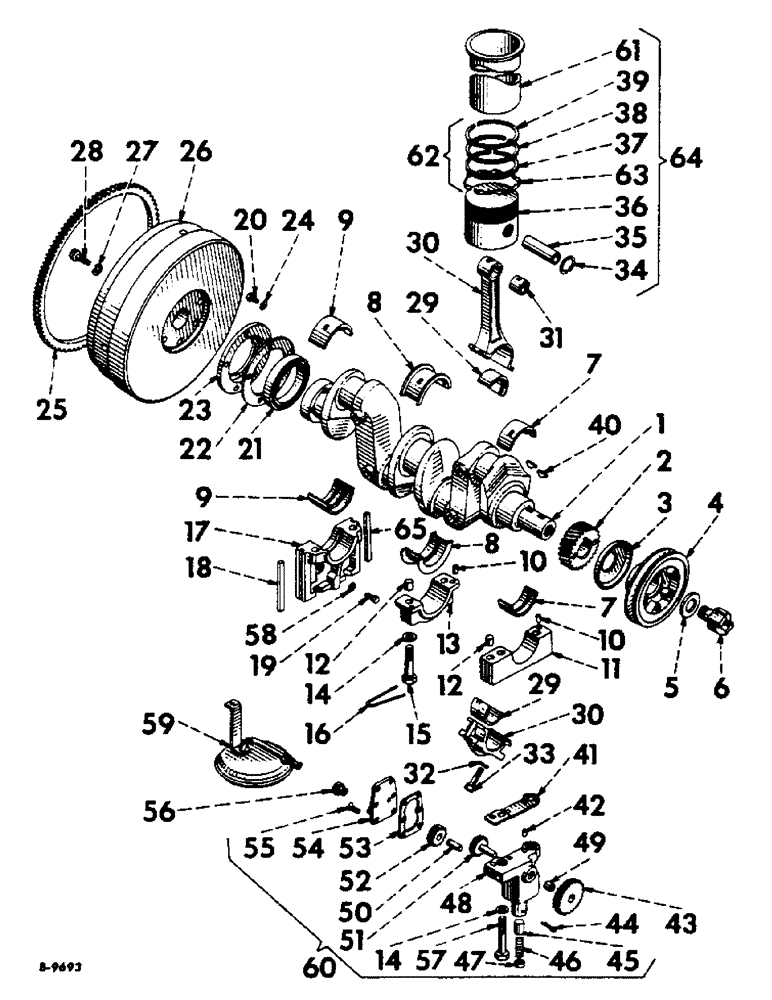

Запчасти Case IH 350 (058) - DIESEL ENGINE, CRANKSHAFT, OIL PUMP, SLEEVE SET AND RELATED PARTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
367381R1
CRANKSHAFT
1шт.
1
367714R91
CRANKSHAFT, w/bearings, assembly
1шт.
2
367385R1
GEAR, crankshaft (24 teeth)
1шт.
3
367386R1
FLINGER, crankshaft oil
1шт.
4
367387R1
PULLEY, fan drive
1шт.
5
367389R1
WASHER, crankshaft cranking jaw
1шт.
6
367388R1
JAW
crankshaft cranking
1шт.
7
367382R91
BEARING, crankshaft, front (2 halves) (Standard)
1шт.
7
368425R91
BEARING, crankshaft, front (2 halves) (.002 undersize)
1шт.
8
367383R91
BEARING
crankshaft, center (2 halves) (Standard)
1шт.
8
368426R91
BEARING, crankshaft, center (2 halves) (.002 undersize)
1шт.
9
367384R91
BEARING, crankshaft, rear (2 halves) (Standard)
1шт.
9
368427R91
BEARING, crankshaft, rear (2 halves) (.002 undersize)
1шт.
10
367417R1
DOWEL, crankshaft bearing cap (S/N D193, Serial Range: 501-1278)
3шт.
10
368385R1
DOWEL, crankshaft bearing cap (S/N D193 1279 up)
3шт.
11
CAP, crankshaft front bearing
1шт.
Part of crankcase assembly, not serviced separately.
1шт.
12
367416R1
DOWEL, crankshaft front bearing cap
1шт.
13
CAP, crankshaft center bearing
1шт.
Part of crankcase assembly, not serviced separately.
1шт.
14
368388R1
WASHER, crankshaft bearing cap
6шт.
15
367503R1
SCREW, crankshaft rear bearing cap (S/N 4 used -D193, Serial Range: 501-1278)
2шт.
15
368386R1
SCREW, crankshaft center bearing cap (S/N D193 1279 up)
2шт.
16
367418R1
WIRE, bearing cap screw lock
6шт.
17
CAP, crankshaft rear bearing and filler block
1шт.
Part of crankcase assembly, not serviced separately.
1шт.
18
367429R1
SEAL, RH, rear bearing filler, Serial Range: block-crankcase
1шт.
19
138223
SUPPORT
cap, soc-hd., 5/16-18NC x 1-1/4"
2шт.
19
138225
BEARING
SCREW, cap, soc-hd., 5-16/18NC x 1-3/4"
1шт.
95-11034
WASHER,1/4"
plain, 11/32" ID x 11/16" OD x .065
1шт.
20
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3шт.
21
367717R91
OIL SEAL
OIL SEAL, crankcase rear
1шт.
22
367427R1
GASKET
crankshaft oil seal retainer
1шт.
23
367426R91
RETAINER, crankshaft rear oil seal
1шт.
63580R1
DOWEL, oil seal retainer
2шт.
368960R1
REINFORCEMENT, oil seal retainer
1шт.
25
367042R1
GEAR
flywheel ring (134 teeth)
1шт.
26
367390R91
FLYWHEEL, w/gear, 367042R1
1шт.
27
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
28
367391R1
SCREW
, Serial Range: flywheel-crankshaft
6шт.
29
367352R91
BEARING ASSY
BEARING, connecting rod (Two halves) (Standard)
4шт.
29
368424R11
BEARING, connecting rod, upper and lower (Two halves) (.002 undersize)
4шт.
30
367349R91
ROD, connecting, w/two bolts, 367351R1, bushing, 367350R1, cap, and two washers, 138547
4шт.
31
367350R1
BUSHING
connecting rod
4шт.
32
493-21046
LOCK WASHER,Int Tooth, 7/16"
lock, internal-tooth, 7/16" (Used only with 367351R1 bolt)
8шт.
33
368961R1
BOLT, connecting rod
8шт.
34
367359R1
RING
piston pin retainer
8шт.
35
367358R1
PIN
piston (Standard)
4шт.
36
PISTON (Order cylinder sleeve, w/piston and rings, assembly)
4шт.
37
367362R1
RING, piston oil regulating (4th or bottom groove)
4шт.
38
367361R1
RING
piston compression (2nd & 3rd grooves)
8шт.
39
367360R1
RING
piston compression (Top or first groove)
4шт.
40
69003D
KEY, fan drive pulley
1шт.
40
69003D
KEY, crankshaft gear
1шт.
41
367473R1
SHIM, lubricating oil pump body to brg. cap
1шт.
42
103719
PIN, cotter, stl., 3/16" x 3/8" long
2шт.
43
367476R1
GEAR, lubricating oil pump drive (24 teeth)
1шт.
44
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
45
367481R1
VALVE, oil pressure relief
1шт.
46
367482R1
SPRING, oil pressure relief
1шт.
47
367483R1
RETAINER, oil pressure, relief valve spring
1шт.
48
367471R91
BODY, lubricating oil pump
1шт.
172527
DISC
PLUG, expansion, stl., type No. 1, 1/2"
1шт.
367472R1
PLUG, oil passage
1шт.
49
367474R1
BUSHING, lubricating oil pump drive shaft
2шт.
50
367478R1
SHAFT, lubricating oil pump idler gear
2шт.
51
367475R91
GEAR, lubricating oil pump drive, (9 teeth) w/shaft
1шт.
52
367477R1
GEAR, lubricating oil pump drive idler (9 teeth)
1шт.
53
367480R1
GASKET, lubricating oil pump cover
1шт.
54
367479R1
COVER, lubricating oil pump
1шт.
172527
DISC
PLUG, expansion, stl., Type #1, 1/2"
1шт.
55
115358
SCREW, mach., slt-hd., 1/4-20NC x 5/8"
2шт.
55
NLS
NO LONGER SERVICED
SCREW, mach., slt-hd., 1/4-20NC x 3/4"
3шт.
55
113993
ANGLE
SCREW, mach., slt-hd., 1/4-20NC x 1"
1шт.
56
137409
SHIELD
CONNECTOR, inverted flared tube, brs., internal pipe thread, 1/2" OD tubing
1шт.
57
61654R1
SCREW, crankshaft front brg. cap
2шт.
58
103025R1
WASHER
copper, oil seal retainer to filler block
3шт.
59
367484R91
SCREEN, lubricating oil pump, w/nut and tube
1шт.
179793
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
1шт.
60
367470R91
PUMP, lubricating oil, assembly, Composed of
1шт.
367471R91
BODY
1шт.
367474R1
BUSHING
2шт.
367479R1
COVER
1шт.
367480R1
GASKET
1шт.
367475R91
GEAR
1шт.
367476R1
GEAR
1шт.
367477R1
GEAR
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
172527
DISC
PLUG
3шт.
367472R1
PLUG
1шт.
367483R1
RETAINER
1шт.
115358
SCREW
2шт.
NLS
NO LONGER SERVICED
SCREW
3шт.
113993
ANGLE
SCREW
1шт.
367478R1
SHAFT
1шт.
367482R1
SPRING
1шт.
367481R1
VALVE
1шт.
61
SLEEVE, cylinder, (Order cylinder sleeve, w/piston and rings, assembly)
4шт.
62
367364R91
PISTON RING SET
RING SET, piston (Composed of twelve compression rings, four oil regulating rings and four expander rings)
1шт.
63
367363R1
RING, piston oil regulating ring expander
4шт.
64
367353R91
PISTON ASSY.
SLEEVE SET, crankcase, (Consists of four sleeves, w/pistons and rings, 367354R91)
1шт.
64
367354R91
SLEEVE ASSY
SLEEVE, cylinder, w/piston and rings, assembly, Composed Of
4шт.
NSS
NOT SOLD SEPARAT
PISTON
1шт.
367358R1
PIN
1шт.
367359R1
RING
4шт.
367360R1
RING
1шт.
367361R1
RING
4шт.
367362R1
RING
1шт.
367363R1
RING
1шт.
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
65
367428R1
SEAL, LH, rear bearing filler, Serial Range: block-crankcase
1шт.
368115R91
BEARING SET, crankshaft, Composed Of
1шт.
367382R91
BEARING
1шт.
367383R91
BEARING
1шт.
367384R91
BEARING
1шт.
Выбрано товаров: 116
