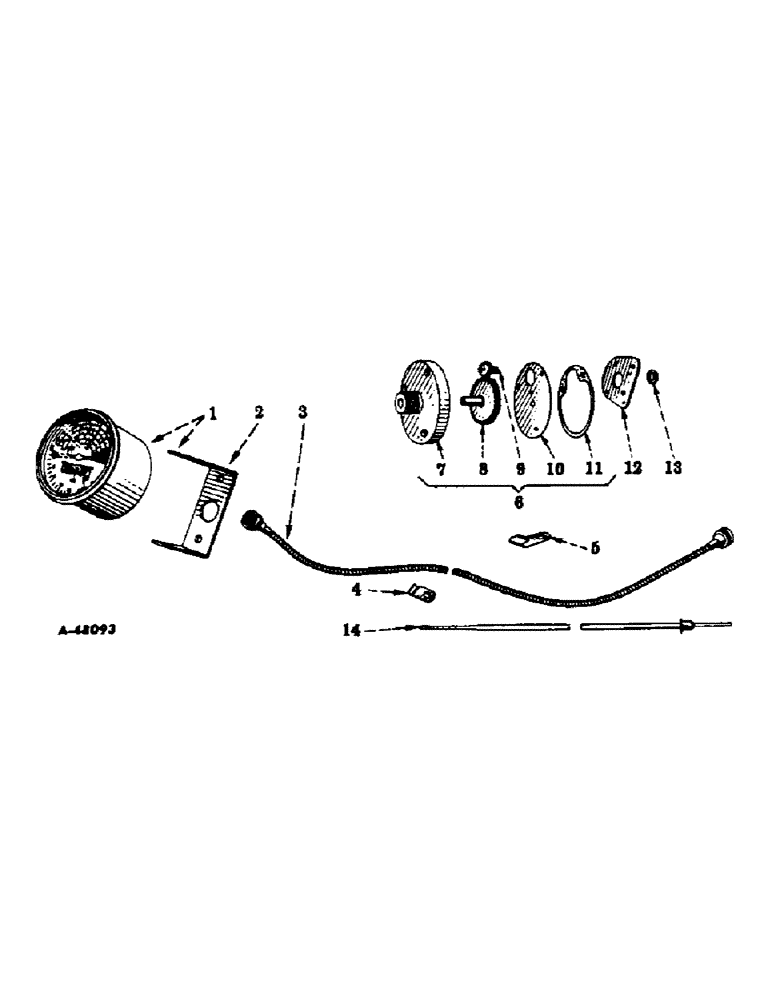

Запчасти Case IH 350 (354) - ATTACHMENTS, TACHOMETER, SPECIAL, FOR INTERNATIONAL 350 DIESEL ENGINE TRACTORS Attachments

367770R91

1шт.

TACHOMETER PARTS ACCESSORY (For all tractors except hi-clear or hi-utility models equipped with torque amplifier and/or independent power take-off) (When torque amplifier and/or independent power take-off attachments are applied to tractors equipped with this parts accessory, tachometer, 367144R91 must be ordered (Column A)

1шт.

367771R91

TACHOMETER

PARTS ACCESSORY (For all tractors except hi-clear or hi-utility models equipped with transmission driven power take-off without torque amplifier) (Column B)

1шт.

368905R91

TACHOMETER

PARTS ACCESSORY (For all hi-clear or hi-utility tractors equipped with torque amplifier and/or independent power take-off) (Column C)

1шт.

368907R91

TACHOMETER

PARTS ACCESSORY (For all hi-clear or hi-utility tractors equipped with transmission driven power take-off without torque amplifier) (Column D)

1шт.

CONSISTS OF ALL THE PARTS LISTED BELOW, AS NOTED -

1шт.

1

367144R91

TACHOMETER, w/clamp, 364482R1, two nuts, 120614, and two washers, 138479 [A]

1шт.

1

367145R91

TACHOMETER, w/clamp, 364482R1, two nuts, 120614, and two washers, 138479 [B]

1шт.

1

368908R91

TACHOMETER, w/clamp, 364482R1, two nuts, 120614, and two washers, 138479 [C]

1шт.

1

368909R91

TACHOMETER, w/clamp, 364482R1, two nuts, 120614, and two washers, 138479 [D]

1шт.

2

364482R1

CLAMP, tachometer mounting

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

138479

PLUG

WASHER, lock, external-tooth, cd-pltd., No. 10

2шт.

3

363811R92

CABLE

CONDUIT, tachometer, flexible drive shaft, w/core, 368106R91, and two mounting nuts

1шт.

4

CLAMP, tachometer drive conduit (Use the choke control clamp)

1шт.

5

363812R1

CLIP, tachometer drive conduit (Use on fuel tank front support RH attaching screw or filter LH attaching screw)

1шт.

6

367150R91

DRIVE, tachometer, assembly, Composed Of

1шт.

368118R1

GASKET

1шт.

368119R1

GEAR

1шт.

368120R1

GEAR AND SHAFT

1шт.

368116R1

HOUSING

1шт.

368117R1

PLATE

1шт.

7

368116R1

HOUSING, tachometer drive

1шт.

8

368120R1

GEAR AND SHAFT, tachometer drive

1шт.

9

368119R1

GEAR, tachometer drive

1шт.

10

368117R1

PLATE, tachometer drive housing

1шт.

11

368118R1

GASKET, tachometer drive housing plate

1шт.

12

367148R1

PLATE, adapter, tachometer drive

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

mach., f-hd., No. 8-32NC x 5/8"

3шт.

13

367149R1

SPACER, tachometer drive gear

1шт.

14

368106R91

CORE

tachometer drive shaft, assembly

1шт.
