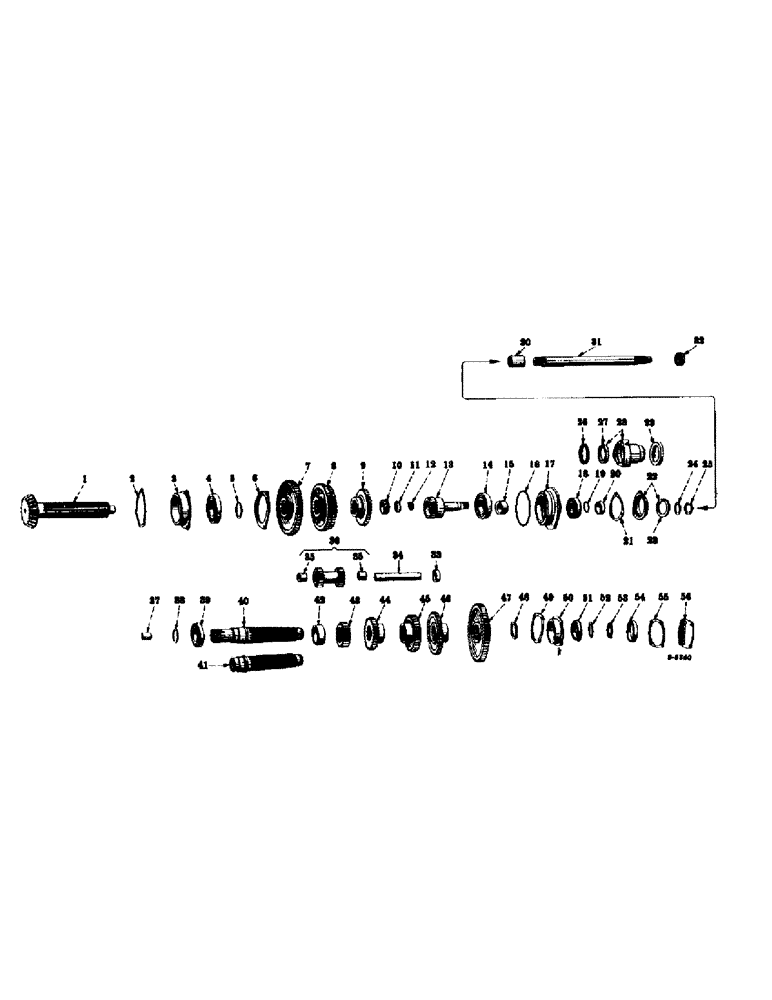

Запчасти Case IH 350 (226) - CHASSIS, TRANSMISSION (12) - CHASSIS

1

360565R1

SHAFT, transmission main, w/pinion (16 teeth) (For all tractors except Hi-Clear or Hi-Utility models)

1шт.

1

362569R1

SHAFT, transmission main, w/pinion (15 teeth) (For Hi-Clear or Hi-Utility Tractors)

1шт.

2

363751R1

SHIM

transmission main shaft bearing cage, extra light (.003")

1шт.

2

360569R1

SHIM

transmission main shaft bearing cage, light (.007")

1шт.

2

360570R1

SHIM

transmission main shaft bearing cage, medium (.015")

1шт.

2

360571R1

SHIM

transmission main shaft bearing cage, heavy (.030")

1шт.

3

360568R1

CAGE, transmission main shaft rear bearing

1шт.

4

ST227A

BEARING, ball (Transmission main shaft rear)

1шт.

5

357194R1

RING

snap, transmission main shaft rear bearing

1шт.

6

360572R1

RETAINER, transmission main shaft rear bearing

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

7

360573R1

GEAR

sliding, first and reverse speed (55 teeth)

1шт.

8

360564R1

GEAR

sliding, second and third speed (47 and 41 teeth)

1шт.

9

360574R1

GEAR

sliding, fourth and fifth speed (36 and 20 teeth)

1шт.

10

53323DA

BEARING ASSY,30mm ID x 54.04mm OD x 24.9mm W

BEARING, cylindrical roller unit, w/inner race (Transmission main shaft pilot)

1шт.

11

360575R1

WASHER, transmission main shaft pilot bearing retainer

1шт.

12

360576R1

PLATE, lock, transmission main shaft pilot bearing retainer screw

1шт.

181394

BOLT,Hex, 7/16" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 7/8"

1шт.

13

361674R1

GEAR

SHAFT, transmission driving, w/integral gear, (20 teeth) (See Note A)

1шт.

14

ST206

BEARING, BALL,40mm ID x 90mm OD x 23mm W

(Transmission driving shaft, rear) (See Note A)

1шт.

15

360493R1

BUSHING

SPACER, driving shaft bearing (See Note A)

1шт.

16

360497R1

RING

seal, transmission driving shaft front bearing cage (See Note A)

1шт.

17

360496R1

CAGE

transmission driving shaft front bearing (See Note A)

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8" (See Note A)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note A) 3/8"

4шт.

18

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

w/snap ring (Transmission driving shaft, front) (See Note A)

1шт.

19

360494R1

RING

seal transmission driving shaft front bearing spacer (See Note A)

1шт.

20

360495R1

SPACER, transmission driving shaft front bearing (1-3/8" I.D. x 1-7/8" O.D. x 3/4") (See Notes A and B)

1шт.

20

360740R1

BUSHING

SPACER, transmission driving shaft fron bearing (1-3/8" I.D. x 2-1/4" O.D. x 3/4") (For tractors equipped with independent power take-off drive) (See Note A)

1шт.

21

360498R1

GASKET

transmission driving shaft front bearing retainer (See Note A)

1шт.

22

360499R11

RETAINER

transmission driving shaft front bearing w/oil seal, 49177D (See Notes A and B)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (See Notes A and B)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Notes A and B) 3/8"

3шт.

23

49177D

SEAL

OIL SEAL, transmission driving shaft (See Notes A and B)

1шт.

24

358875R1

WASHER

transmission driving shaft front bearing nut (See Note A)

1шт.

25

358876R1

LOCK NUT

transmission driving shaft front bearing lock (See Note A)

1шт.

26

360741R1

WASHER

SPACER, transmission driving shaft bearing retainer (For tractors equipped with independent power take-off drive) (See Note A)

1шт.

27

56630H

SEAL

OIL SEAL, transmission driving shaft (For tractors equipped with independent power take-off drive) (See Note A)

1шт.

28

360739R11

HUB

RETAINER, transmission driving shaft front bearing, w/oil seal, 56630H (For tractors equipped with independent power take-off drive) (See Note A)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(See Note A) Hex, 3/8"-16 x 1", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note A) 3/8"

3шт.

29

361248R92

OIL SEAL

OIL SEAL, transmission drive shaft front bearing retainer (For tractors equipped with independent power take-off drive)

1шт.

30

358878R1

SLEEVE

COUPLING, transmission driving shaft (See Note A)

1шт.

31

360491R2

SHAFT

transmission main drive (See Note A)

1шт.

32

ST575

BEARING, BALL,20mm ID x 52mm OD x 15mm W

(Transmission main drive shaft pilot bearing)

1шт.

33

361314R1

PLUG, reverse idler shaft cup (In rear frame) (See Notes A and B)

1шт.

34

360577R1

SHAFT

reverse idler

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd, 3/8-24NF x 3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

43312DA

BUSHING,28.39mm ID x 31.69mm OD x 31.75mm L

reverse idler gear

2шт.

36

360578R12

GEAR, reverse idler (21 and 22 teeth) w/two bushing, 43312DA

1шт.

37

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, power take-off shaft (See Notes A and B)

1шт.

38

358236R1

RING

snap, countershaft rear bearing

1шт.

39

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

(Countershaft, rear)

1шт.

40

360557R11

COUNTERSHAFT, transmission, assembly (See Notes A and B), Composed Of

1шт.

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING

1шт.

360559R1

PIN (NSS)

1шт.

360557R1

SHAFT (NSS)

1шт.

360558R1

STUB SHAFT (NSS)

1шт.

41

360671R1

COUNTERSHAFT, transmission (Will work for 360557R1) (For tractors equipped with independent power take-off drive or torque amplifier)

1шт.

42

360560R1

SPACER, first speed driving gear

1шт.

43

360561R1

GEAR, driving, first speed (26 teeth)

1шт.

44

360562R1

WHEEL

GEAR, driving, second speed (34 teeth)

1шт.

45

360563R1

GEAR

driving, third speed (40 teeth)

1шт.

46

360566R1

GEAR

driving, fourth speed (45 teeth)

1шт.

47

360567R1

GEAR

constant mesh (61 teeth)

1шт.

48

358847R1

SPACER, constant mesh gear

1шт.

49

358850R1

GASKET

countershaft front bearing cage

1шт.

50

358849R2

CAGE, countershaft front bearing

1шт.

51

ST561

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

BEARING, ball, w/snap ring (Countershaft, front)

1шт.

52

358852R1

WASHER

LOCK, countershaft front bearing nut

1шт.

53

358853R1

BEARING LOCK NUT

countershaft front bearing

1шт.

54

358848R1

SPACER, countershaft front bearing (See Notes A and B)

1шт.

55

358850R1

GASKET

countershaft front bearing cap (See Notes A and B)

1шт.

56

358851R1

CAP, countershaft front bearing (See Notes A and B)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

365798R1

FLUID

ADDITIVE, torque amplifier and transmission lubricant - for all weather use (Gallon can)

1шт.
