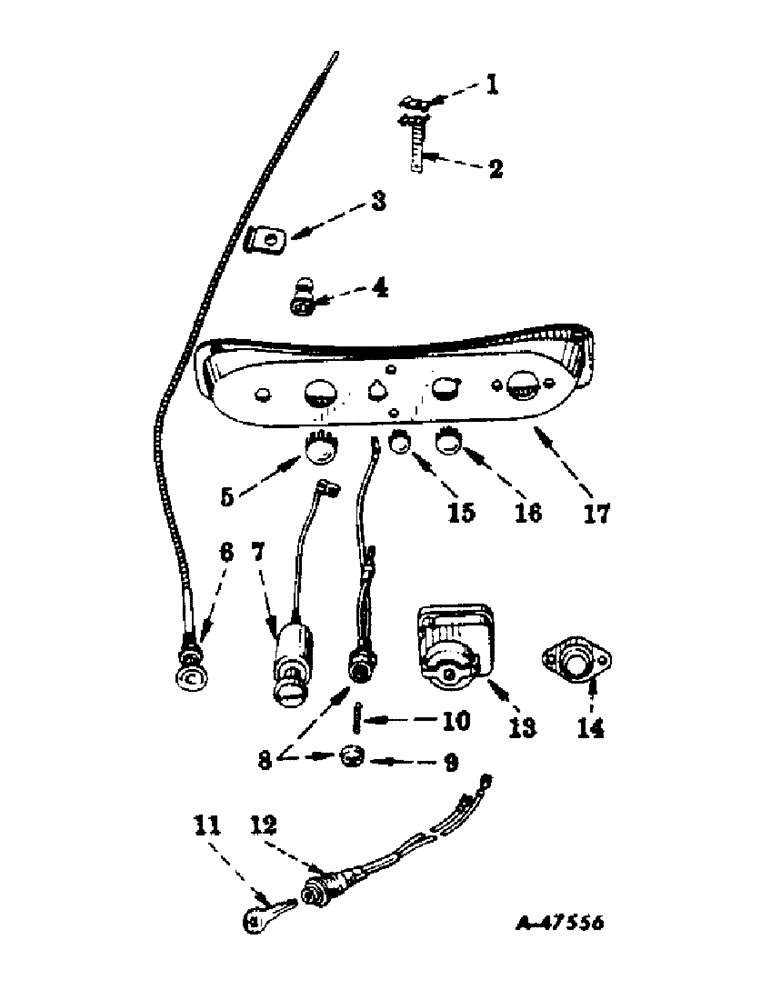

Запчасти Case IH 350 (200) - CHASSIS, ENGINE CONTROLS, FOR INTERNATIONAL 350 SERIES UTILITY TRACTORS (12) - CHASSIS

1

32596D

FASTENER

CLAMP, fuel shut-off control tubing (Not illustrated)

1шт.

120611

NUT,#10 - 32

sq., cd-pltd., No. 10-32NF

1шт.

132119

SCREW

mach., slotted-fil-hd., cd-pltd., No. 10-32NF x 5/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

367248R11

BRACKET, fuel shut-off control tubing (On fuel filter and attaching screw)

1шт.

3

362426R1

CLAMP, choke control (On battery to solenoid switch cable clamp screw) (For distillate or gasoline burning engine tractors)

1шт.

3

355574R1

CLIP

choke control (On steering gear housing trunnion cover attaching screw) (For Liquefied Petroleum Gas burning engine tractors)

1шт.

4

SWITCH, intake manifold in heater assembly (Special) (Refer to the "Intake Manifold Air Heater" unit)

1шт.

5

432281

HOLE PLUG BUTTON,29/32"

PLUG, button cr-pltd., (Used to plug hole for cigarette lighter on tractors without cigarette lighter) 29/32"

1шт.

6

362425R93

CABLE

CONTROL, choke, w/nut, plunger, tubing and washer (For distillate or gasoline burning engine tractors)

1шт.

6

365801R92

CABLE

CONTROL, choke, w/nut, plunger, tubing and washer (For Liquefied Petroleum Gas burning engine tractors)

1шт.

6

366798R91

CONTROL, fuel shut-off, w/nut, plunger, tubing and washer (For diesel engine tractors)

1шт.

7

LIGHTER, cigarette assembly (Special) (Refer to the "Cigarette Lighter" unit)

1шт.

8

362669R91

HOUSING

fuse, w/two cables, knob, 356445R91 nut, and washer (See Note A)

1шт.

9

356445R91

KNOB

fuse holder (See Note A)

1шт.

10

106653

FUSE

type AGC, 20 amp. (See Note A) (For distillate or gasoline burning engine tractors)

1шт.

10

10815V

FUSE

cartridge type (See Note A) (For diesel or Liquefied Petroleum Gas burning engine tractors)

1шт.

11

KEY, switch (Purchase locally)

1шт.

12

366313R91

SWITCH

lock w/two cables and two keys

1шт.

365502R1

NUT

ignition lock switch mounting

1шт.

13

SWITCH, lighting, assembly (See Note A) (Refer to the "Lighting System Unit")

1шт.

14

366316R91

SWITCH

push button starting, assembly (IH) (For components see list of parts under details of "Push Button Starting Switch") (Optional with 366317R91)

1шт.

14

366317R91

IGNITION SWITCH

SWITCH, push button starting, assembly (Indak Mfg. Corp.) (Optional with 366316R91), Composed Of

1шт.

120611

NUT,#10 - 32

2шт.

131958

ELBOW

SCREW

2шт.

132903

ADAPTER

SCREW

2шт.

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120611

NUT,#10 - 32

sq., cd-pltd., No. 10-32NF

2шт.

131958

ELBOW

SCREW, mach., slotted-fil-hd., cd-pltd., No. 8-32NC x 5/16" (Terminal screw for switch, 366317R91)

1шт.

132903

ADAPTER

SCREW, slotted-rd-hd., cd-pltd., No. 10-32NF x 7/16" (One used on tractors equipped with magneto ignition)

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, (Used on terminal screw, 131958) #8

2шт.

15

432466

BEVEL PINION

PLUG, button, cr-pltd., 17/32" (Used to plug hole for fuse housing on tractors without lighting system)

1шт.

16

432600

PLUG, button, cr-pltd., 23/32" (Used to plug hole for lighting switch on tractors without lighting system)

1шт.

17

366310R1

PANEL, instrument

1шт.

120222

SCREW, mach., slotted-rd-hd., cd-pltd., No. 10-24NF x 5/8" (See Note C)

1шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

mach., slotted-rd-hd., cd-pltd., No. 10-24NF x 3/8" (See Note C)

2шт.

132863

SUPPORT,Slotted Rd Hd, #10-24 x 2"

SCREW, mach., slotted-rd-hd., cd-pltd., No. 10-24NF x 2" (See Note C)

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, mach., slotted-rd-hd., cd-pltd., No. 10-32NF x 3/8" (See Note B)

2шт.

132911

SCREW, mach., slotted-rd-hd., cd-pltd., No. 10-32NF x 5/8" (See Note B)

1шт.

132938

DISC

SCREW, mach., slotted-rd-hd., cd-pltd., No. 10-32NF x 2" (See Note B)

1шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.
