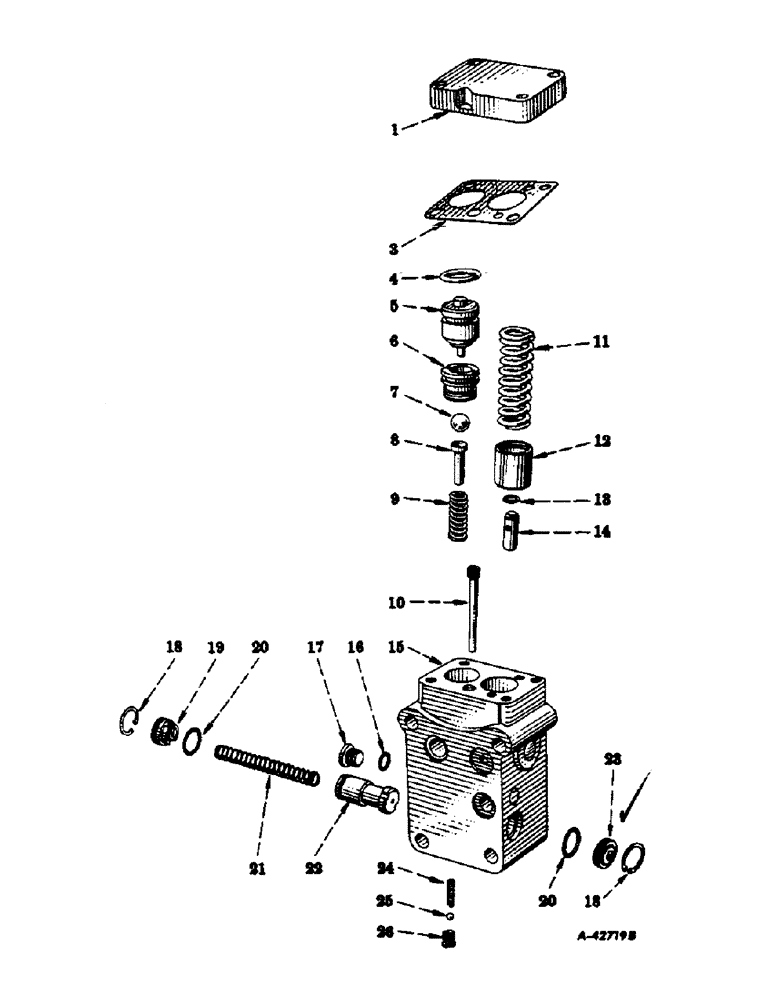

Запчасти Case IH 350 (312) - HYDRAULIC SYSTEM, REGULATOR SAFETY AND FLOW CONTROL VALVE, CONTINUED (07) - HYDRAULIC SYSTEM

364841R95

VALVE, regulator, safety, and flow control, assembly

1шт.

1

366666R91

PACKAGE, service, regulator, safety, and flow control valve housing cover (Used w/housing, (NSS) 364844R1 - See Note A), Composed Of

1шт.

360629R21

COVER

1шт.

360630R1

GASKET

1шт.

366638R91

PISTON

1шт.

352024R2

O-RING,0.551" ID x 0.07" Width

SEAL

1шт.

366665R1

FITTING

SEAT

1шт.

1

360629R21

COVER

regulator, safety, and flow control valve housing

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

cap, hex-hd., cd-pltd., 5/16-18NC x 1-1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

360630R1

GASKET

regulator, safety, and flow control valve housing cover

1шт.

4

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, regulator valve piston

1шт.

5

352940R21

PISTON ASSY.

PISTON, regulator valve, w/retainer, rod and spring (Used w/housing, (NSS) 364844R1 - See Note A - order package, 366650R91)

1шт.

5

366638R91

PISTON

regulator valve, w/retainer, rod and spring (Used w/housings, (NSS) 364844R2, R3 and R4 - See Note A)

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" ID x 1-1/16" OD x No. 13 ga. (Used under the piston when it is reversed 180 degrees when used with allied equipment) (Not included with the valve, assembly)

2шт.

6

360628R1

SEAT

regulator valve (Used w/housing, (NSS) 364844R1 - See Note A - order package, 366650R91)

1шт.

6

366665R1

FITTING

SEAT, regulator valve (Used w/housings, (NSS) 364844R2, R3 and R4 - See Note A)

1шт.

7

17018R1

BALL,9/16" Dia

1шт.

8

350084R2

SEAT

RIDER, regulator valve ball

1шт.

9

352026R2

SPRING

regulator valve ball rider

1шт.

10

370766R91

PLUG

AND SCREEN, safety valve orifice

1шт.

11

360626R2

SPRING

safety valve

1шт.

12

360627R2

RETAINER

safety valve spring

1шт.

13

354854R2

RING

snap, safety valve piston

1шт.

14

361023R1

PISTON

safety valve

1шт.

15

364842R95

HOUSING, regulator, safety, and flow control valve, assembly (When replacing housing, (NSS) 364844R1 - See Note A - package, 366650R91, should also be ordered) (For International 350 Utility Tractor) (S/N 4940 up), Composed Of

1шт.

364844R4

HOUSING (NSS)

1шт.

360623R1

PLUG (NSS)

2шт.

366641R1

PLUG (NSS)

1шт.

9410359

PLUG

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

RING

1шт.

367832R1

VALVE (NSS)

1шт.

15

367974R92

PACKAGE, service, regulator, safety, and flow control valve, housing, 364842R95 and spring, 367833R1) (For International 300 Series Utility Tractors)

1шт.

15

367974R92

PACKAGE, service, regulator, safety, and flow control valve, housing, 364842R95 and spring, 367833R1) (For International 350 Series Utility Tractors) (S/N, Serial Range: 501-4939)

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, regulator, safety and flow control valve housing plug (used with plug, 364845R1)

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

RING, seal, regulator, safety, and flow control valve housing (Used with plug, 9410359)

1шт.

17

364845R1

PLUG, regulator, safety, and flow control valve housing (9/16NF thread)

1шт.

17

9410359

PLUG

regulator, safety, and flow control valve housing (3/4NF thread)

1шт.

18

364838R1

SNAP RING,0.938", Int, #93

Ring, Snap, , flow control valve 0.938", Int, #93

2шт.

19

364848R11

RETAINER

w/pin, flow control valve spring

1шт.

20

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

RING, seal, flow control valve spring retainer

2шт.

21

364847R1

SPRING

flow control valve (For International 300 Series Utility Tractor)

1шт.

21

364847R1

SPRING

flow control valve (For International 350 Series Utility Tractor) (S/N, Serial Range: 501-4939)

1шт.

21

367833R1

SPRING

flow control valve (For International 350 Series Utility Tractors) (S/N 4940 up)

1шт.

22

VALVE, flow control (Not serviced separately - order housing assembly)

1шт.

23

364846R1

RETAINER

flow control valve

1шт.

24

365348R1

SPRING

auxiliary, safety valve

1шт.

25

16006R1

BALL

cr-stl., grade 2, 3/16"

1шт.

26

365347R1

SEAL, auxiliary, safety, valve

1шт.

366650R91

PACKAGE

service, regulator valve piston (Will work for piston, 352940R21 and seat, 360628R1), Composed Of

1шт.

360630R1

GASKET

1шт.

366638R91

PISTON

1шт.

352042R2

SEAL

1шт.

366665R1

FITTING

SEAT

1шт.
