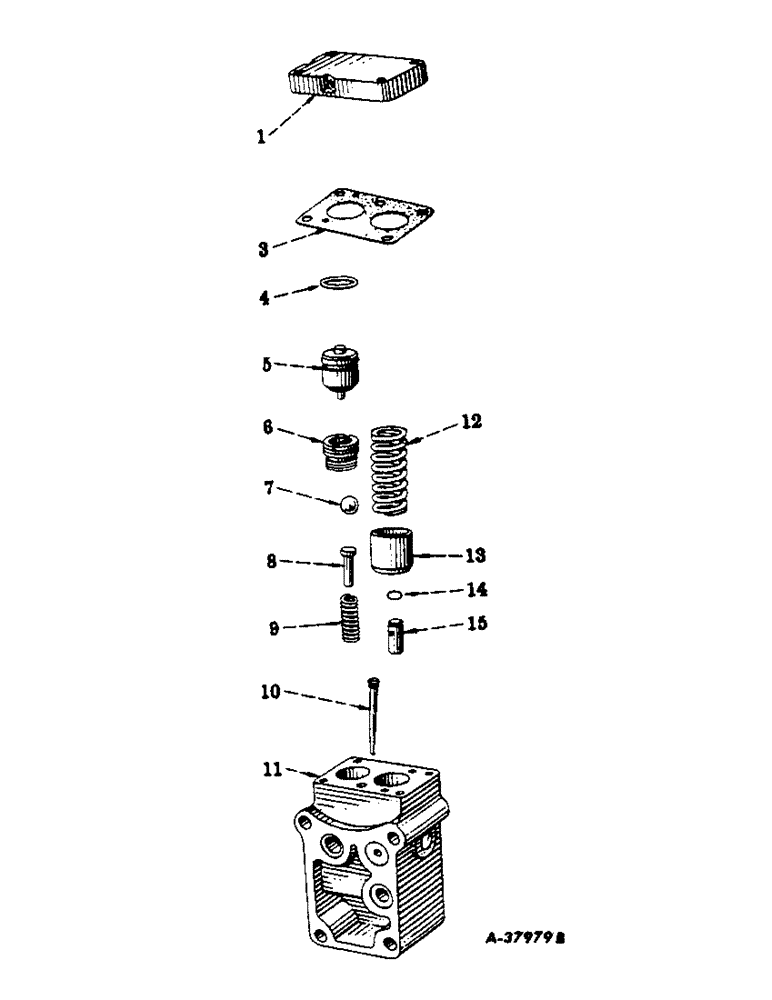

Запчасти Case IH 350 (310) - HYDRAULIC SYSTEM, REGULATOR & SAFETY VALVE (07) - HYDRAULIC SYSTEM

360621R93

VALVE

regulator and safety, assembly

1шт.

1

366666R91

PACKAGE, service, regulator and safety valve housing cover, complete (Used w/housing, (NSS) 360622R1 - See Note A), Composed Of

1шт.

360629R21

COVER

1шт.

360630R1

GASKET

1шт.

366638R91

PISTON

1шт.

352024R2

O-RING,0.551" ID x 0.07" Width

SEAL

1шт.

366665R1

FITTING

SEAT

1шт.

1

360629R21

COVER

regulator and safety valve housing

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

cap, hex-hd., cd-pltd., 5/16-18NC x 1-1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

360630R1

GASKET

regulator and safety valve housing

1шт.

4

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, regulator valve piston

1шт.

5

352940R21

PISTON ASSY.

PISTON, regulator valve, w/retainer, rod and spring (Used w/housing, (NSS) 360622R1 - See Note A - order package, 366650R91)

1шт.

5

366638R91

PISTON

regulator valve, w/retainer, rod and spring (Used w/housing, (NSS) 360622R2 and (NSS) 360622R3 - See Note A)

1шт.

6

360628R1

SEAT

regulator valve (Used w/housing, (NSS) 360622R1 - See Note A - order package, 366650R91)

1шт.

6

366665R1

FITTING

SEAT, regulator valve (Used w/housings, (NSS) 360622R2 and (NSS) 360622R3)

1шт.

7

17018R1

BALL,9/16" Dia

1шт.

8

350084R2

SEAT

RIDER, regulator valve ball

1шт.

9

352026R2

SPRING

regulator valve ball rider

1шт.

10

370766R91

PLUG

AND SCREEN, safety valve orifice

1шт.

11

360622R31

HOUSING, regulator and safety valve, w/two plugs and plug, 362392R2 (When replacing housing, (NSS) 360622R1 - See Note A - package, 366650R91, should also be ordered)

1шт.

362392R2

PLUG

regulator and safety valve housing (Used with housing, (NSS) 360622R1 and (NSS) 360622R2) (Optional with 365857R1)

1шт.

365857R1

PLUG

regulator and safety valve housing (Used with housing, (NSS) 360622R1 and (NSS) 360622R2) (Optional with 362392R2)

1шт.

9410359

PLUG

regulator and safety valve housing (Used with housing, (NSS) 360622R3)

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

RING, seal, valve housing plug (Used only with plug, 9410359)

1шт.

12

360626R2

SPRING

safety valve

1шт.

13

360627R2

RETAINER

safety valve spring

1шт.

14

354854R2

RING

snap, safety valve piston

1шт.

15

361023R1

PISTON

safety valve

1шт.

366650R91

PACKAGE

service, regulator valve piston (Will work for piston, 352940R21 and seat, 360628R1), Composed Of

1шт.

360630R1

GASKET

1шт.

366638R91

PISTON

1шт.

352042R2

SEAL

1шт.

366665R1

FITTING

SEAT

1шт.
