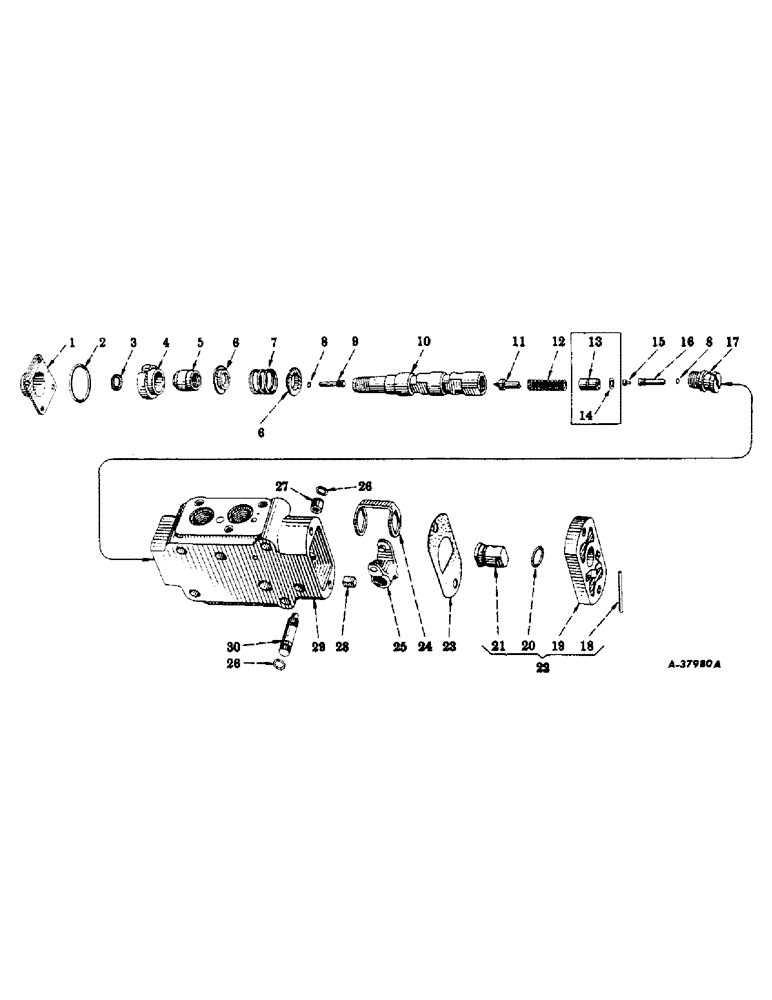

Запчасти Case IH 350 (308) - HYDRAULIC SYSTEM, HYDRA-TOUCH CONTROL VALVE, FOR TRACTORS EQUIPPED W/HYDRA-TOUCH SYSTEM (07) - HYDRAULIC SYSTEM

365981R92

VALVE, hydra-touch control, assembly (Will work for 360590R92) (Used in double and triple valve positions)

1шт.

365985R92

1шт.

VALVE, hydra-touch control, assembly (Used in single valve position) (SERVICE NOTE - this valve is the same as valve, 365981R92, except that the control valve lever shaft and yoke assembly is reversed 180 degrees - this assembly position is not illustrated here)

1шт.

1

360607R1

CAP

control valve

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/4-20NC x 1/2"

4шт.

2

360610R1

O-RING,1.609" ID x 0.139" Width

RING, seal, control valve cap

1шт.

3

360606R1

SPRING,Extension, 0.174" OD x 1.90" L

garter

1шт.

4

360609R1

SLEEVE, garter spring (Optional with 374012R91)

1шт.

4

374012R91

SLEEVE, garter spring (Optional with 360609R1)

1шт.

5

360605R1

RETAINER, unlatching spring, lower

1шт.

6

360595R1

RETAINER, control valve centering spring

2шт.

7

360594R2

SPRING

control valve centering

1шт.

8

361300R1

O-RING,0.145" ID x 0.07" Width

RING, seal, unlatching piston

2шт.

9

361024R1

PISTON

unlatching lower

1шт.

10

VALVE, control, w/seat insert (Not serviced separately - order body - ref. 29)

1шт.

11

360600R1

VALVE

unlatching

1шт.

12

360601R1

SPRING

unlatching valve

1шт.

13

360598R1

GUIDE, unlatching piston (No longer supplied for service - or retainer 360604R2)

1шт.

14

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, unlatching piston guide (Used only with guide - ref. 13)

1шт.

15

362164R11

VENT

PLUG AND SCREEN, control valve orifice

1шт.

16

360596R1

PISTON

unlatching, upper

1шт.

17

360604R2

RETAINER, unlatching spring, upper (Will also work for guide, 360598R1 and ring, 355967R1)

1шт.

18

17165R1

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

19

360617R11

COVER, control valve body, w/clip

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, cap, hex-hd., cd-pltd., 3/8-16NC x 1-1/8" (One used when the tractor is equipped with the die cast control lever lock)

2шт.

20

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, control valve indexing bushing

1шт.

21

360619R1

BUSHING, control valve indexing

1шт.

22

360616R91

COVER

control valve body, assembly, Composed Of

1шт.

360619R1

BUSHING

1шт.

360617R11

COVER

1шт.

17165R1

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING

1шт.

23

360620R1

GASKET

control valve cover

1шт.

24

360611R1

GUIDE

control valve

1шт.

25

360612R11

YOKE, control valve, w/two pins (Optional with 365265R11)

1шт.

25

365265R11

YOKE, control valve, w/two pins (Optional with 360612R11)

1шт.

26

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, control valve lever shaft

2шт.

27

360615R1

BUSHING

control valve lever shaft

1шт.

17164R1

LOCK PIN,3/32" x 7/16", Slotted

PIN, 3/32" x 7/16", Slotted

1шт.

28

360591R1

PLUG, control valve body

1шт.

29

365986R92

BODY, control valve, w/five plugs, retainer, 360604R2, and valve (Body has four ports) (Will work for 360634R92)

1шт.

30

360614R1

SHAFT

control valve lever

1шт.

364534R1

PIN, control valve lever lock, w/integral stud (Illustrated with "Valves And Controls") (For tractors equipped with the die cast control valve lever lock) (Not included with the control valve assembly) (Order package, 366620R91)

1шт.
