Запчасти Case IH 350 (307) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, 16 G.P.M. (07) - HYDRAULIC SYSTEM

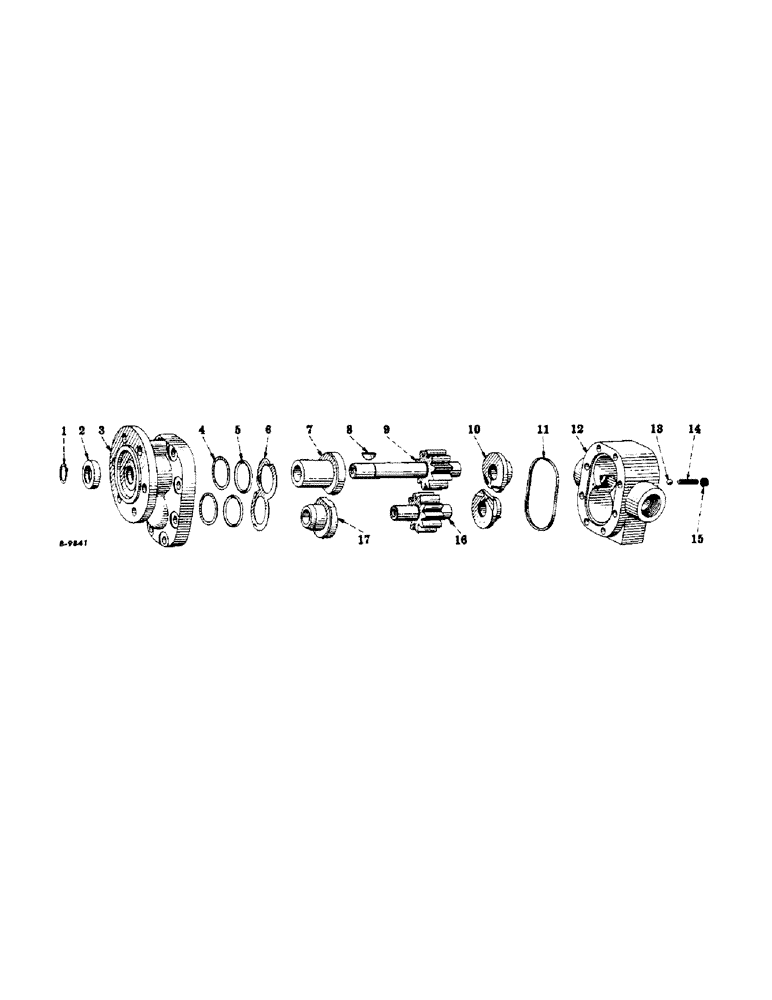

Схема запчастей Case IH 350 - (307) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, 16 G.P.M. (07) - HYDRAULIC SYSTEM
9
13
15
16
4
14
8
1
6
3
10
12
5
7
11
2
17

Артикул

Название

Примечание

Количество

365905R91

PUMP, hydraulic (16 GPM), assembly

1шт.

1

269181R1

SNAP RING,#75, Ext

Ring, Snap, , pump drive shaft #75, Ext

1шт.

2

552102R91

OIL SEAL, pump drive shaft

1шт.

3

COVER, hydraulic pump (Not serviced separately - order pump, assembly)

1шт.

4

365934R1

WASHER, cover bearing seal ring back-up

2шт.

5

364150R1

RING

seal, cover bearing

2шт.

6

365933R1

SPRING, cover bearing

1шт.

7

BEARING, cover (No serviced separately - order pump, assembly)

1шт.

8

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

9

GEAR, drive (Not serviced separately - order pump, assembly)

1шт.

10

BEARING, body (Not serviced separately - order pump, assembly)

2шт.

11

365952R1

RING, seal, pump body

1шт.

12

BODY, pump (Not serviced separately - order pump, assembly)

1шт.

13

16010R1

BALL

cr-stl., grade No. 2, 5/16" dia.

1шт.

14

361715R1

SPRING, ball check

1шт.

15

361716R1

PLUG, ball check

1шт.

16

GEAR, driven (Not serviced separately - order pump, assembly)

1шт.

17

BEARING, cover (Not serviced separately - order pump, assembly)

1шт.

Выбрано товаров: 18
